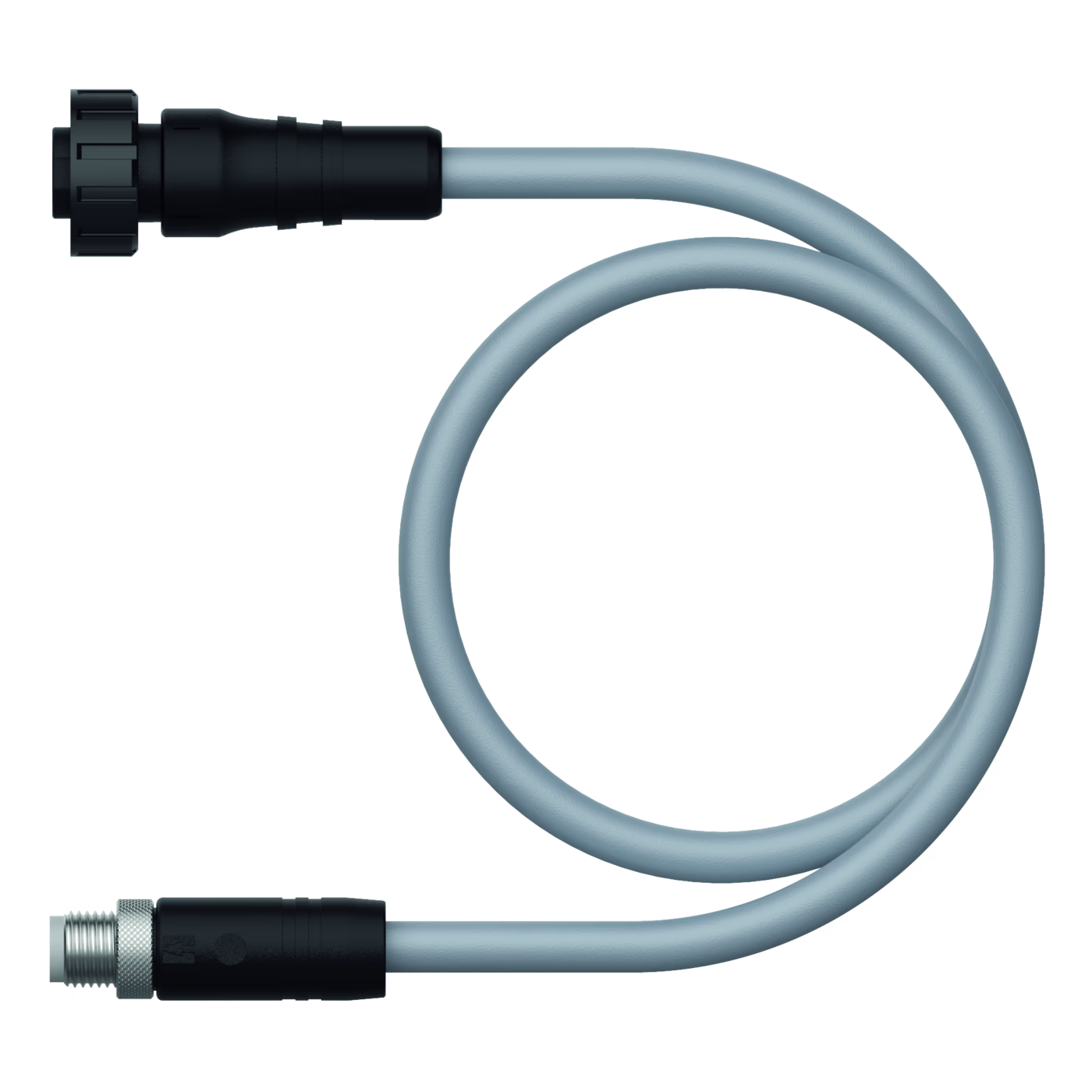

Supply Cable – M12 Power RKM50.2-0.3-RSP56PLB/TXG
Supply Cable – M12 Power
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Application | Power |
| Cable color | Gray |
| Cable diameter (mm) | 8 |
| Cable length (m) | 0.3 |
| Cable quality | PUR |
| Connector A | 7/8″-16 UN, Female, Straight |
| Connector B | L-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 9 |
| Design | Extension Cable |
| Number of Conductors | 5 |
| Number of pins | 5 |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Core cross section mm? | 1.5 |
