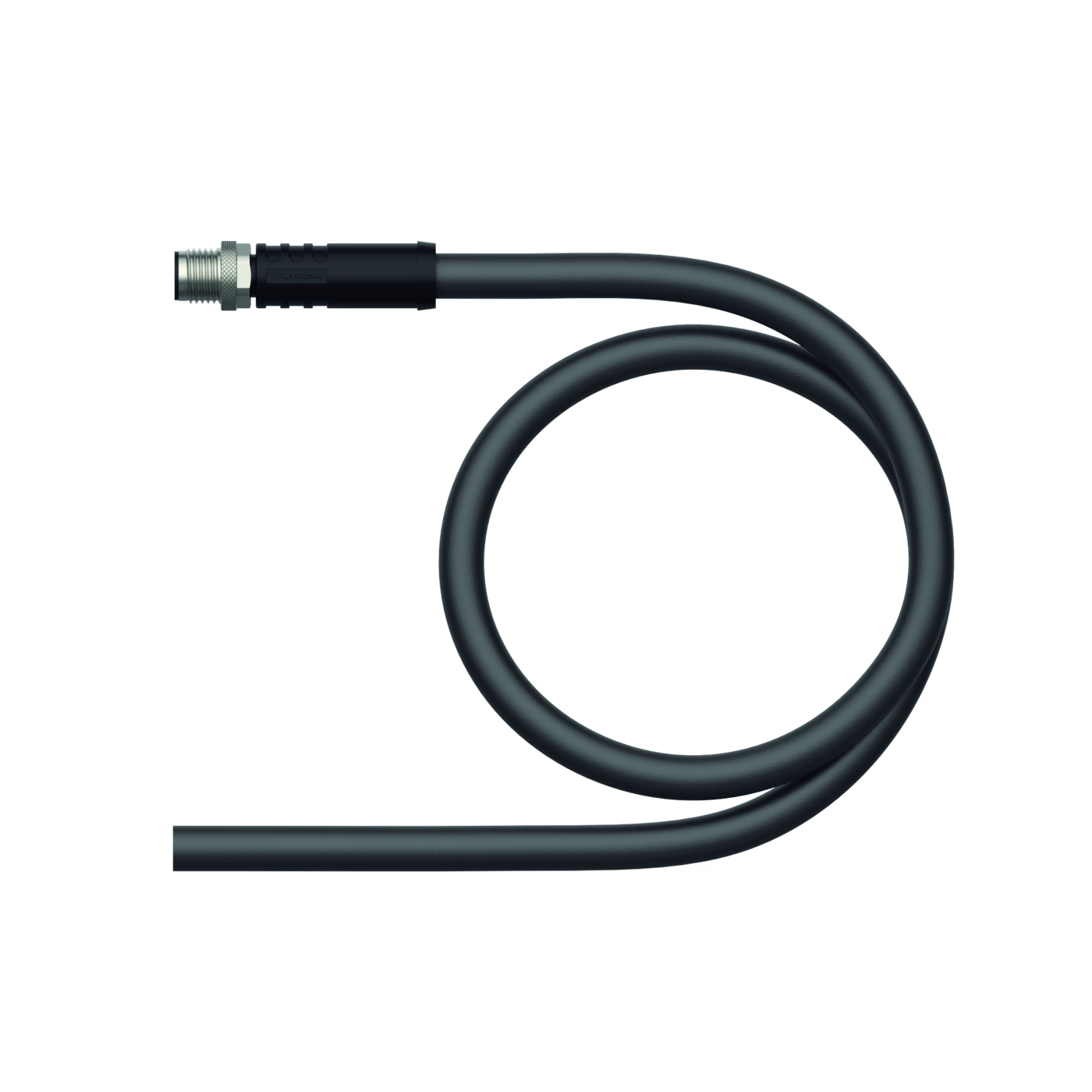

Supply Cable – M12 Power RSP46PSA-0.5/TXL
Supply Cable – M12 Power
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Power |
| Cable color | Black |
| Cable length (m) | 0.5 |
| Cable quality | PUR |
| Connector A | M12×1, Male, S-coded, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 12 |
| Design | Connection Cable |
| Number of Conductors | 4 |
| Number of pins | 3+PE |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Voltage output | 600 |
| Cable diameter (mm) | 7.2 |
| Core cross section mm? | 1.5 |
