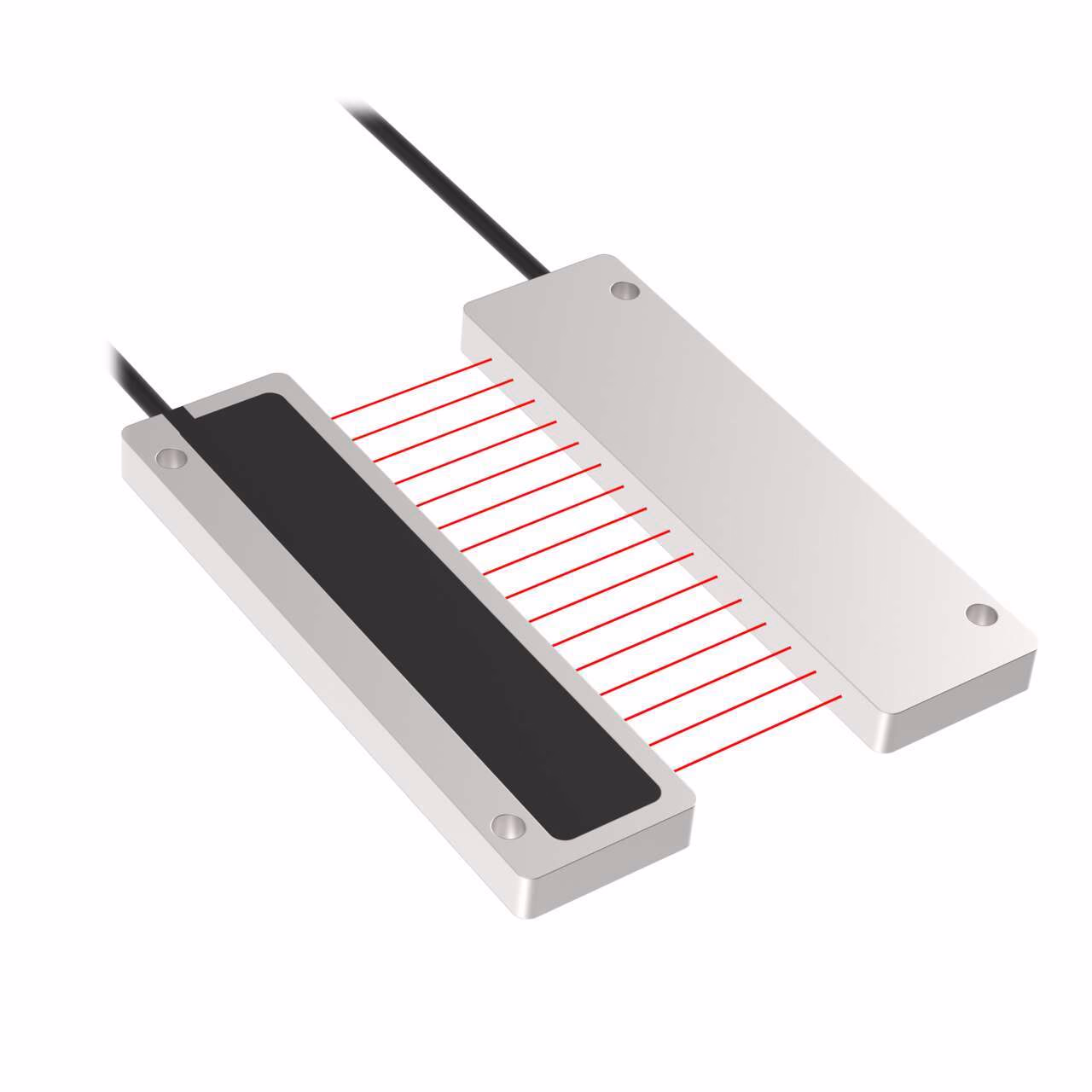

Tight Bend Radius Fiber Optics – Banner – PIRS1X166UMPM2.2
Plastic Fiber, Opposed Mode
Core Dia.: 16 x 0.25 mm; Fiber Length 2 m
Rectangle, Sideview
Free cut
| Array Length (mm) | 57 |
|---|---|
| Beam Exit | Right Angle |
| Fiber Sensing End Size | 19.1 x 69.9 mm |
| Fiber Sensing End Size - Mounting Area | 19.1 x 69.9 mm |
| Fiber Sensing End Tip | Array |
| Max Distance: DF-G2 (mm) | 621 |
| Max Range: DF-G3 (mm) | >1m – <=3m |
| Minimum Repeat Bending Endurance | 10000 |
| Sensing End Material (Specific) | Polyethylene |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Array |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Array |
| Core cross section mm? | 5 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Feature | Small Object Detection |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 2 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 64 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 16 x 0.3 |
| Max Distance: DF-G1 (mm) | 384 |
| Max Distance: DF-G3 (mm) | 2980 |
| Measured Max Distance (mm) | 384 |
Description
Plastic Fiber, Opposed Mode
Core Dia.: 16 x 0.25 mm; Fiber Length 2 m
Rectangle, Sideview
Free cut
