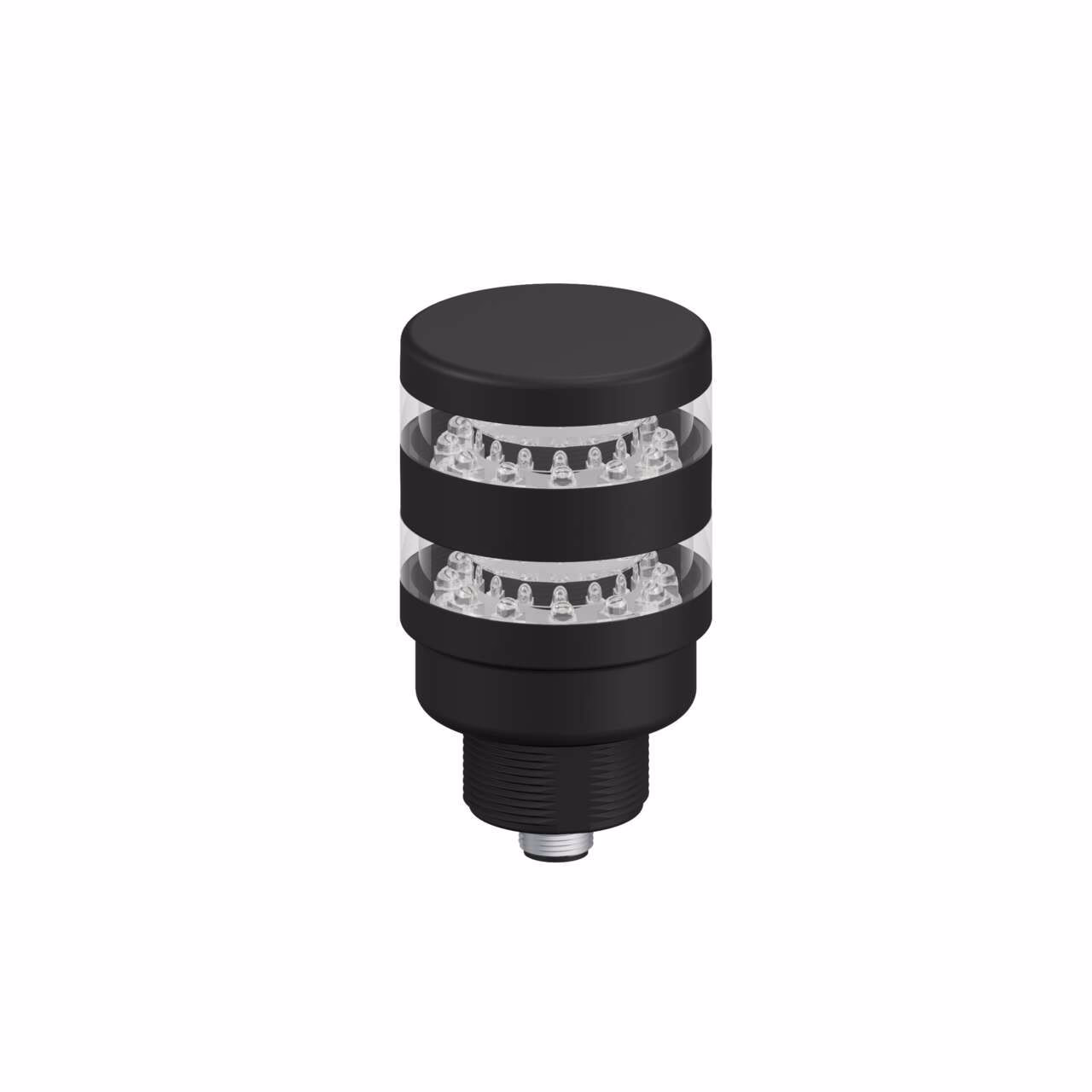

TL50 Core Series 50 mm LED Tower Light – Banner – TL50BLG2R2Q
TL50 Beacon Tower Light: 2-Color Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: Green flash Red flash
4-pin M12 Integral QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Flashing Only |
| Animation Option 2 | Flashing Only |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 626 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 52.0 |
| Lumens Color 2 | 24.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4.0 |
| Operating voltage | 12-30 V dc / 24 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 99.4 |
| Port | M12 |
| Power Good Output | DC or AC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Touchscreen | No |
| Number of Tower Light Segments | 2.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 125.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 1.0 |
Description
TL50 Beacon Tower Light: 2-Color Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: Green flash Red flash
4-pin M12 Integral QD
