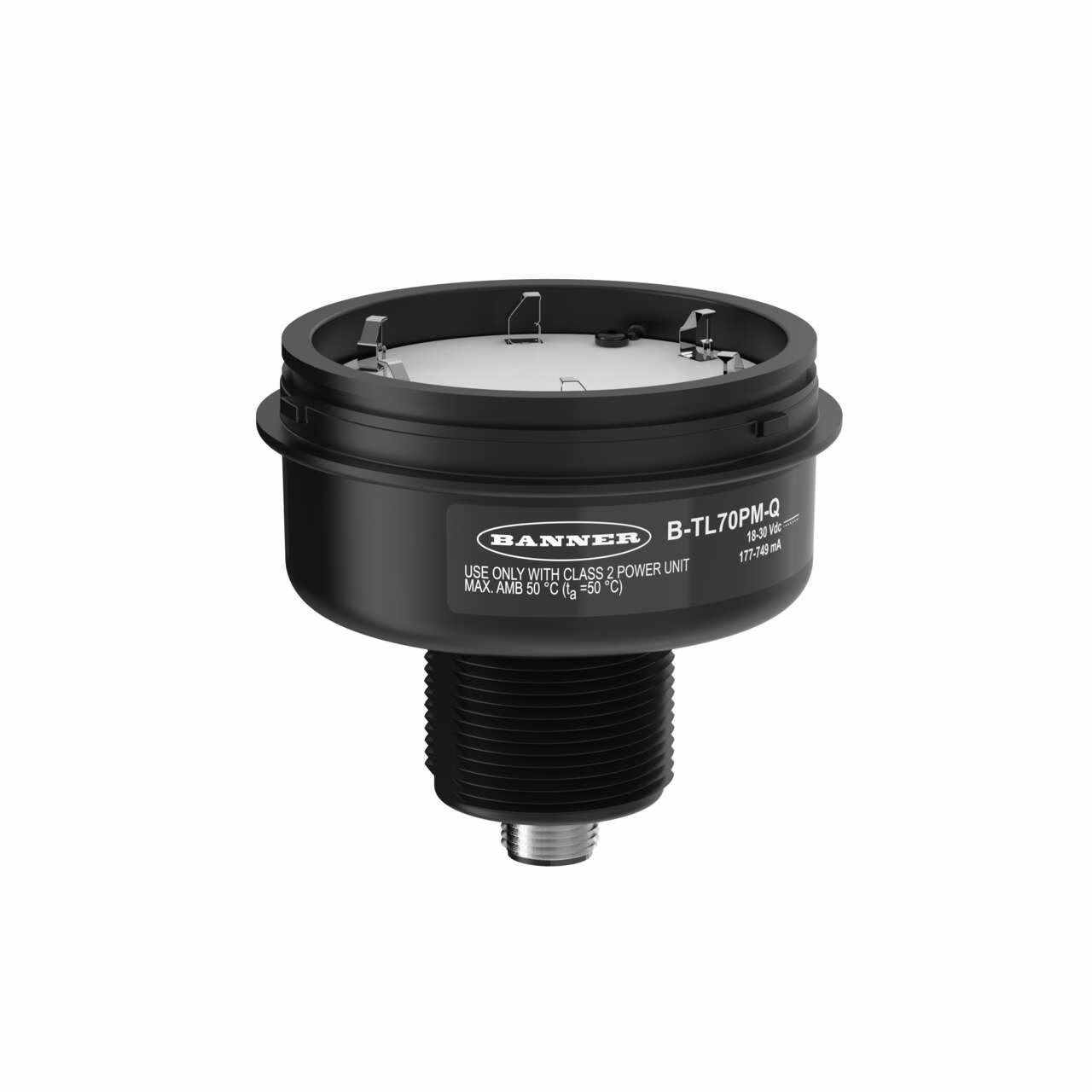

TL70 Pro Series 70mm Tower Lights – Banner – B-TL70PM-Q
TL70 Pro with Modbus/RS-485 Base Module
Voltage: 18-30 V dc; Environmental Rating: IP65
Integral 4-pin M12 A-Code
Black Housing; Use with SG-TL70P-L and SG-TL70P-A segments
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Input Type | Communication Protocol |
| PICK-IQ (Modbus RTU) | Yes |
| Primary Housing Color | Black |
| Product Type | P |
| Color Input Control | Communication Protocol |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Segment – Base |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Base Module |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Modbus RTU | Yes |
| Mounting | M30 x 1.5 |
| Non-Illuminated | Yes |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 47.5 |
| Port | M12 |
| Power Good Output | DC |
| PROFINET | Yes |
| Programmable | Yes |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 70 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 20.0 |
| Options Available | Modbus |
Description
TL70 Pro with Modbus/RS-485 Base Module
Voltage: 18-30 V dc; Environmental Rating: IP65
Integral 4-pin M12 A-Code
Black Housing; Use with SG-TL70P-L and SG-TL70P-A segments
