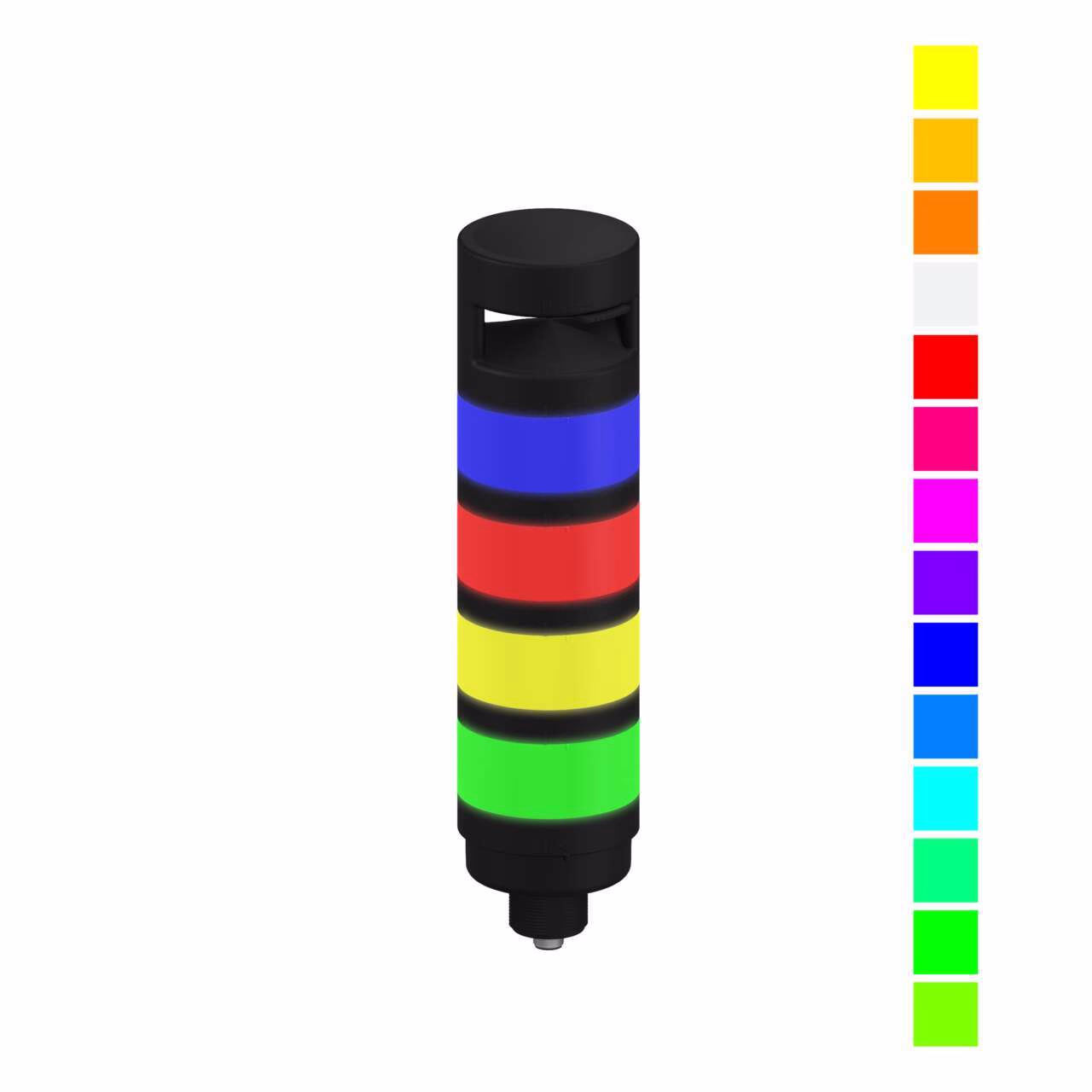

TL70 Pro Series 70mm Tower Lights – Banner – TL70P4AKQ
TL70 Pro Tower Light with IO-Link; 4 Lighted Segments
Standard Audible; 18-30 V dc; IP65
Black Housing; Colors: Multicolor
4-pin M12 Integral QD
| Audible Alarm Type | Multitone |
|---|---|
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | Yes |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | IO-Link Controlled |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Environmental Rating | IP65 |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Modular Tower Light |
| Max Audible Intensity (dB at 1m) | 92.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 84.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 4 |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 318.3 |
| Port | M12 |
| Power Good Output | DC |
| PROFINET | Yes |
| Programmable | Yes |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Switching frequency (kHz) | 2.6 |
| Touchscreen | No |
| Number of Tower Light Segments | 5.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 70 |
| Max Current Color (mA) | 420.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 20.0 |
| Max Current - Audible Alarm (mA) | 30.0 |
| Options Available | Modbus |
Description
TL70 Pro Tower Light with IO-Link; 4 Lighted Segments
Standard Audible; 18-30 V dc; IP65
Black Housing; Colors: Multicolor
4-pin M12 Integral QD
