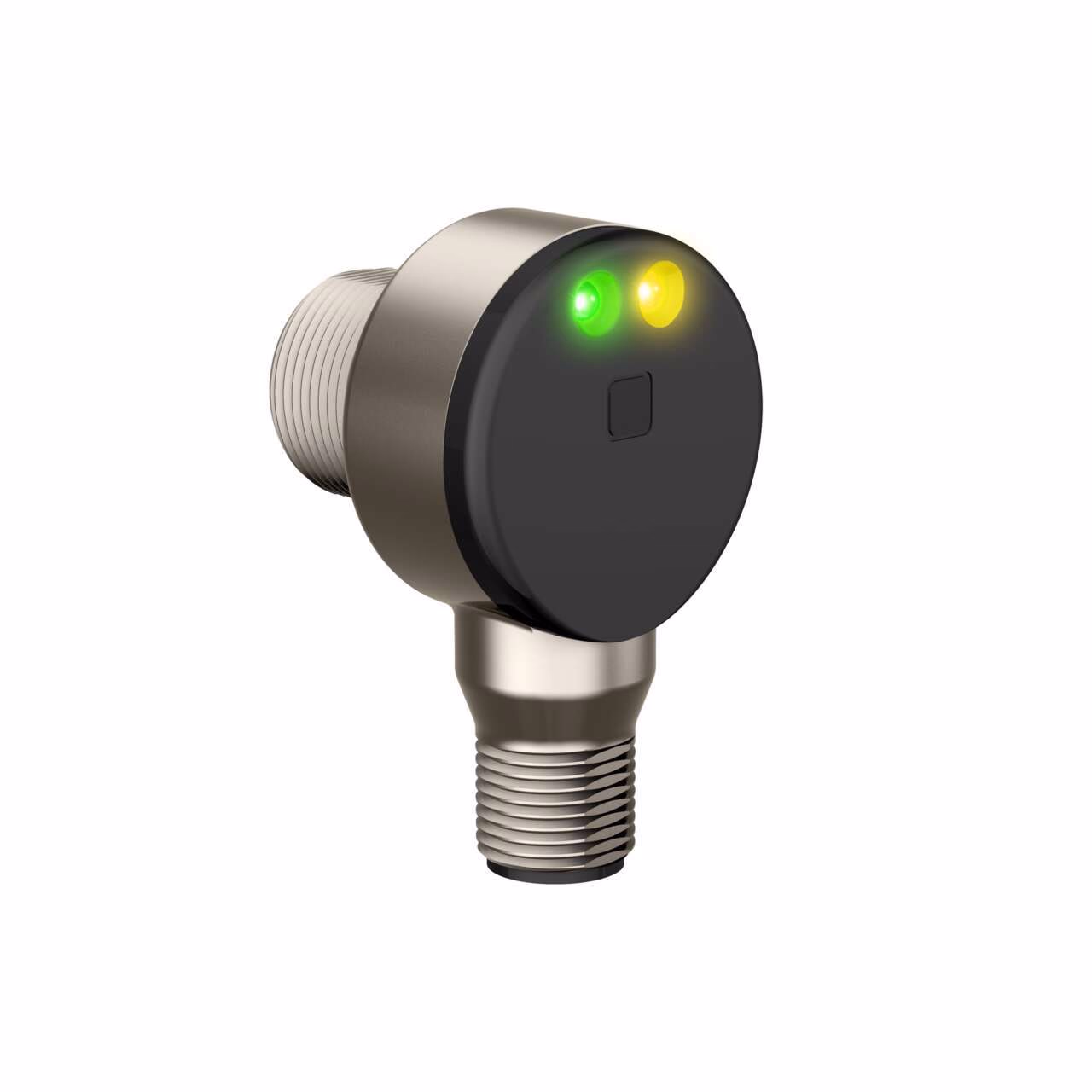

TM18 Series Heavy-Duty Metal Right Angle Sensors – Banner – TM18AP6FF200Q8
EZ BEAM TM18: Fixed Field Background Suppression
Range: 200 mm; Input: 10-30 V dc
Outputs: PNP Light Operate
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Background Suppression (Fixed) |
| DeviceNet | No |
| Feature | Quick Disconnect, Washdown Rated |
| Homerun Exit Location | 3 ON/1.5 OFF |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Receptacle housing material B | Zinc Die-Cast with Nickel-Plating |
| Sensing Beam | Visible Red LED |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 200.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
Description
EZ BEAM TM18: Fixed Field Background Suppression
Range: 200 mm; Input: 10-30 V dc
Outputs: PNP Light Operate
4-pin M12 Integral QD
