Type 2 Series Emitters and Receivers – Banner – LS2HDVAR30-450Q8

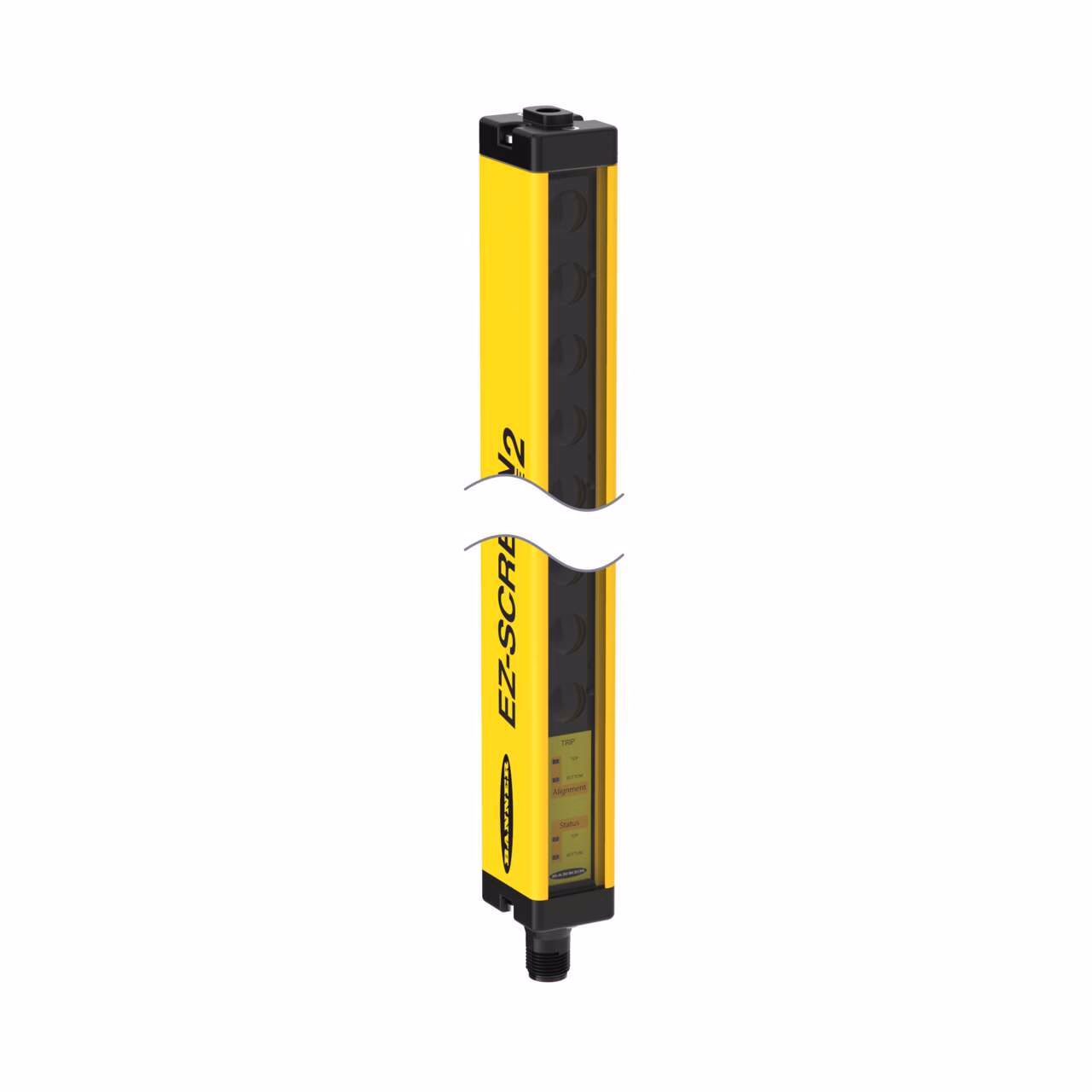

EZ-SCREEN Type 2 Heavy Duty V-series; Receiver
Resolution: 30 mm; Range: 4 m (13 ft)
Defined Area: 450 mm (17.7 in); Housing: Yellow
8-pin M12 Integral QD; 2x OSSD; Reset/Test/EDM; Trip Output
| Auxiliary Output | No |
|---|---|
| Max Operating Range (m) | <=4 |
| Resolution (mm) | 30 |
| SISTEMA | PFHd = 2.2 x 10-7 |
| Test Input | Yes |
| Connector type | M12 |
| Effective Aperture Angle | Type 2 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | No |
| Fault Output | No |
| Fixed Blanking | No |
| Functional safety (SIL/PL) | SIL2; CL2 |
| Housing Finish | Yellow Polyester |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Low Profile | No |
| Nominal voltage | 24 V dc at 0.5 A each |
| Number of channels | 0.2 – 4 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| Number of Pins (Receiver/Emitter) | 8 |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Resolution incremental (ppr) | No |
| Response Time | 14.0 |
| Safety Level | Type 2 |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 90 mA max. |
| System Type | Receiver |
| Trip/Latch Output | Trip |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 515.0 |
| Defined Area Height Range (mm) | >350 – <=650 |
| Defined Area Height (mm) | 450.0 |
| Dimensions WxD (mm) | 33.7 x 34.8 |
Description
EZ-SCREEN Type 2 Heavy Duty V-series; Receiver
Resolution: 30 mm; Range: 4 m (13 ft)
Defined Area: 450 mm (17.7 in); Housing: Yellow
8-pin M12 Integral QD; 2x OSSD; Reset/Test/EDM; Trip Output
