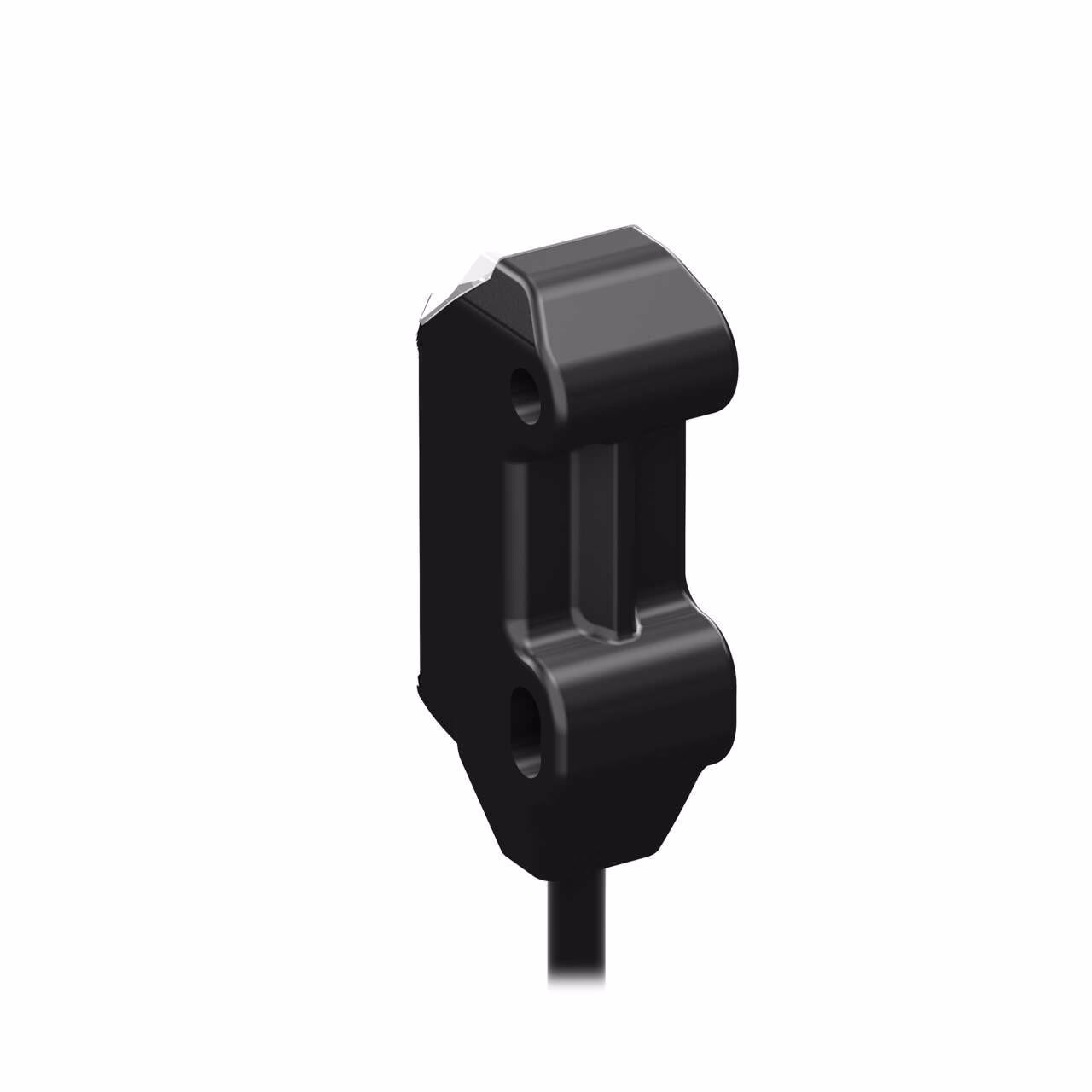

VS1 Series Mini Self-Contained Convergent-Mode Sensor – Banner – VS1AN5C10
VS1 Series: Infrared Convergent
Focal Point: 10 mm; Input: 10-30 V dc
Output: Light Operate – NPN
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Convergent |
| DeviceNet | No |
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| Homerun Exit Location | 1 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Power Good Output | DC |
| Protection class shaft | IP54 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 865 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Max Sensing Distance (mm) | 10 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 80% @ 50°C |
Description
VS1 Series: Infrared Convergent
Focal Point: 10 mm; Input: 10-30 V dc
Output: Light Operate – NPN
2 m (6.5 ft) Cable
