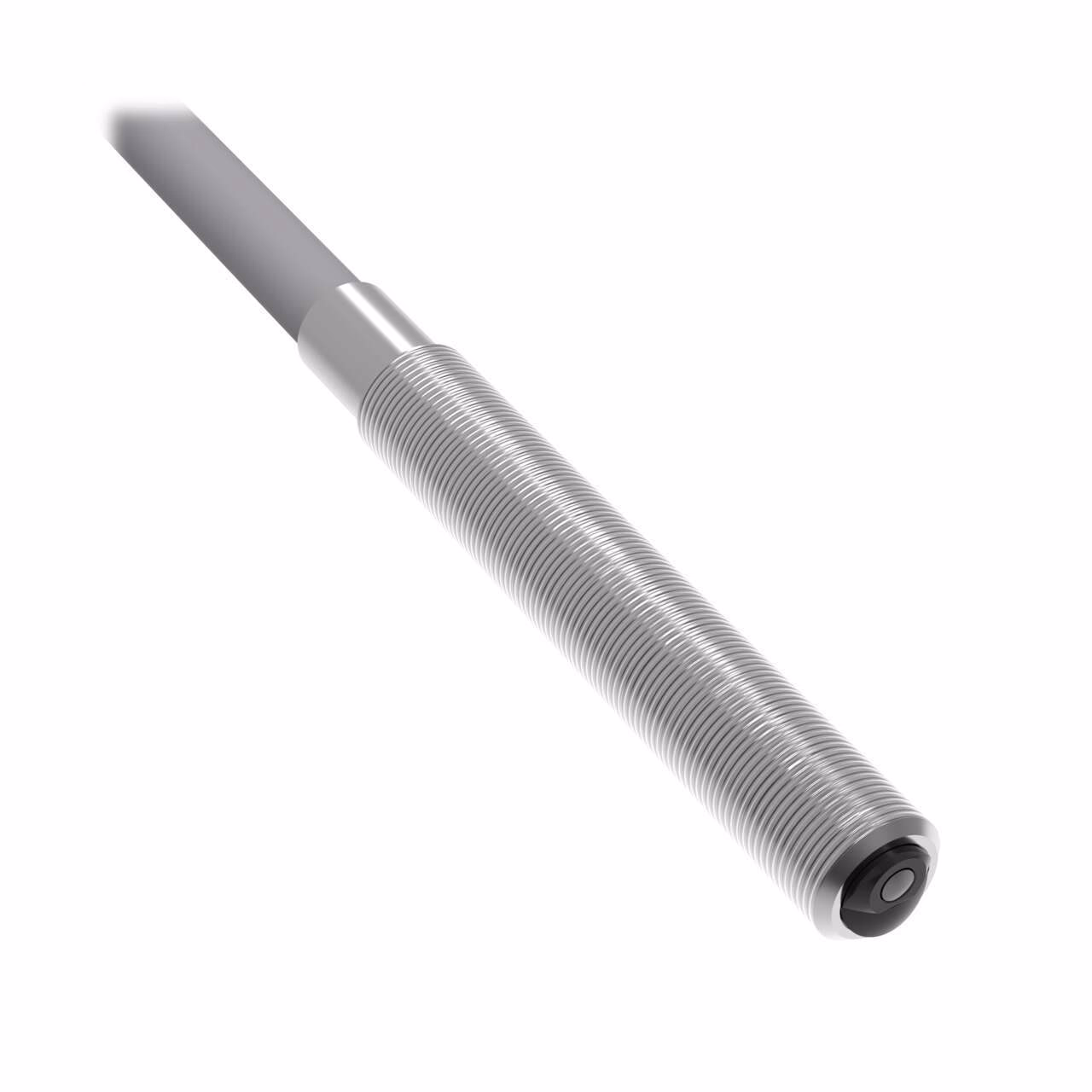

VSM-2 Series Micro Sensor – Banner – VSM-2M5AND100-2M
VSM-2 Series: 5 mm Barrel Diffuse
Range: 100 mm; Input 10-30 V dc
Output: 1 NPN; LO (Light Operate)
2 m (6.5 ft) Cable
Comes with (2) M5 nuts and (2) lock washers
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Pin / Wire Count | 4.0 |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| Feature | Chemical Resistant |
| Homerun Exit Location | 0.5 |
| Housing Style | Barrel – Threaded |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Stainless Steel |
| Sensing Beam | Visible Red LED |
| Slot width (mm) | 2 |
| Small Visible Spot | LED |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -25.0 |
| Delay at Power-up (ms) | 20 |
| Max Sensing Distance (mm) | 100.0 |
| Max Op. Temp. (C) | 65 |
| Barrel Diameter (mm) | 5.0 |
| Repeatability (µs) | 1000 |
Description
VSM-2 Series: 5 mm Barrel Diffuse
Range: 100 mm; Input 10-30 V dc
Output: 1 NPN; LO (Light Operate)
2 m (6.5 ft) Cable
Comes with (2) M5 nuts and (2) lock washers
