VSM-2 Series Micro Sensor – Banner – VSM-2M5NAEL-Q3

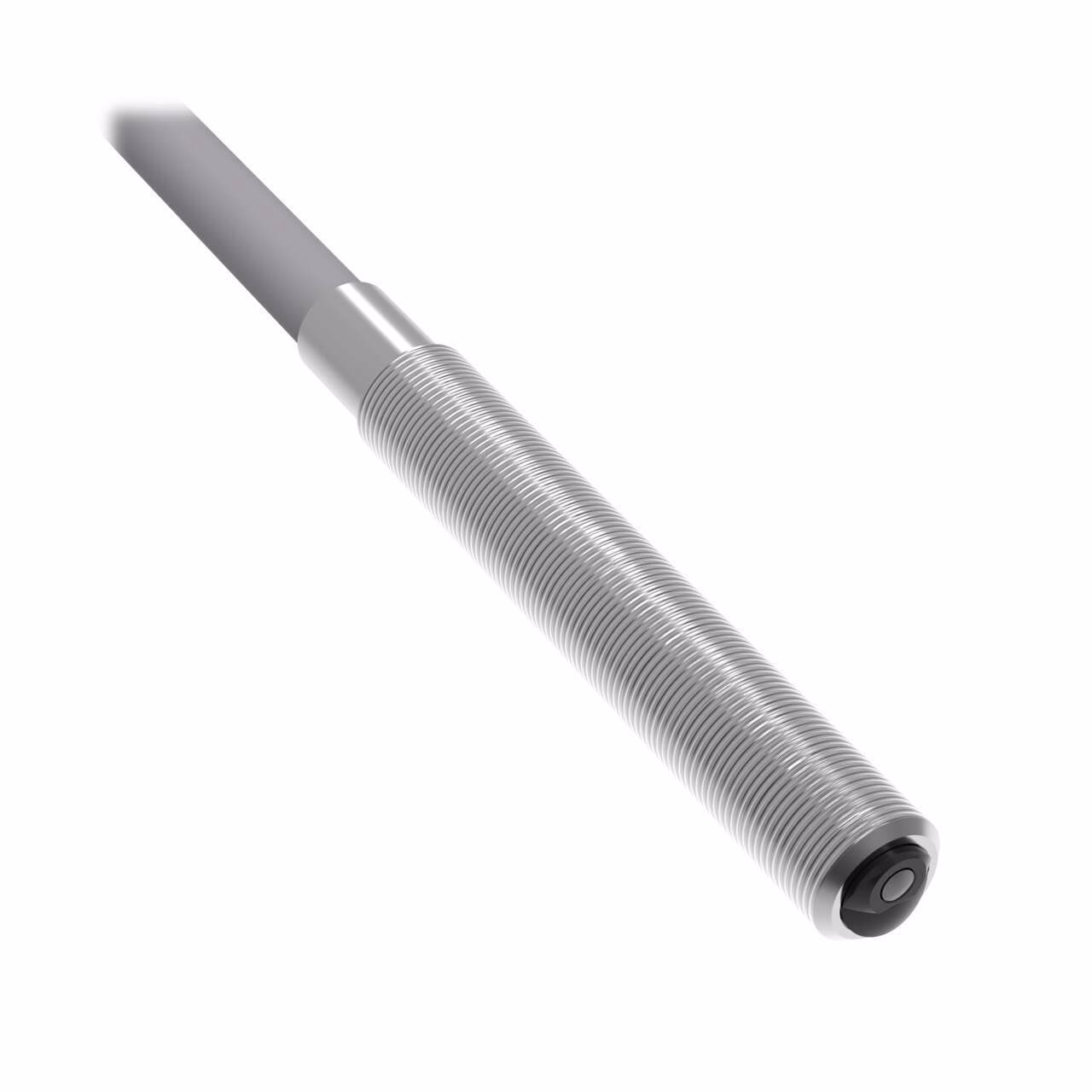

VSM-2 Series: 5 mm Barrel Emitter
Range: 500 mm; Input 10-30 V dc
Output: No Output
3-pin M8 Pigtail
Comes with (2) M5 nuts and (2) lock washers
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| Feature | Chemical Resistant, Quick Disconnect |
| Homerun Exit Location | 0.5 |
| Housing Style | Barrel – Threaded |
| Indicator | LEDs |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Stainless Steel |
| Sensing Beam | Visible Red LED |
| Slot width (mm) | 0.15 |
| Small Visible Spot | LED |
| Min Op. Temperature (C) | -25.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 20 |
| Max Sensing Distance (mm) | 500.0 |
| Max Op. Temp. (C) | 65 |
| Barrel Diameter (mm) | 5.0 |
| Repeatability (µs) | 1000 |
Description
VSM-2 Series: 5 mm Barrel Emitter
Range: 500 mm; Input 10-30 V dc
Output: No Output
3-pin M8 Pigtail
Comes with (2) M5 nuts and (2) lock washers
