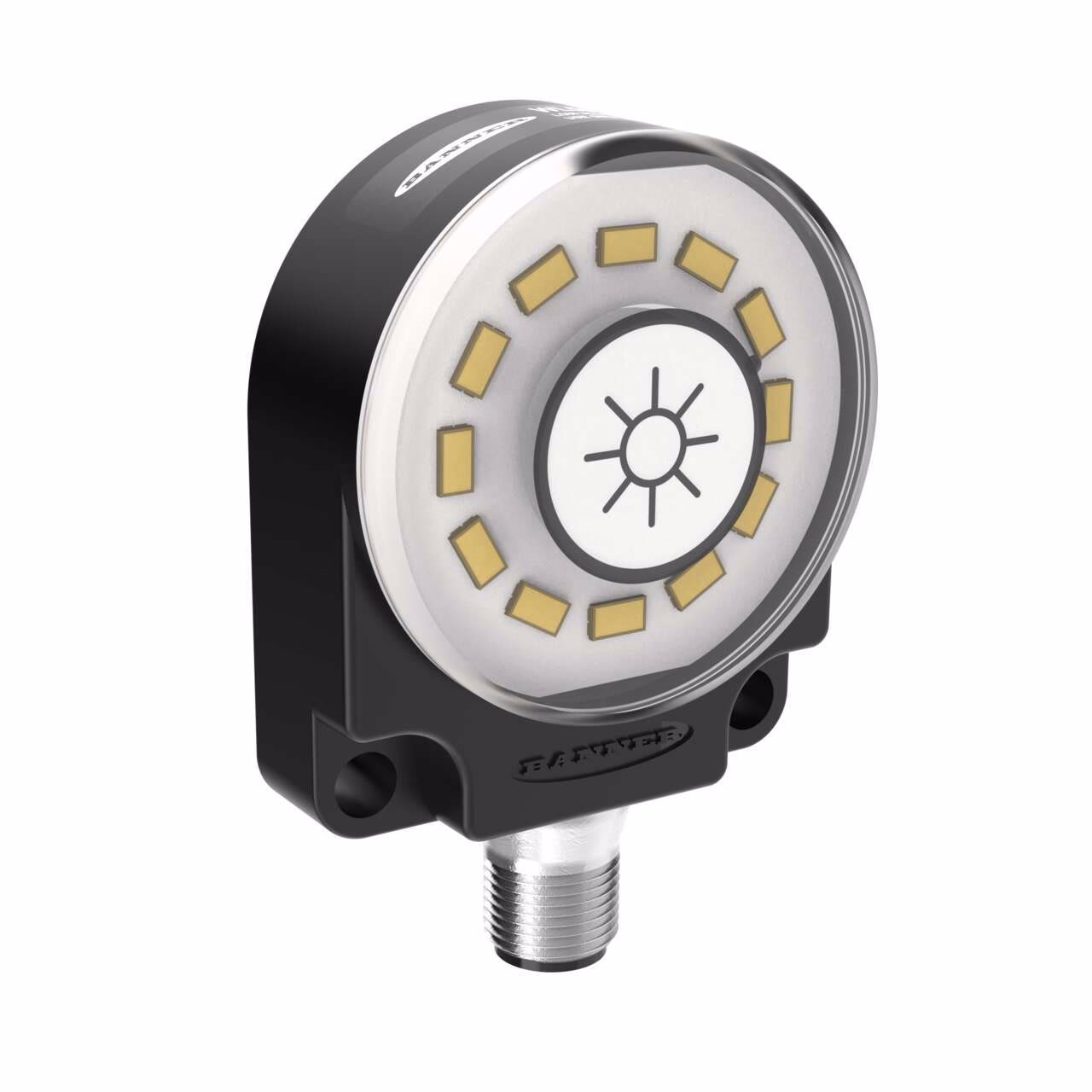

WL50 LED Work Light – Banner – WL50F-3TWQ
WL50-3 Work Light, Touch, PWM Dimming
Voltage: 12-30 V dc; IP65/67/69K
Color: Daylight White: 5K
Surface Mount Base, 4-pin M12 Integral QD
| Color Technology | Standard LED |
|---|---|
| Connection | Integral QD |
| Dimming Option | PWM and Capacitive Touch |
| Feature: Audible | No |
| Illumination Switch Function | O=OFF; I=ON, PWM 3 Wire |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Button Operation | Latching |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| Environmental Rating | IP65; IP67; IP69K |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Flat Mount – Flat Window |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 300.0 |
| Mounting | No Thread |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 76.0 x 50.0 x 23.1 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 250.0 |
| Storage Temp (C) | -40 to 70 |
Description
WL50-3 Work Light, Touch, PWM Dimming
Voltage: 12-30 V dc; IP65/67/69K
Color: Daylight White: 5K
Surface Mount Base, 4-pin M12 Integral QD
