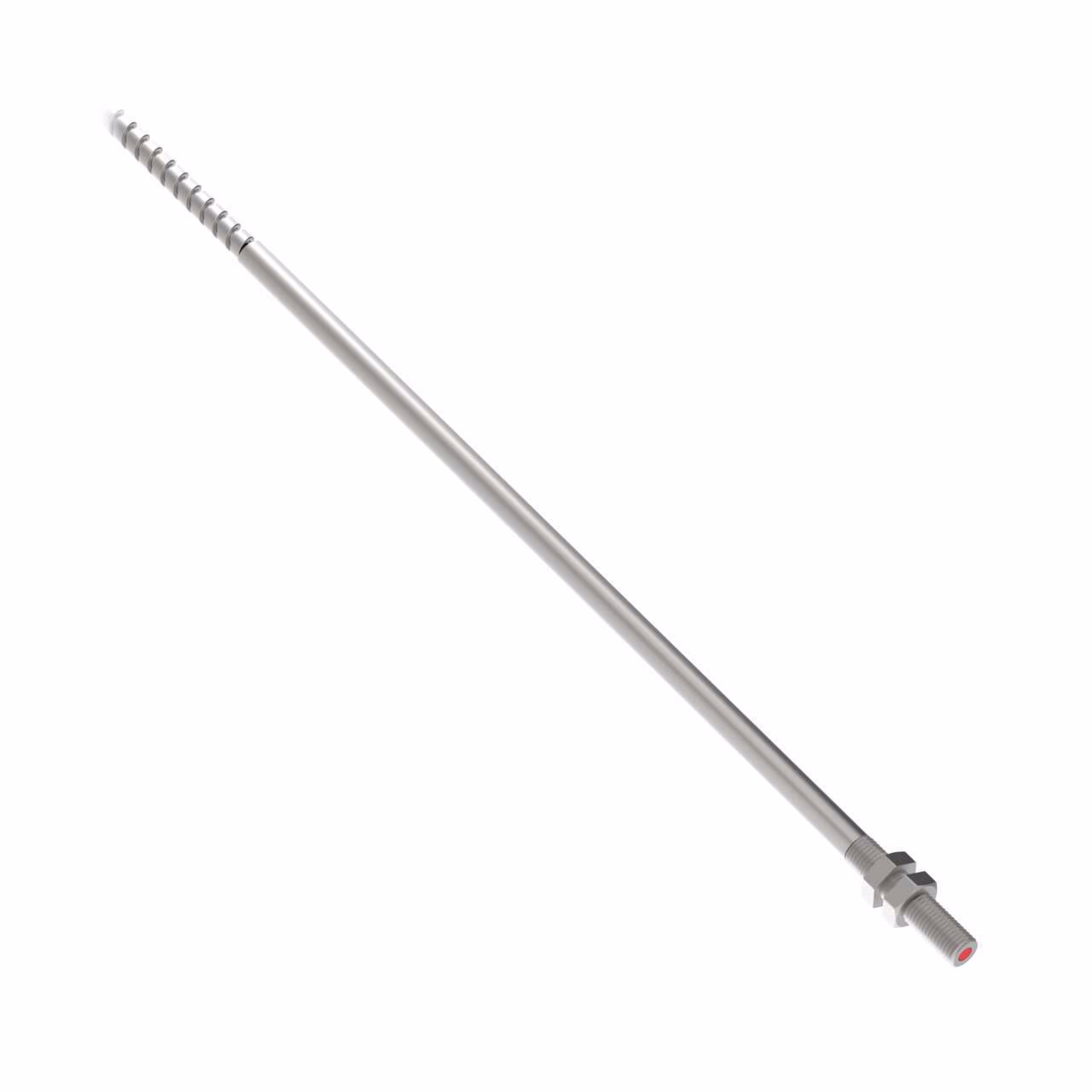

High Temperature Fiber Optics – Banner – IT2.56.6SM8MMT
Opposed Mode Individual Glass Fiber 2 m long
3.96 mm dia. Bundle
Stainless Steel Sheath
Mounting Tube and Threaded sensing tip
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | 8.0 x 1.3 mm |
| Fiber Sensing End Size - Mounting Area | 8.0 x 1.3 mm |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | No Data |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Thread |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Reflective |
| Core cross section mm? | 25.0 |
| Coupler/converter/switch | Glass Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 10668.0 |
| Max Temp (C) | 249.0 |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 4 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Opposed Mode Individual Glass Fiber 2 m long
3.96 mm dia. Bundle
Stainless Steel Sheath
Mounting Tube and Threaded sensing tip
