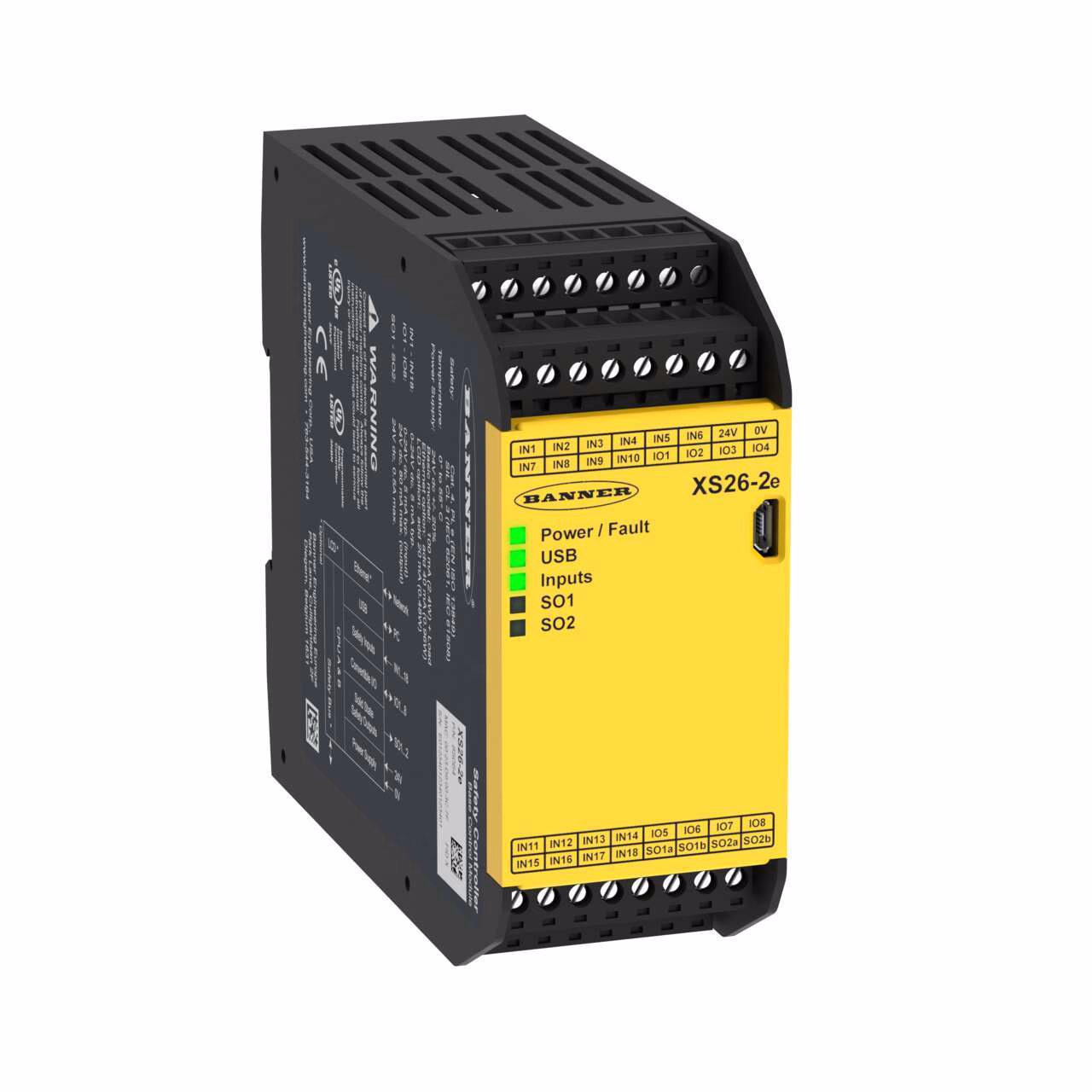

XS26 Expandable Safety Controllers – Banner – XS26-2E
XS26-2E Safety Controller: Expandable; 26 Input
2 Pairs of PNP Safety Outputs (0.5 A each); No Display; Ethernet
USB; 8 Convertible Inputs; Removable Screw Terminals
24 V dc; 140 mA
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 55.0 |
| PCCC | Yes |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 1.05 x 10-9 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Controller |
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V dc |
| PL Rating | e |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP20 |
| Recovery Time | 250 (typical), 400 (max) |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Response Time (ms) | See Software Configuration Summary |
| Power Consumption | 0.14 A (controller only); 3.6 A (bus load) |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Light Curtains/Scanner without EDM Input | Yes |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox |
| Removable Terminals | Yes |
| Splittable Safe Output | Yes |
| Terminal Type | Screw |
| Gate Switch (NC/NO) Input | Yes |
| Gate Switch (OSSD) Input | Yes |
| Gate Switch (NC/NC) Input | Yes |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 45 x 129 |
| Safety Module Type | Base Controller |
| Output Configuration | 2 OSSD Pairs |
| Independently Controlled Safe Outputs | 4.0 |
| Number of Safe Inputs | 26.0 |
| Input Configuration | Configurable |
| Safety Mat | Yes |
| Motor Speed | No |
| Input Operation | Simultaneous or Concurrent |
| E-Stops/Rope Pulls | Yes |
| Muting | Yes |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 15 – 30 V dc |
| Non Safe Output Configuration | Up to 11 PNP |
| Network View and Configure | Yes |
| Safety Input - Reset | 5-50 mA @ 24 V dc |
| Input Resistance | 150 Ω max. per lead |
| Safety Input - Single Channel | 5-50 mA @ 24 V dc |
| Two-Hand Controls | Yes |
| THC Rating | IIIC |
| Number of Convertible Inputs | 8.0 |
| EtherCAT | No |
| Options Available | Backlight, Modbus |
Description
XS26-2E Safety Controller: Expandable; 26 Input
2 Pairs of PNP Safety Outputs (0.5 A each); No Display; Ethernet
USB; 8 Convertible Inputs; Removable Screw Terminals
24 V dc; 140 mA
