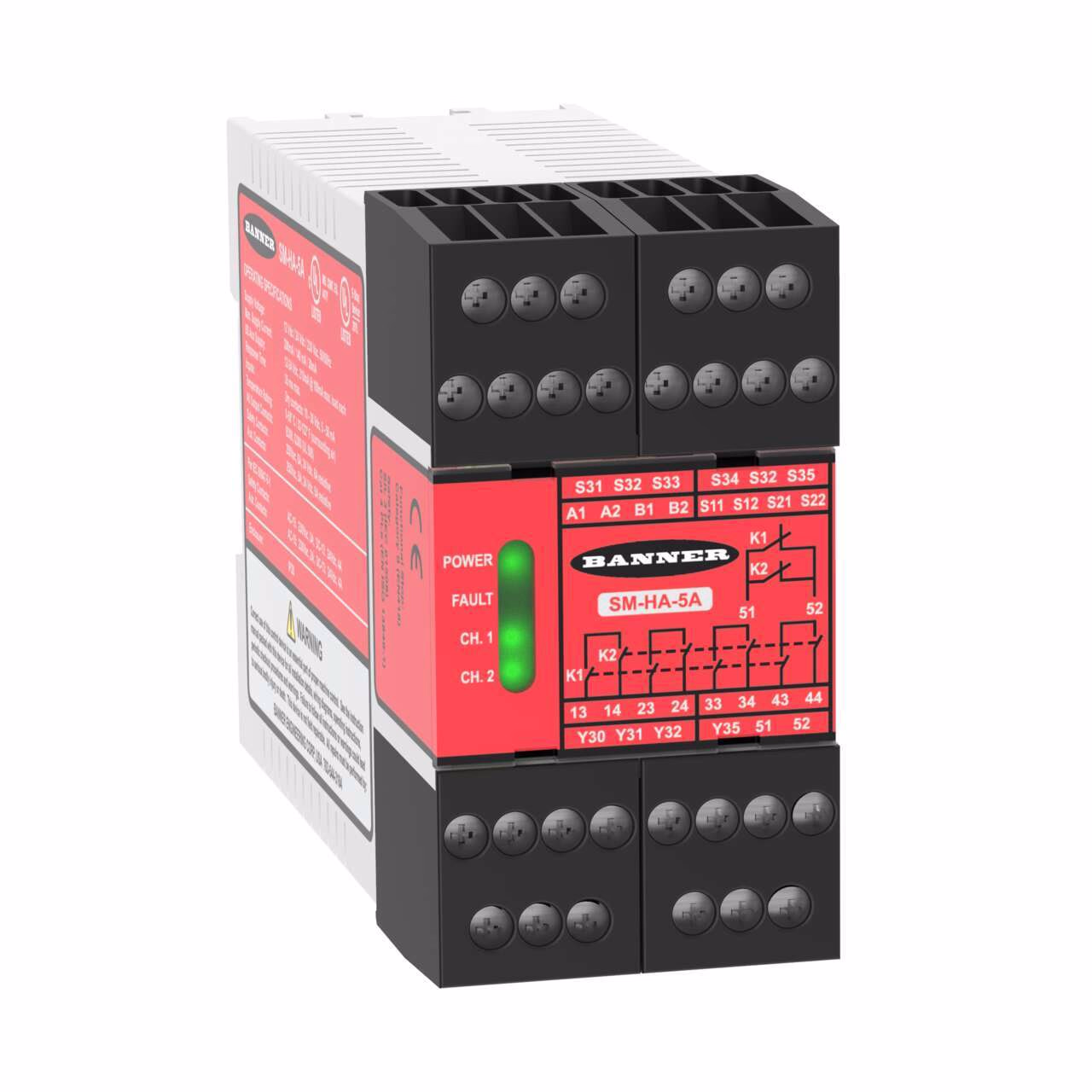

SM Series Pressure Sensitive Safety Mat Relays – Banner – SM-HA-5A
Safety Relay Module for Safety Mats
Supply Voltage: 230 V ac or 12-24 V dc
Safety Input: 4-Wire Safety Mat
Safety Outputs: 4 NO, 6 A; Aux Output: 1 NC, 5 A and 2 Solid-State, 100 mA

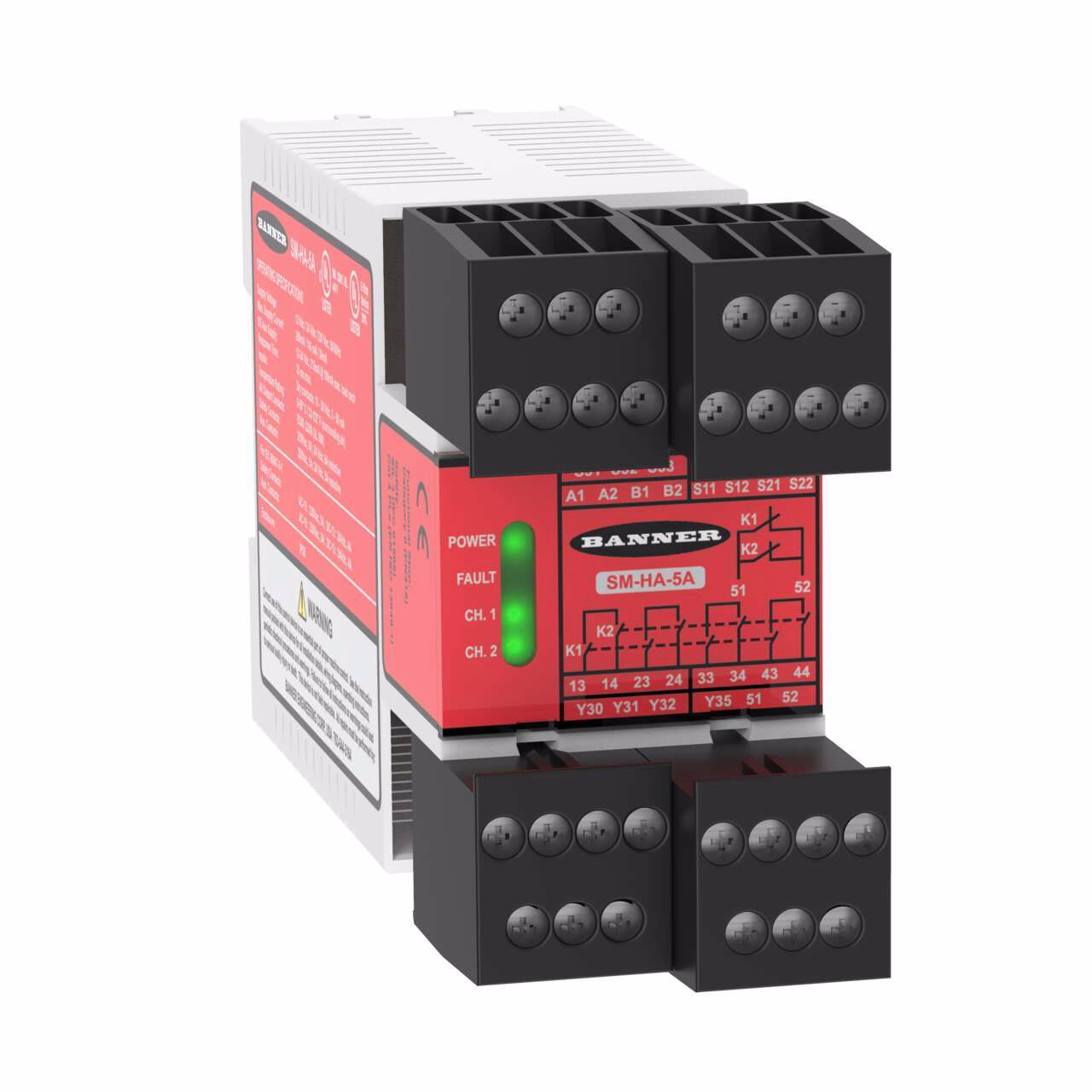

Terminal Block: Removable; Width: 45 mm
Self-Checking Circuitry, Auto/Manual Reset, EDM
| Dimension (H x W x D in mm) | 84 x 45 x 118 |
|---|---|
| E-Stops/Rope Pulls | No |
| Electrical Life (Cycles @ VA) | 150,000 @ 1500 VA |
| Expandable | No |
| Gate Switch (NC/NC) Input | No |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| In-Series Diagnostics | No |
| Independently Controlled Safe Outputs | 1 |
| Input Configuration | 2 NC |
| Input Operation | 4-Wire |
| Input Resistance | 250 Ω max. per channel |
| LCD Display | No |
| Light Curtains/Scanner without EDM Input | No |
| Max Operating Temperature (C) | 50 |
| Mechanical Life (operations in millions) | 20 |
| Motor Speed | No |
| Muting | No |
| Non Safe Output Configuration | 1 NC, 2 PNP |
| Non Safe Output Rating | Relay – 5 A |
| Number of Safe Inputs | 1 |
| Output Configuration | 4 NO |
| PCCC | No |
| Power Consumption | 4 W / 7 VA |
| Recovery Time (ms) | 350 |
| Relative Humidity | 90% @ 50° C |
| Removable Terminals | Yes |
| Response Time (ms) | 35 (max.) |
| SISTEMA | PFHd = 5.8 x 10-8 |
| Safe Output Rating | Relay – 6 A |
| Safety Input - Reset | 20-50 mA @ 12-30 V dc |
| Safety Mat | Yes |
| Safety Module Type | Safety Mat Module |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Category acc. to ISO 13849-1:2008 | 4 |
| Device type | Safety Relay |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 230 V ac; 12-24 V dc |
| PL Rating | e |
| Power Good Output | AC/DC Universal |
| PROFINET | No |
| Protection class shaft | IP20 |
| Recovery Time | 350 |
| Vibration | 10-60 Hz at 0.35 mm |
Description
Safety Relay Module for Safety Mats
Supply Voltage: 230 V ac or 12-24 V dc
Safety Input: 4-Wire Safety Mat
Safety Outputs: 4 NO, 6 A; Aux Output: 1 NC, 5 A and 2 Solid-State, 100 mA
Terminal Block: Removable; Width: 45 mm
Self-Checking Circuitry, Auto/Manual Reset, EDM
