Profibus DP Cordsets 7/8"



7/8" Cordsets, Connector on One End Only

DP Power Cable Type 52

DP Power Cable Type 52 has PUR external jacket, colour Grey, oil-resistant, flame-retardant and halogen-free

Cross Section 5 x 1.5mm˛. External Cable Diameter 8.5 mm





            Female Straight RKM52                                Female Right Angled WKM52





             Male Straight RSM52                                     Male Right Angled WSM52

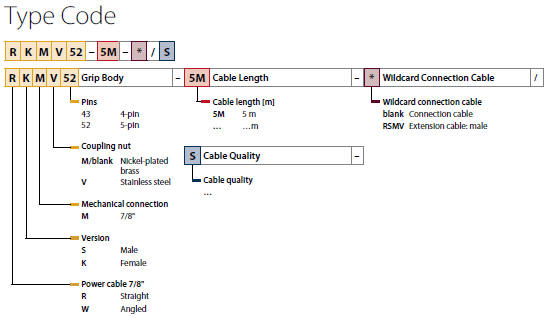

Type Ident No Size Gender Connector Style ST=Straight  RA=Right-Angled Cable Length Colour Design
RKM52-1M 6604710 7/8" Female ST 1 Grey
RKM52-2M 6604711 7/8" Female ST 2 Grey
RKM52-4M 6604714 7/8" Female ST 4 Grey
RKM52-10M 6914146 7/8" Female ST 10 Grey
RKM52-15M 6914147 7/8" Female ST 15 Grey
RKM52-30M 6604722 7/8" Female ST 30 Grey
WKM52-0.5M 6604762 7/8" Female RA 0.5 Grey
WKM52-2M 6604765 7/8" Female RA 2 Grey
WKM52-4M 6604768 7/8" Female RA 4 Grey
WKM52-6M 6604770 7/8" Female RA 6 Grey
WKM52-10M 6604772 7/8" Female RA 10 Grey
WKM52-15M 6604773 7/8" Female RA 15 Grey
RSM52-2M 6604712 7/8" Male ST 2 Grey
RSM52-4M 6604732 7/8" Male ST 4 Grey
RSM52-6M 6914142 7/8" Male ST 6 Grey
RSM52-10M 6914143 7/8" Male ST 10 Grey
RSM52-15M 6914144 7/8" Male ST 15 Grey
RSM52-30M 6604740 7/8" Male ST 30 Grey
WSM52-6M 6604788 7/8" Male RA 6 Grey
WSM52-10M 6604790 7/8" Male RA 10 Grey
WSM52-15M 6604791 7/8" Male RA 15 Grey
