Profibus-DP I/O Junction Boxes  IP20

Up to 16 I/O

Profibus DP Junction Boxes provide multiple connections for Profibus DP input and output devices in an IP20 environment. They are compact and available in 4 standard models each with 16 channels.

All models have three sections galvanically isolated between power and I/O. Inputs are PNP with short-circuit protection. Outputs are rated at 0.5A and also short-circuit protected. Bus addressing is by decimally coded rotary switches.

FDP20-16XSG has all channels configurable as Inputs or Outputs with a 9 pin D bus connector.

FDP20-16XSG-T has all channels configurable as Inputs or Outputs with screw terminal bus connections.

FDP20-16XSG has 16 Input channels with a 9 pin D bus connector.

FDP20-16XSG has 16 Input channels with screw terminal bus connections.



Profibus DP IP20 Junction Boxes
Type Ident No Bus Connection Channels Channel Type Output
FDP20-16XSG 6611466 9pin D 8 Configurable 0.5A
FDP20-16XSG-T 6611486 Terminals 8 Configurable 0.5A
FDP20-16S 6611465 9pin D 8 Input Only N/A
FDP20-16S-T 6611485 Terminals 8 Input Only N/A

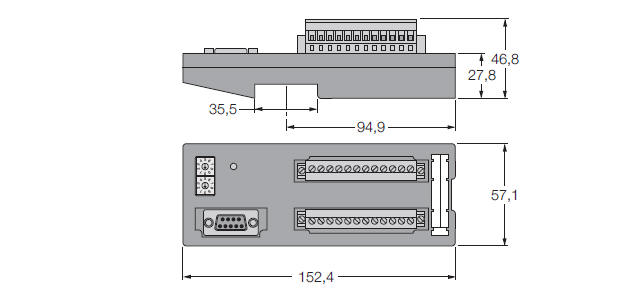

Drawing with Bus D Plug Connector

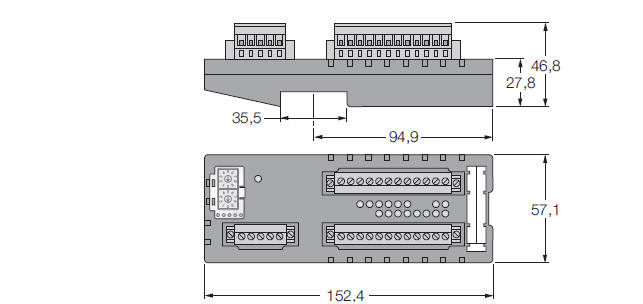

Drawing with Bus Screw Terminals
