Profibus DP Cordsets 7/8"



7/8" Cordsets, Connector on Both Ends

DP Power Cable Type 52

DP Power Cable Type 52 has PUR external jacket, colour Grey, oil-resistant, flame-retardant and halogen-free

Cross Section 5 x 1.5mm˛. External Cable Diameter 8.5 mm





            Female Straight RKM52                                Male Straight RSM52

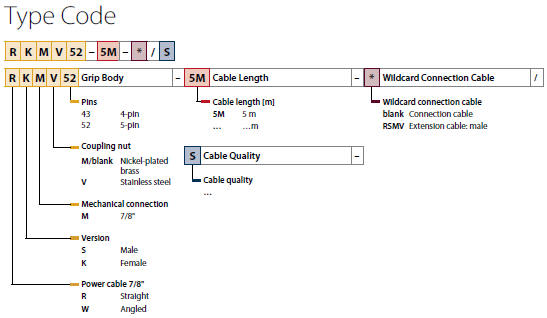

Type Ident No Size Connector Style St=Straight RA=Right Angled Cable Length Outer Colour Design
RKM52-0.3-RSM52 6604743 7/8" Male St-Female St 0.3 Grey
RKM52-0.5-RSM52 6914148 7/8" Male St-Female St 0.5 Grey
RKM52-1-RSM52 6914149 7/8" Male St-Female St 1 Grey
RKM52-2-RSM52 6914150 7/8" Male St-Female St 2 Grey
RKM52-3-RSM52 TBC 7/8" Male St-Female St 3 Grey
RKM52-4-RSM52 6914151 7/8" Male St-Female St 4 Grey
RKM52-5-RSM52 6604751 7/8" Male St-Female St 5 Grey
RKM52-6-RSM52 6914152 7/8" Male St-Female St 6 Grey
RKM52-10-RSM52 6914153 7/8" Male St-Female St 10 Grey
RKM52-15-RSM52 6914154 7/8" Male St-Female St 15 Grey
RKM52-20-RSM52 TBC 7/8" Male St-Female St 20 Grey
