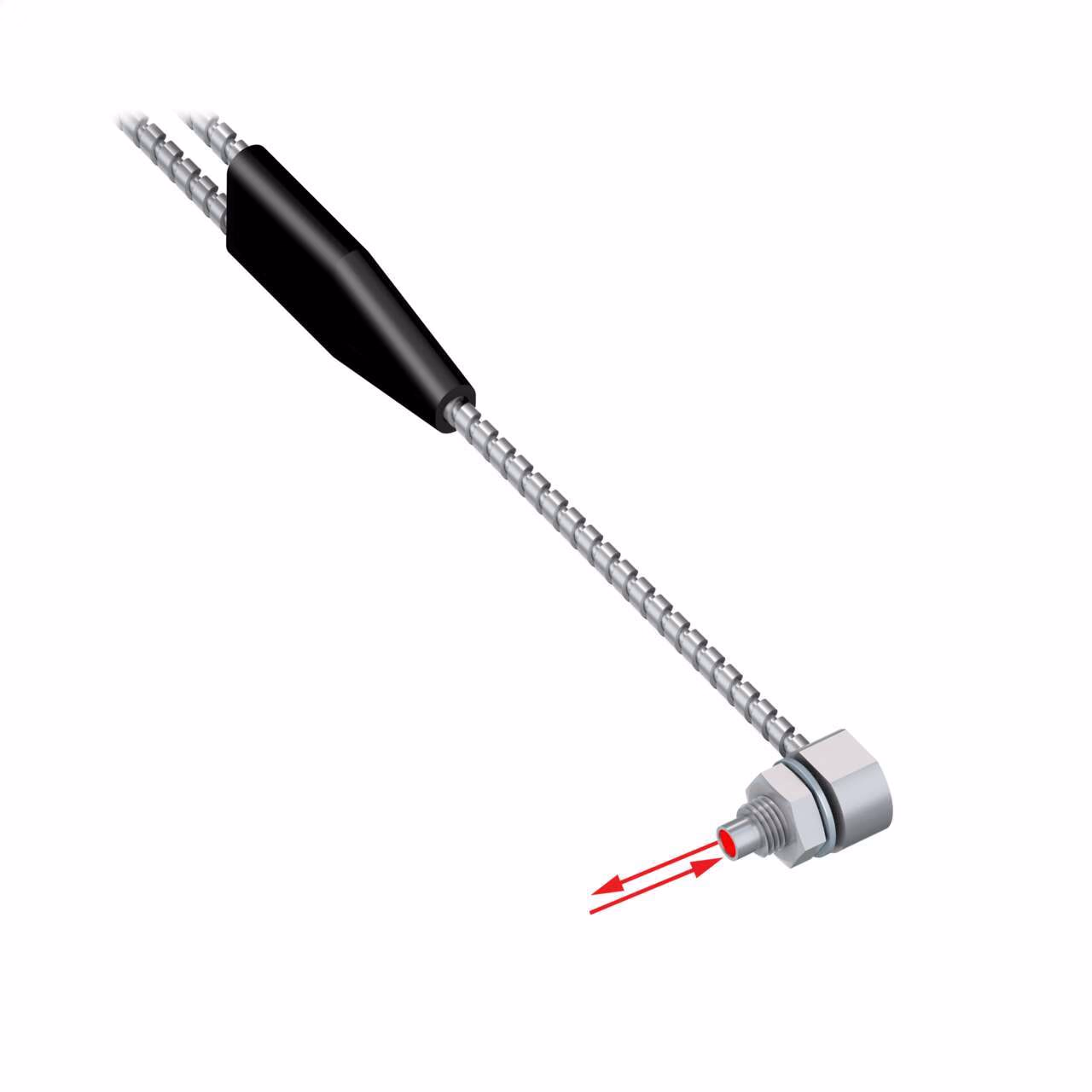

Angle Fiber Optics – Banner – BAT16.6ST5MTA
Glass Fiber
Bifurcated 0.06 in Bundle
M6 Threaded Right-Angle Tip
Stainless Sheathing 79 in
Terminated For Plastic Fiber Sensors
| Beam Exit | Right Angle |
|---|---|
| Fiber Sensing End Size | 4.0 mm |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | No Data |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Angle |
| Sensing End Segment 2 | Thread |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 25 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 1658 |
| Max Temp (C) | 249 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 1.7 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Glass Fiber
Bifurcated 0.06 in Bundle
M6 Threaded Right-Angle Tip
Stainless Sheathing 79 in
Terminated For Plastic Fiber Sensors
