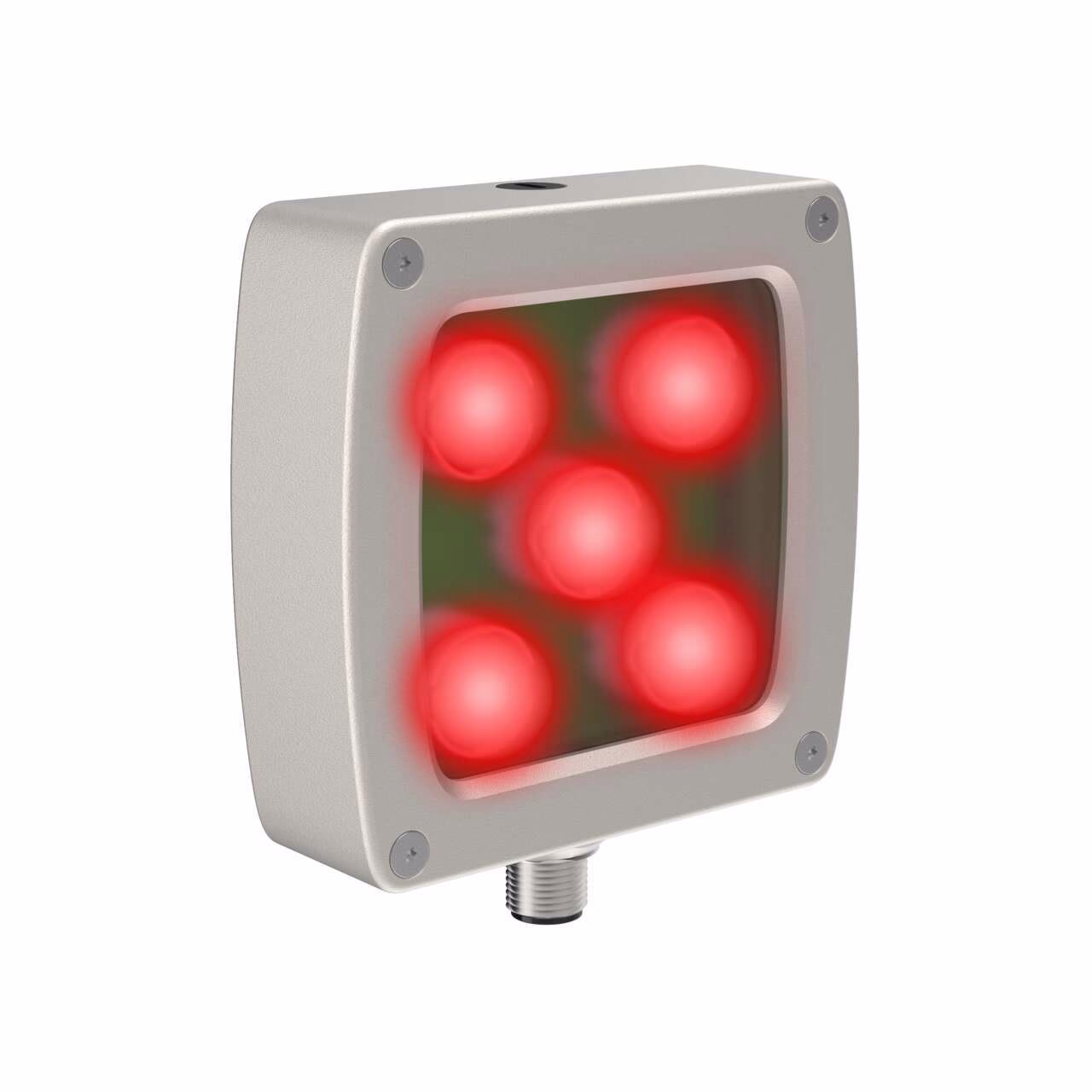

Area Lights – Banner – LEDRA70AP5-XQ
Vision Light – 70 mm Area – IP68
5 High Intensity Red LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
| Color | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Area Light |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Number of Conductors | 5 |
| Physical Dimensions (LxWxH or DxH mm) | 102.0 x 91.0 x 28.2 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP68 |
| Receptacle housing material B | Nickel-Plated Aluminum |
| High Temperature (up to 100 C) | 50 |
| Max Current Color (mA) | 500 |
| Voltage supply connection | Integral QD |
Description
Vision Light – 70 mm Area – IP68
5 High Intensity Red LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
