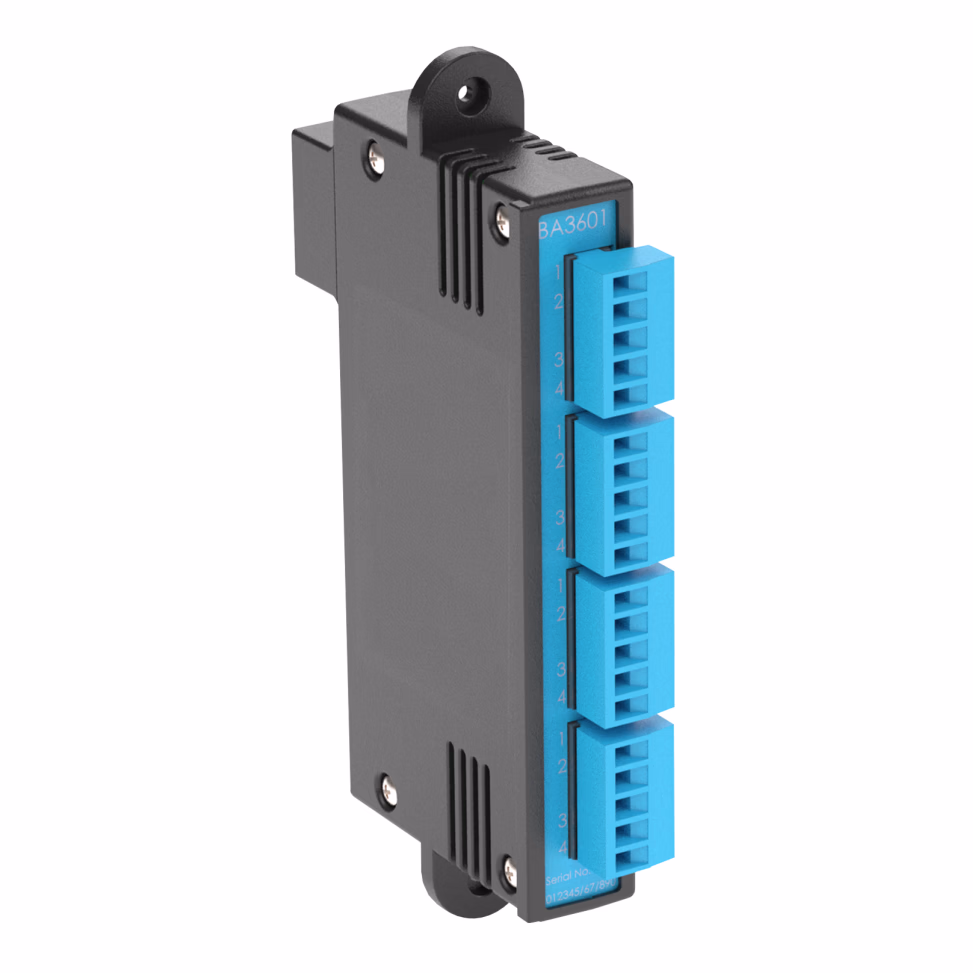

BA3601 Pageant Digital Output Module 4 x Contact – BA3601
Features:
Four contact outputs
Each output is galvanically isolated
Ex ia intrinsic safety certification
Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display
| Approvals | ATEX, IECEx, UKEX |
|---|---|
| Protection class | IP20 |
| Brand | Beka |
| Mounting | Plug-in |
Product details
The Pageant BA3601 module has four isolated solid state contact outputs, each certified as a separate intrinsically safe circuit. The module is intended for switching intrinsically safe loads located in any hazardous area, or low power safe area loads via a Zener barrier or a galvanic isolator.
Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 operator display without the need for additional certification or approval.
If requirements change, a BA3601 module may be fitted on-site to an operator display which has already been installed and commissioned.
