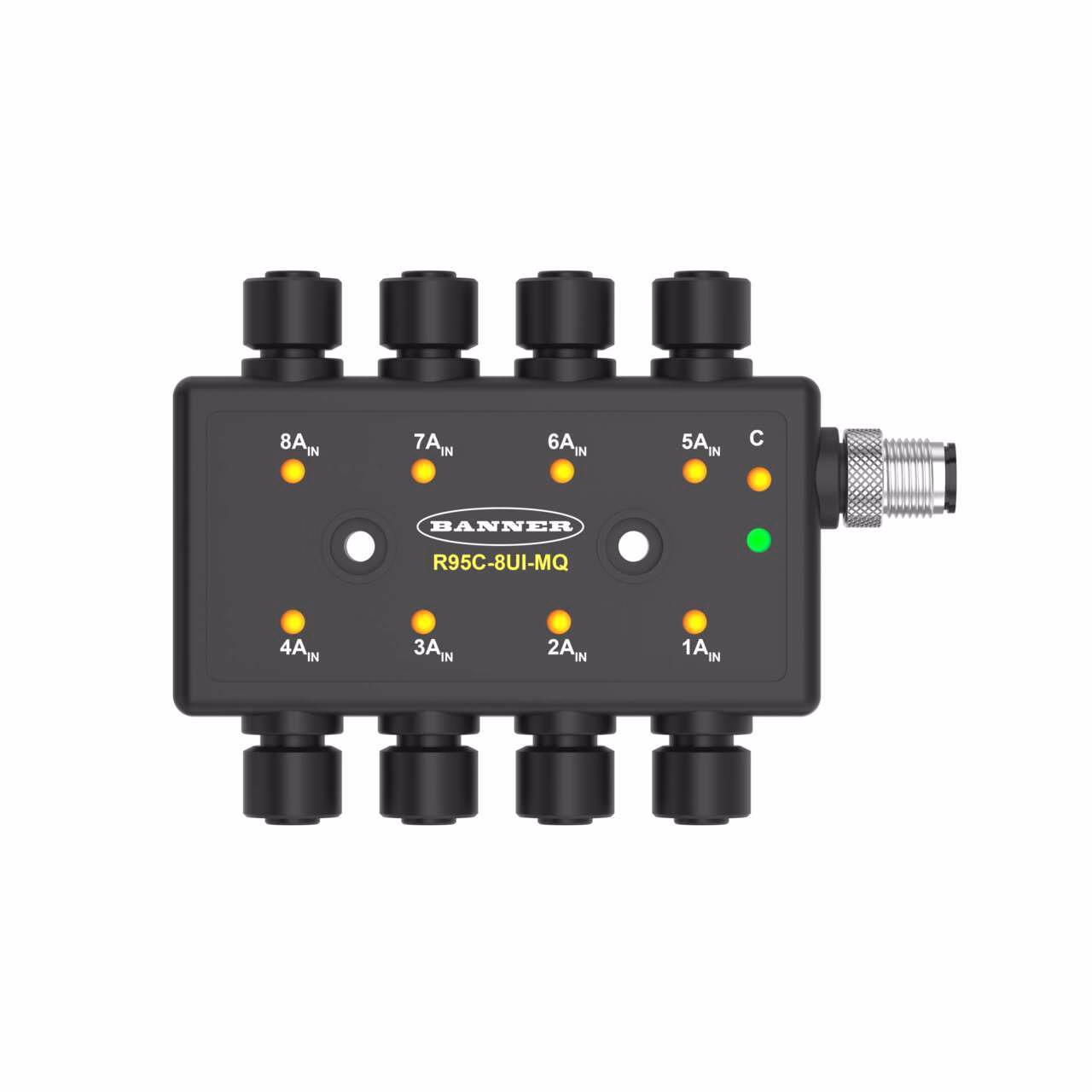

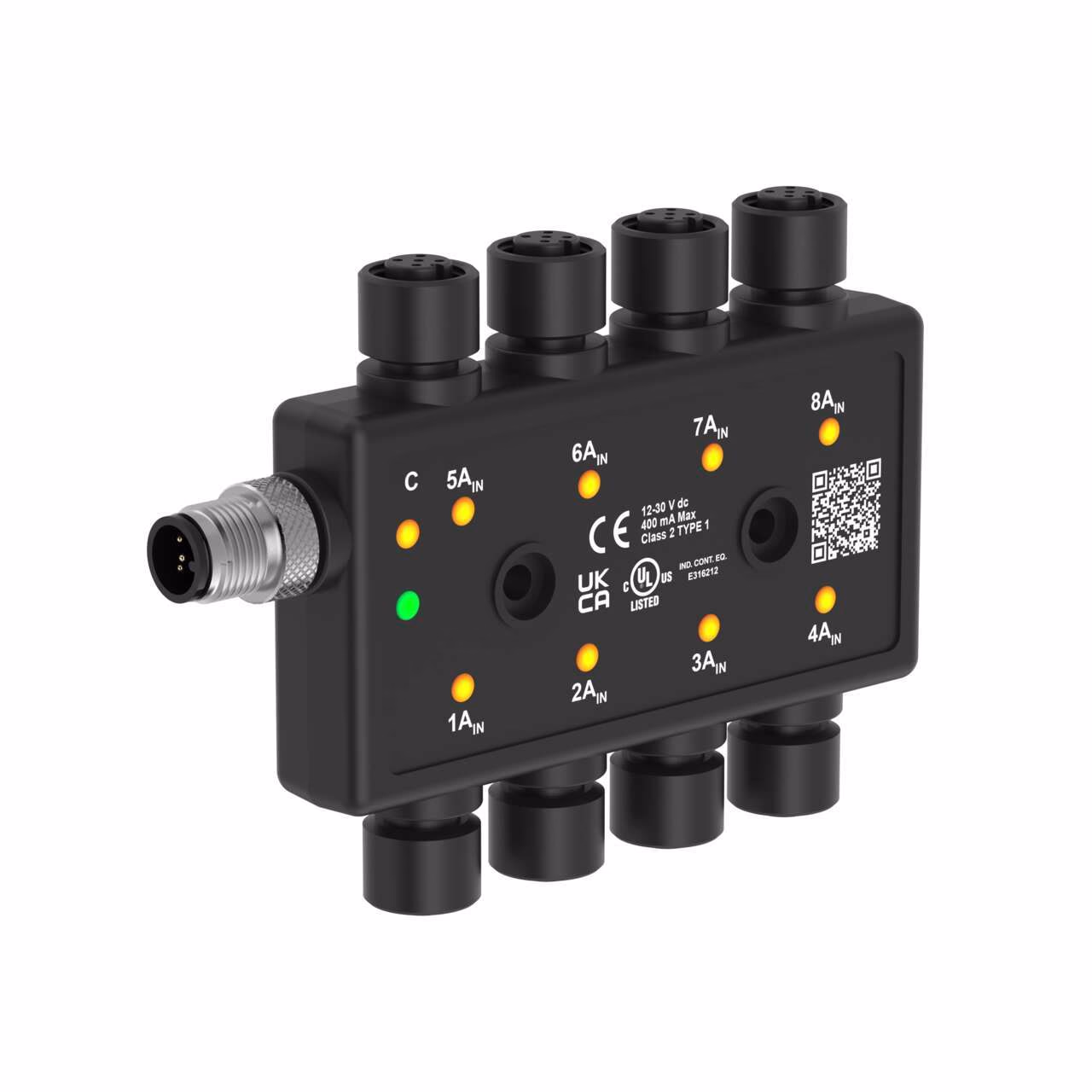

Banner – R95C-8UI-MQ
R95C Series: 8 Port Analog Modbus Hub
Modbus RTU Interface
8 Current or Voltage Inputs
4-pin M12 QD
| Connector 2 Gender | Male |
|---|---|
| Pin / Wire Count | 4.0 |
| Connector B | Female |
| EPLAN Original Sent Date | 01/05/2024 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Modbus |
| Signal type | Analog Voltage |
| IO-Link Device | No |
| Modbus Server | Yes |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R95 |
| Modbus Client | No |
| Input | Analog Current |
| Device Size (mm) | 50 x 95 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <400 mA |
Description
R95C Series: 8 Port Analog Modbus Hub
Modbus RTU Interface
8 Current or Voltage Inputs
4-pin M12 QD
