Banner – S15S-R3000-MQ

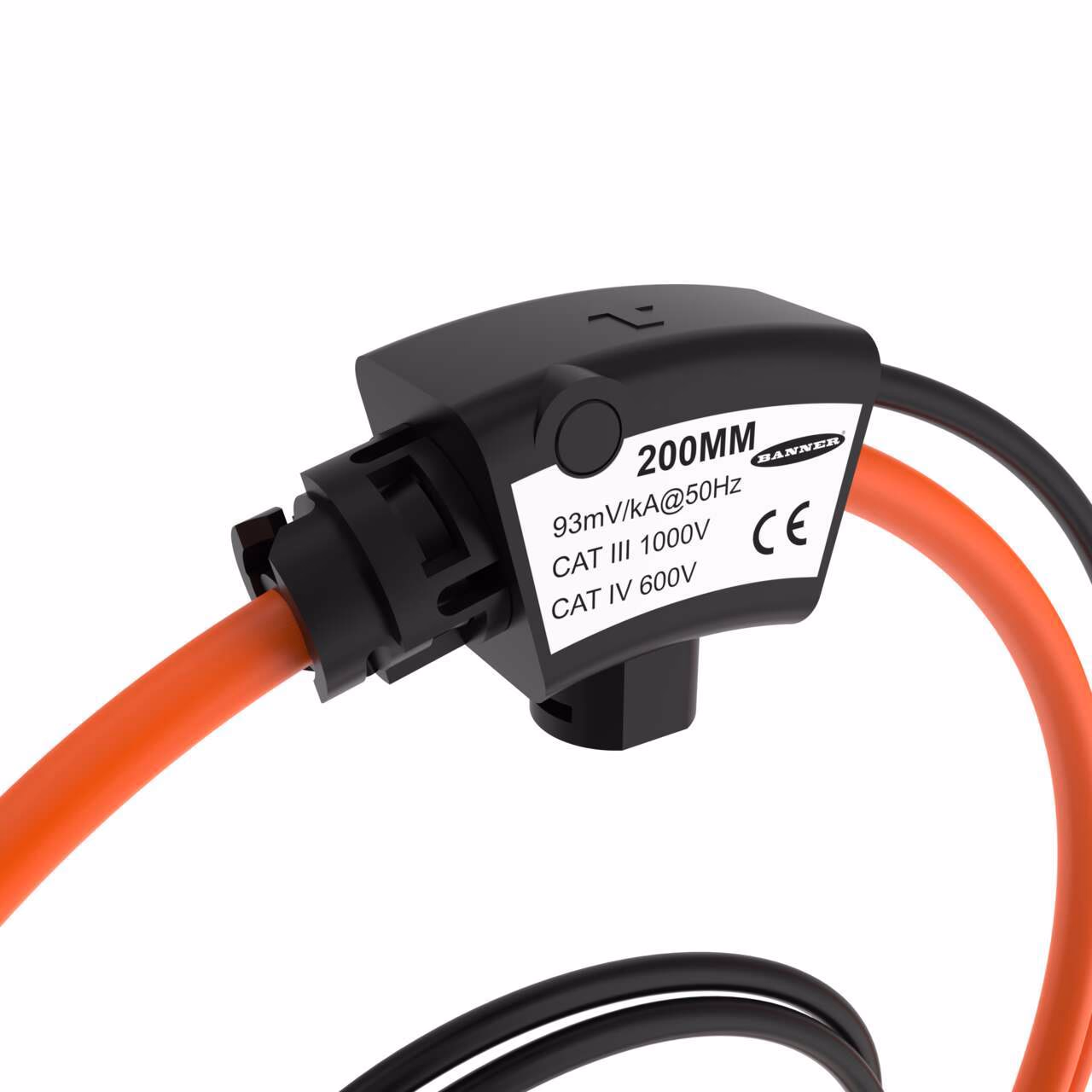

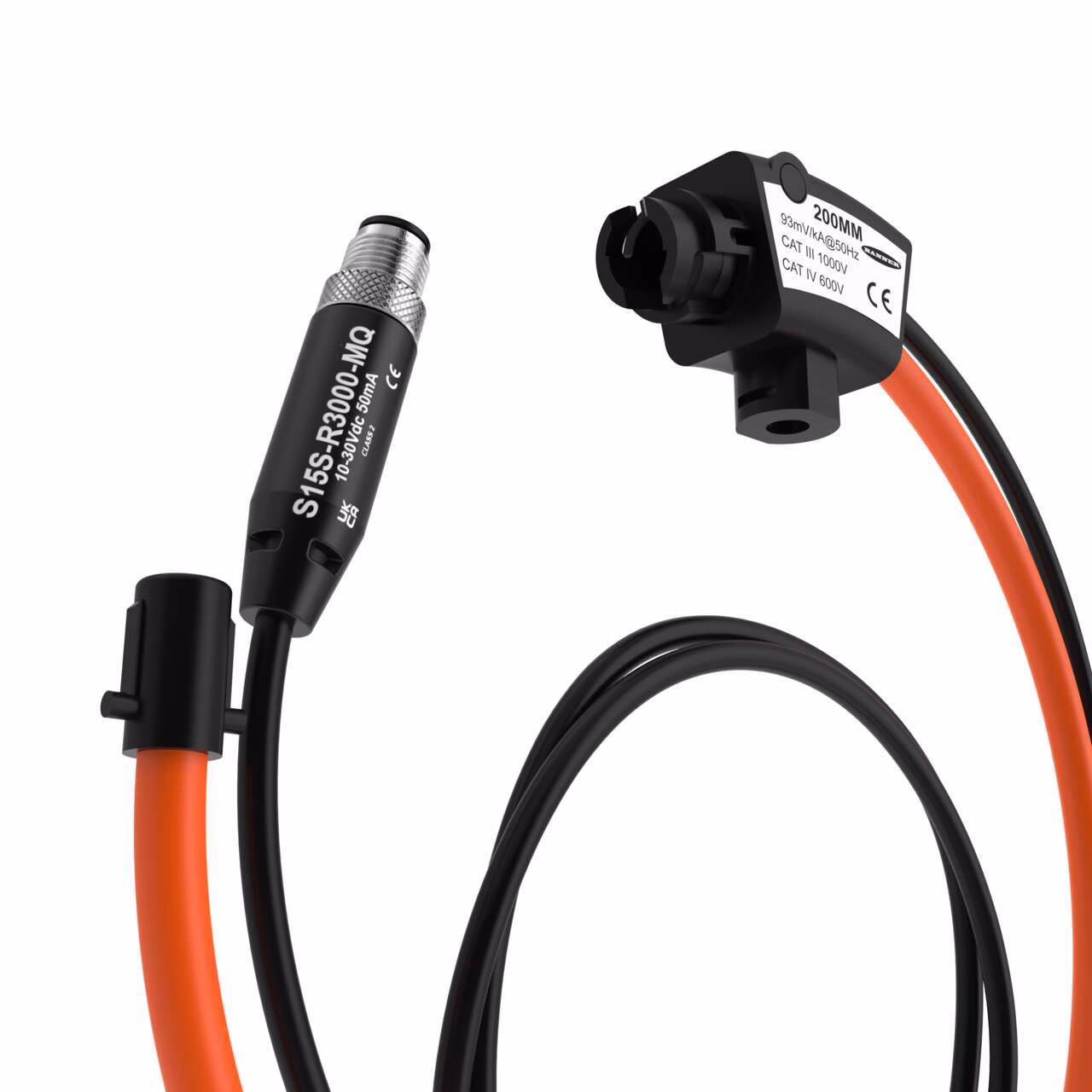

S15S Rogowski Coil Current Sensor
3000 A; 200 mm Coil; 10-30 V dc
Modbus RTU; RS-485 Interface
4-pin Male M12 QD
| Condition Monitoring Sensor Type | AC Current |
|---|---|
| Connector B | Male |
| EPLAN Status | Not Eligible |
| EtherNet/IP | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 10-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Radio interface | No |
| RS-485 | No |
| Setting option | Modbus |
| Signal type | Rogowski Coil |
| Modbus Server | Yes |
| Connector 1 | Integral M12 |
| Function | Sensor |
| Input | Current Transformer |
| Connector 1 Pin Count | 4.0 |
| Current | <50 mA |
Description
S15S Rogowski Coil Current Sensor
3000 A; 200 mm Coil; 10-30 V dc
Modbus RTU; RS-485 Interface
4-pin Male M12 QD
