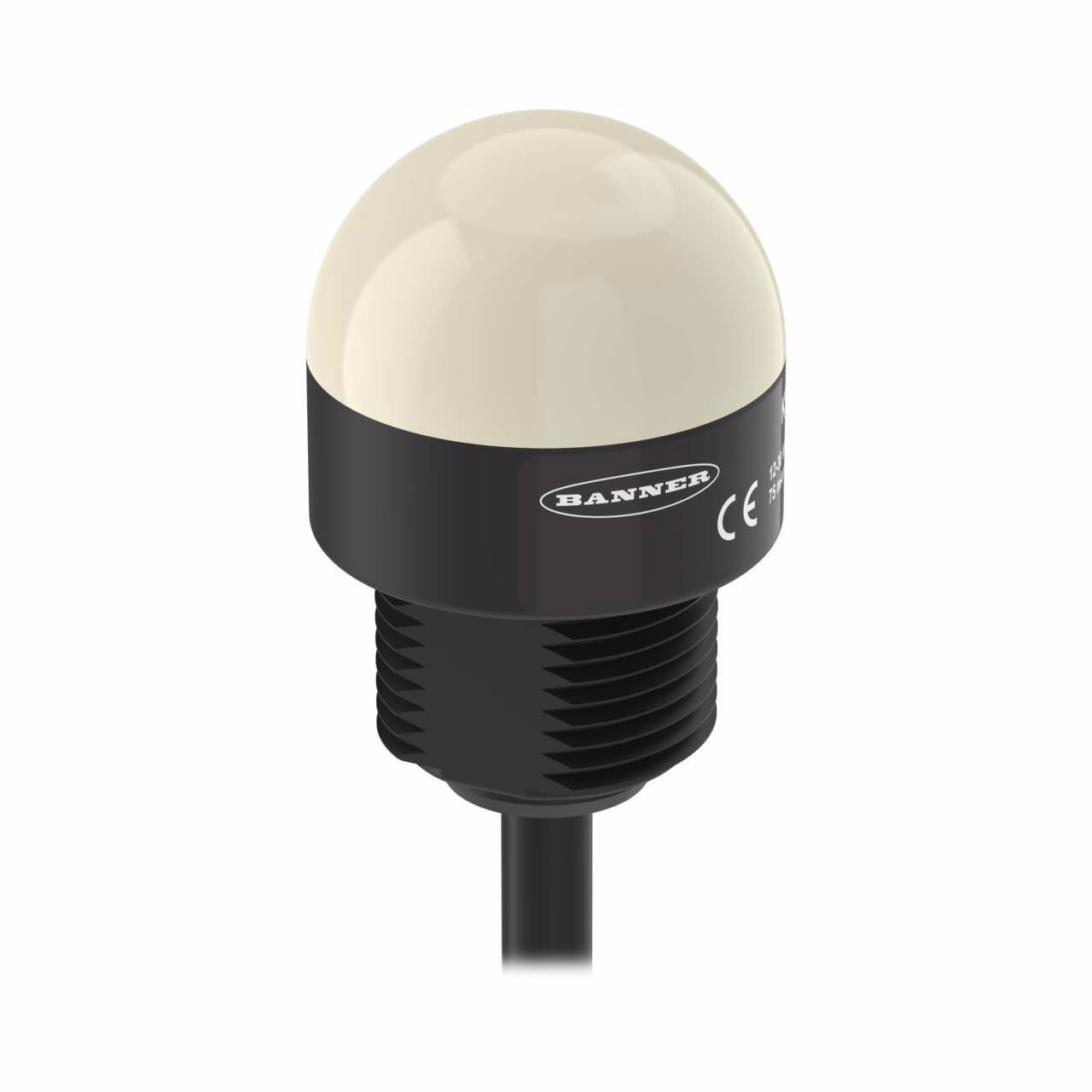

K30 Core Series 30 mm General Purpose LED Indicator – Banner – K30LIGRWPQP
K30LI Series EZ-LIGHT: 3-Color Hazardous Area Indicator
Protection Type: Ex ia – Intrinsically Safe
Voltage: 8-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: PNP; Colors: Green Red White
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Color Option 3 | White |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Hazardous Area, Quick Disconnect, Washdown Rated |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 4.0 |
| Operating voltage | 8-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 44.5 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 0.15 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 30 |
| Storage Temp (C) | -40 to 70 |
Description
K30LI Series EZ-LIGHT: 3-Color Hazardous Area Indicator
Protection Type: Ex ia – Intrinsically Safe
Voltage: 8-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: PNP; Colors: Green Red White
150 mm (6 in) 4-pin M12 PVC Pigtail QD
