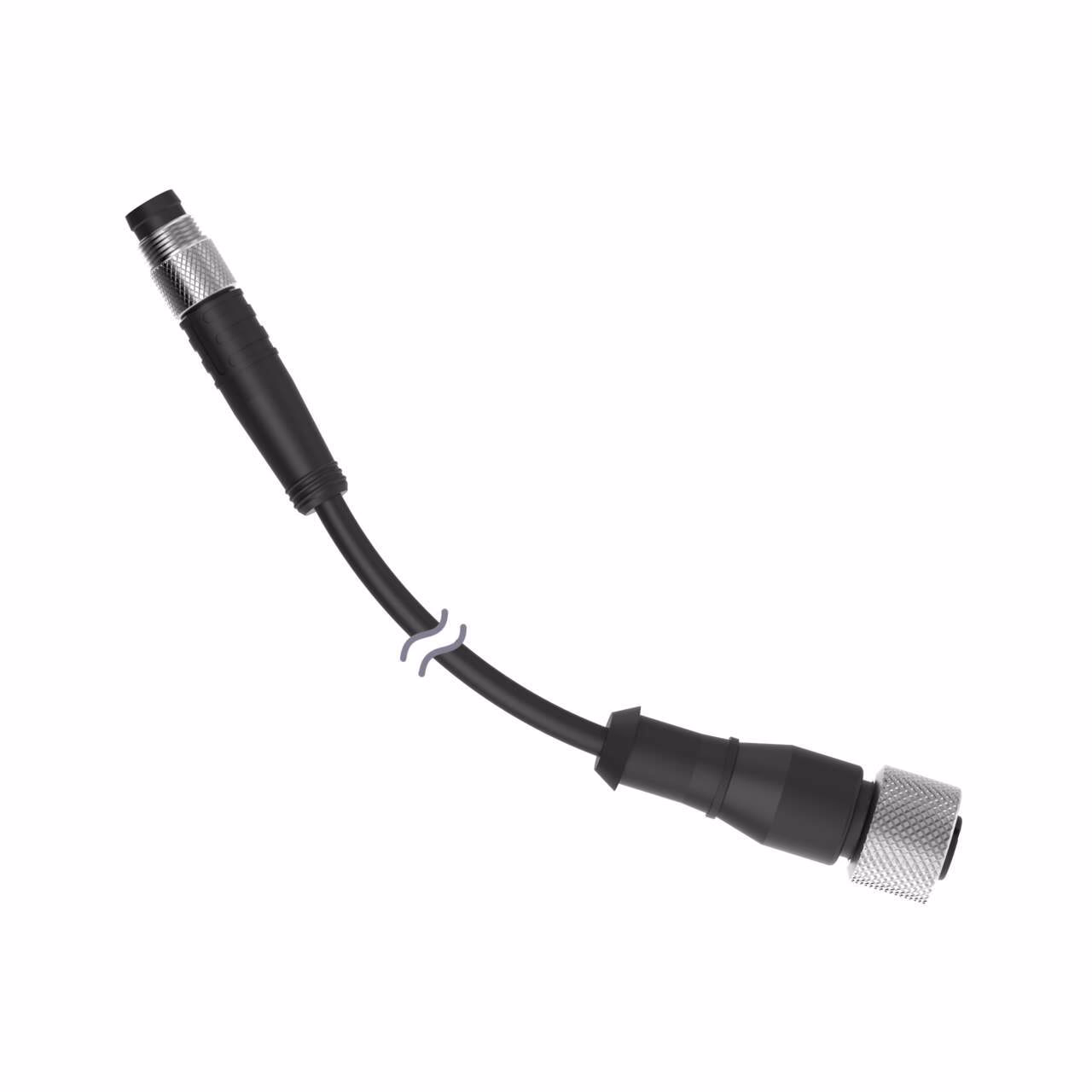

Double-Ended – Banner – BC-M12F4-M8M4-24-5
Cordset: Double-Ended A-Code M12 to M8 Threaded
4-pin M12 Straight Female Connector; 4-pin M8 Straight Male Connectors
5 m (16.40 ft) 4×26 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 4.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 5.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 4.4 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M8 |
| Connector B | Female |
| Current (A) | 2.0 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Operating voltage | 60 V ac/dc |
| Overmold Material and Color | PUR Black |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Double-Ended A-Code M12 to M8 Threaded
4-pin M12 Straight Female Connector; 4-pin M8 Straight Male Connectors
5 m (16.40 ft) 4×26 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
