Double-Ended – Banner – BC-M12F5-M12M5-22-0.16M

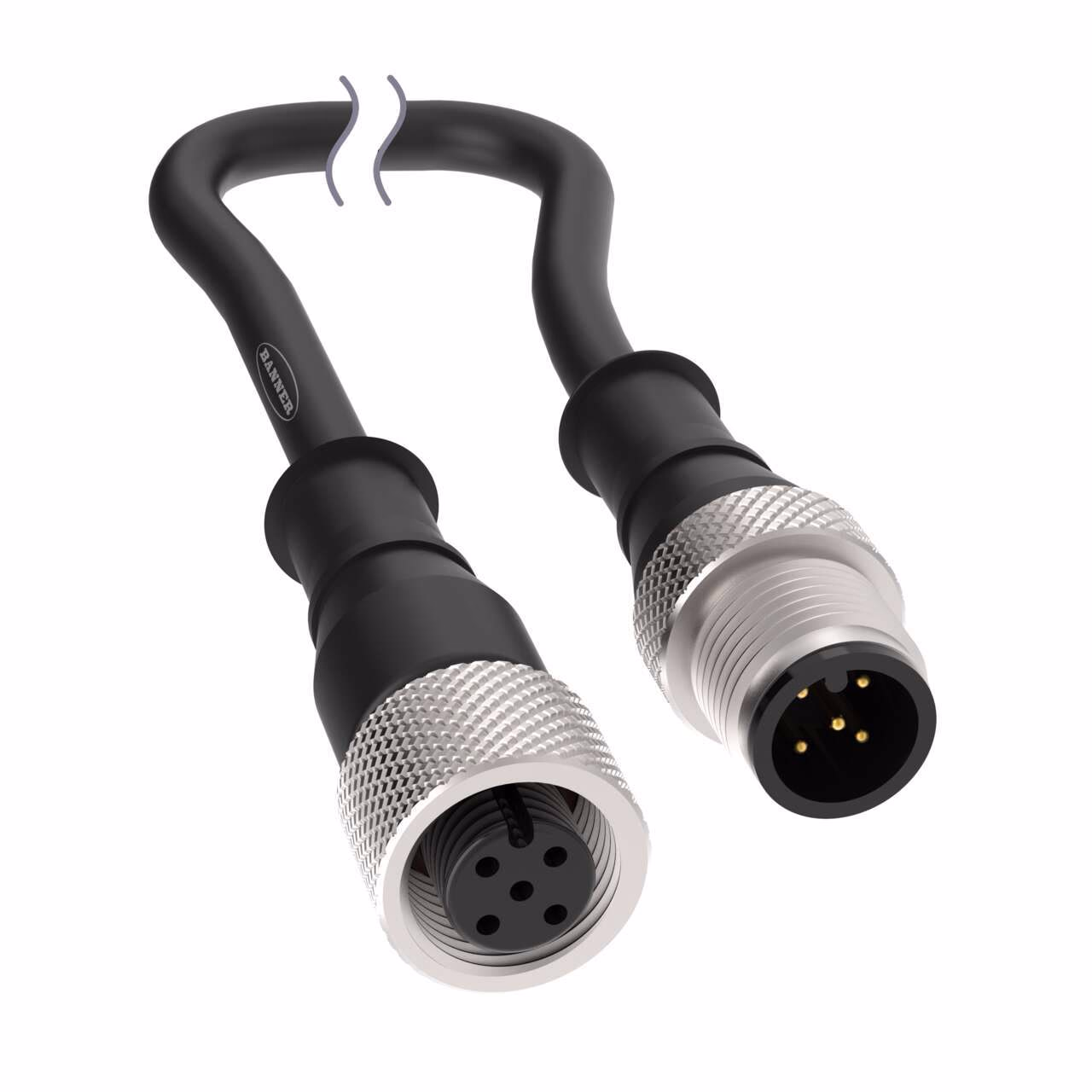

Cordset: Double-Ended M12
5-pin Straight Female A-Code; 5-pin Straight Male A-Code Connectors
0.16 m (0.52 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| AWG | 22 |
|---|---|
| Application | Signal |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Shield | No Shield |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 5.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 0.16 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.60 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 4.0 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Overall shield | No Shield |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP66, IP67, IP68 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 5.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Double-Ended M12
5-pin Straight Female A-Code; 5-pin Straight Male A-Code Connectors
0.16 m (0.52 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
