Double-Ended – Banner – BCD-M12DM-RJ45-0.3

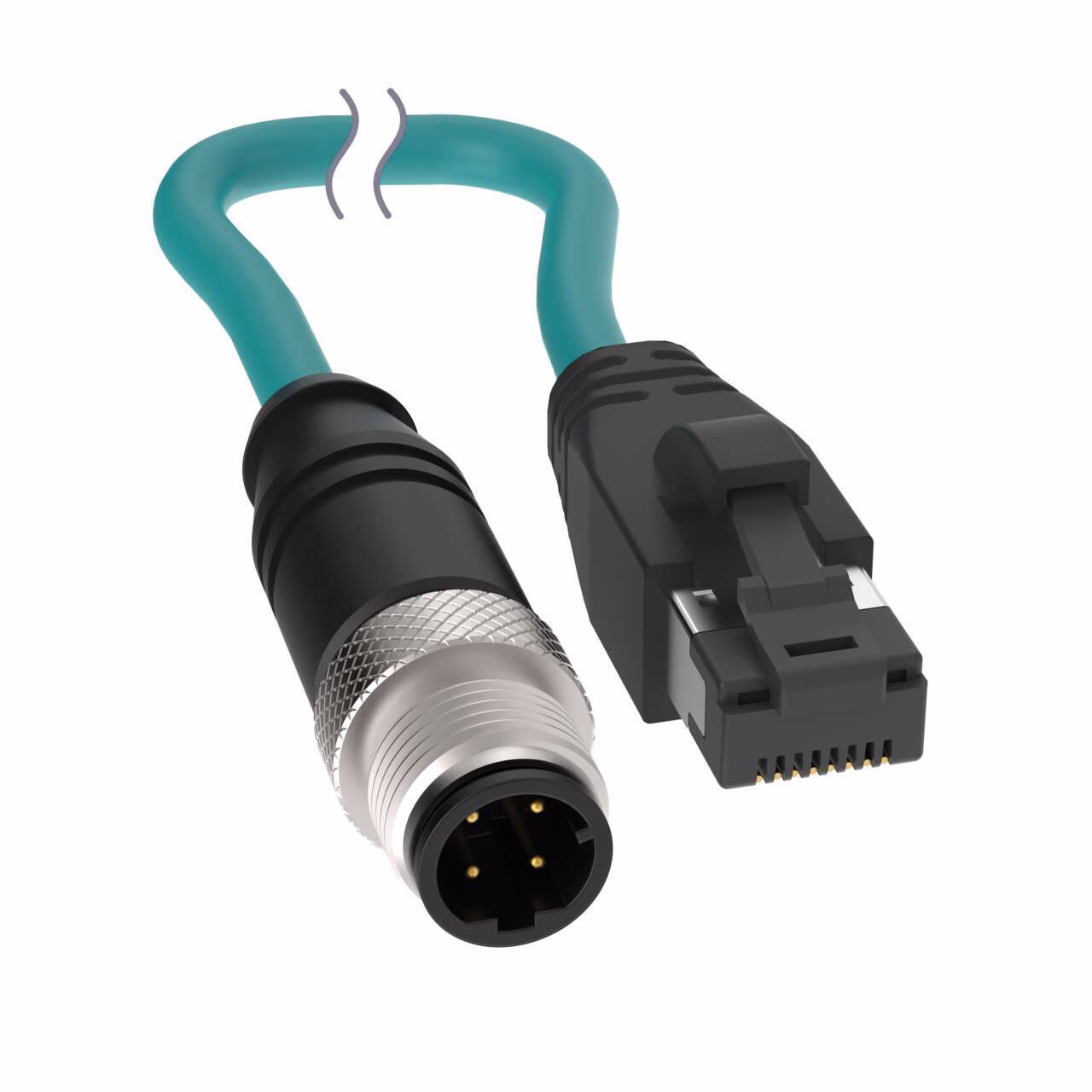

Cordset: Double-Ended D-Code M12 to RJ45
4-pin Straight Male to RJ45 Straight
0.3 m (1 ft) 4×22 Teal PVC Jacket
Nickel-Plated Zinc Alloy Coupling Nut
Shielding Tied to Coupling Nut
| Cable Jacket Color | Teal |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 8.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 0.3 |
| Coupling Nut Material | Nickel Plated Zinc Alloy |
| Outside Cable Diameter (mm) | 7 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Connector 1 Key Code | D |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | RJ45 |
| Connector B | Male |
| Current (A) | 1.5 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 42 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP20 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -20.0 |
Description
Cordset: Double-Ended D-Code M12 to RJ45
4-pin Straight Male to RJ45 Straight
0.3 m (1 ft) 4×22 Teal PVC Jacket
Nickel-Plated Zinc Alloy Coupling Nut
Shielding Tied to Coupling Nut
