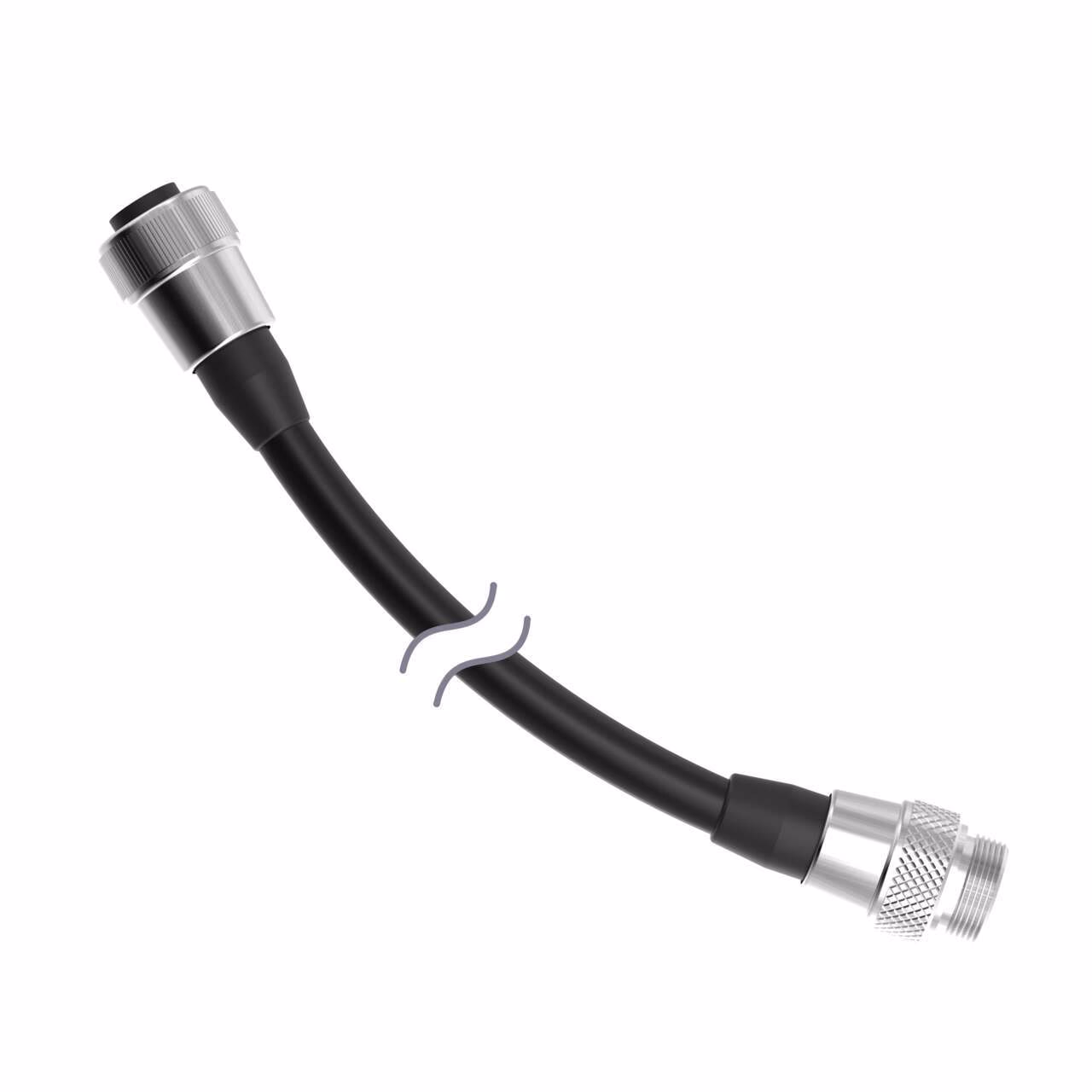

Double-Ended – Banner – MBCCL-503SS
Cordset: Double-Ended 7/8 in
5-pin Straight Female; 5-pin Straight Male
1 m 5×18 Black PVC Jacket
TPV Black; Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |

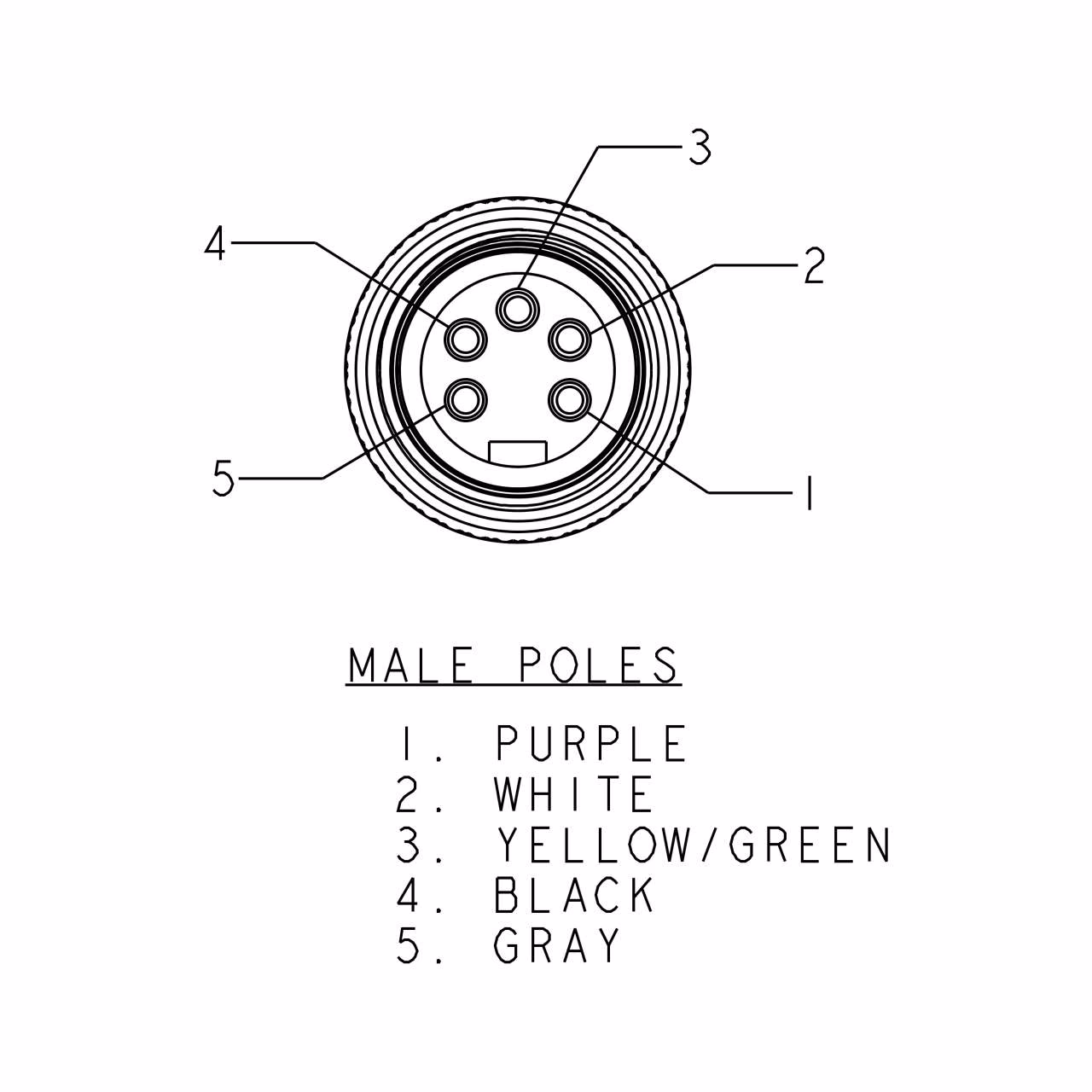

| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 5.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 1.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 11.60 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | 7/8 in. (Mini) |
| Connector 2 Type | 7/8 in. (Mini) |
| Connector B | Female |
| Current (A) | 8 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | TPV Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 5.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended 7/8 in
5-pin Straight Female; 5-pin Straight Male
1 m 5×18 Black PVC Jacket
TPV Black; Nickel-Plated Brass Coupling Nuts
