Double-Ended – Banner – MQDC-4506SS

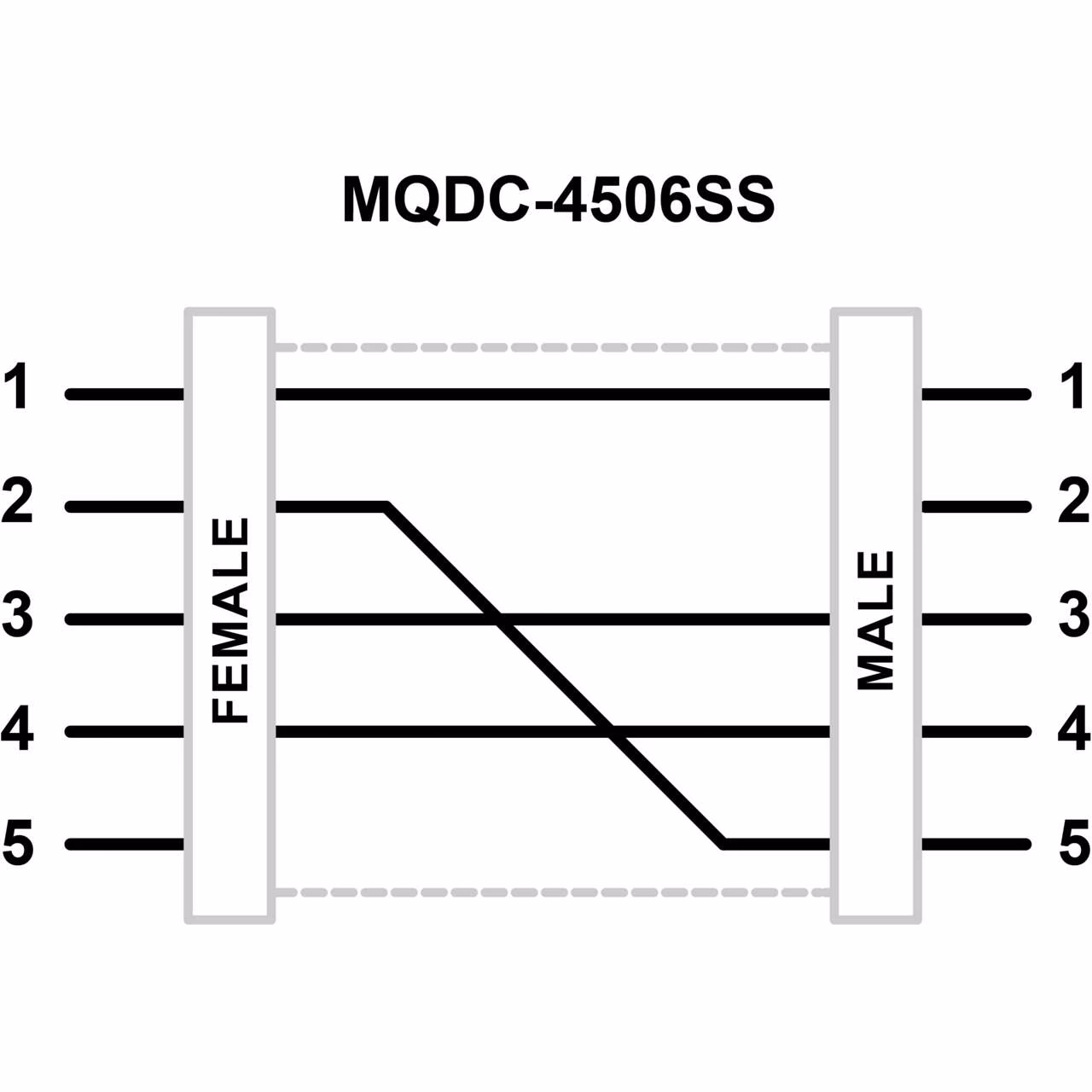

Cordset: Double-Ended M12 with Cross-Wiring
4-pin Straight Female; 5-pin Straight Male
1.83 m 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Application | Signal |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Body Size | Standard |
| Connector 1 Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Overmold Material and Color | PUR Black |
| Connector 1 Shield | No Shield |
| Connector 1 Thread/Snap | Threaded |
| Connector 2 Body Size | Standard |
| Connector 2 Coupling Nut Material | Nickel Plated Brass |
| Connector 2 Gender | Male |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 5 |
| Connector 2 Orientation | Straight |
| Connector 2 Overmold Material and Color | PUR Black |
| Connector 2 Thread/Snap | Threaded |
| Cordset Length (m) | 1.8 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 4 |
| Outside Cable Diameter (mm) | 5.9 |
| Shield/No Shield | No Shield |
| Wire AWG | 22 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Female |
| Current (A) | 4 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overall shield | No Shield |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 4 |
| Minimum Temp. (Celsius) | -40 |
Description
Cordset: Double-Ended M12 with Cross-Wiring
4-pin Straight Female; 5-pin Straight Male
1.83 m 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
