Double-Ended – Banner – USB-USBM-1

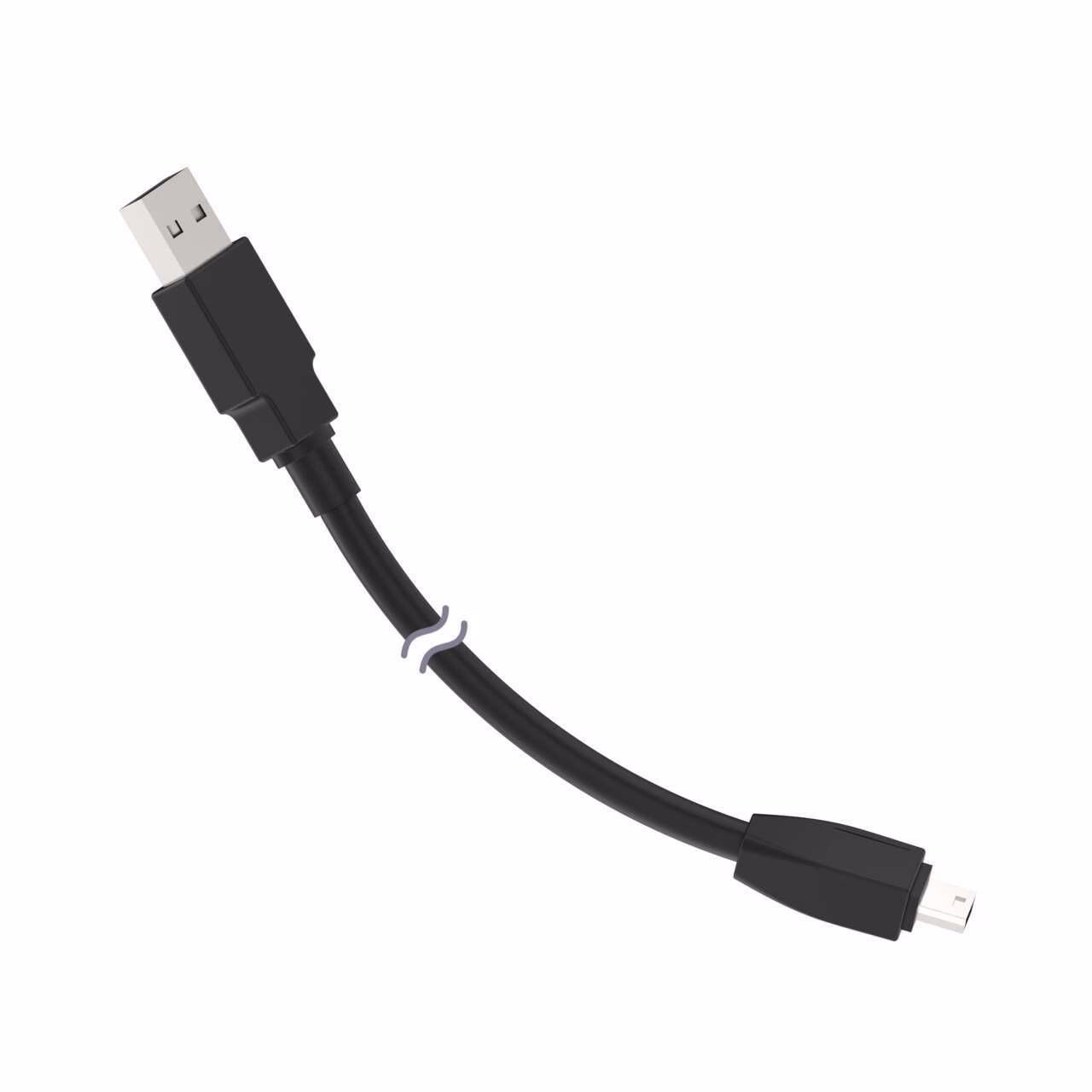

Cordset: Double-Ended USB-A to USB Mini B
4-pin Straight Male; 5-pin Straight Male Connectors with Shield
1.08 m (3.54 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 5 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 1.08 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 4.7 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | USB-A |
| Connector 2 Type | USB Mini B |
| Connector B | Male |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Overmold Material and Color | PVC Black |
| Maximum Temp. (Celsius) | 105 |
| Number of pins.1 | 4 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended USB-A to USB Mini B
4-pin Straight Male; 5-pin Straight Male Connectors with Shield
1.08 m (3.54 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
