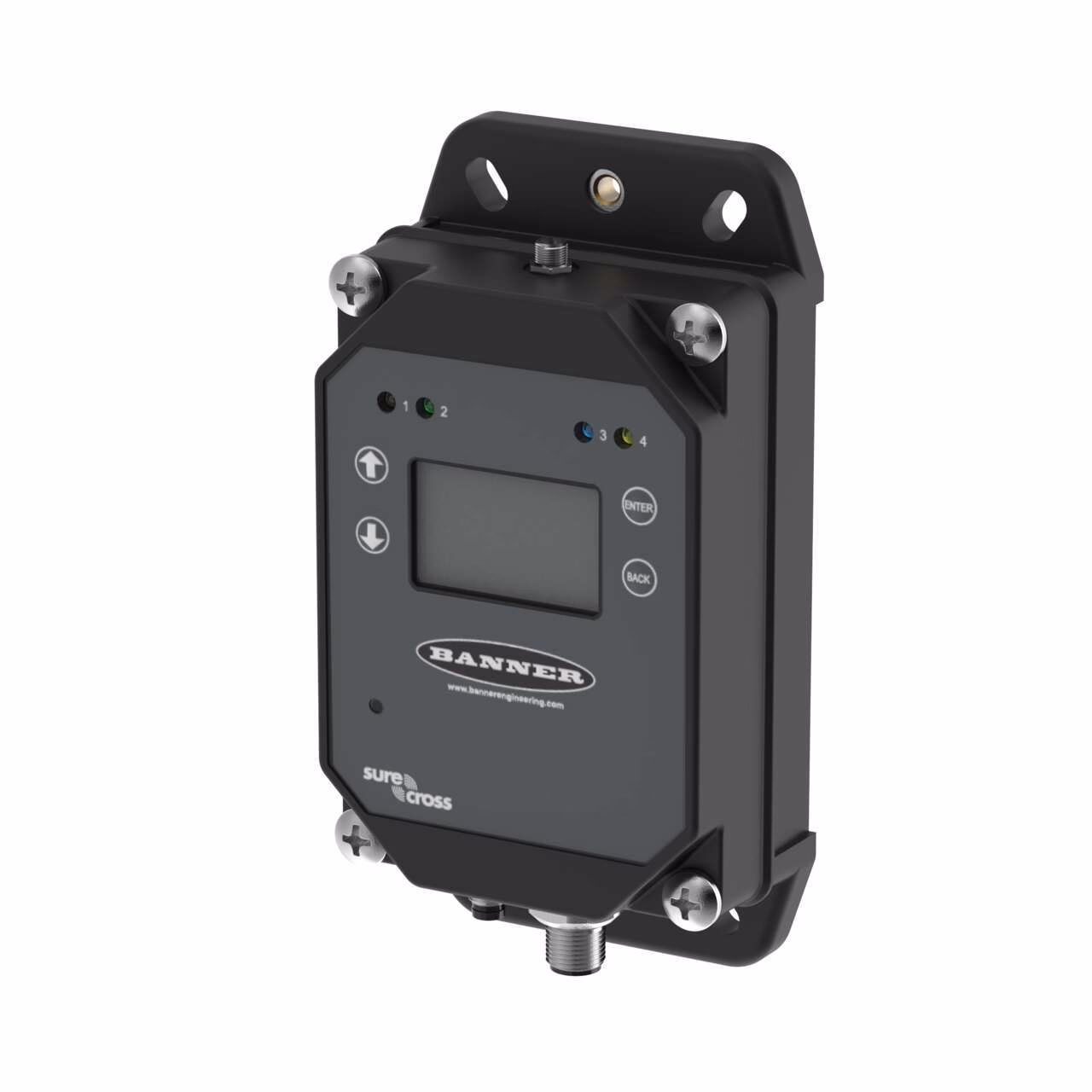

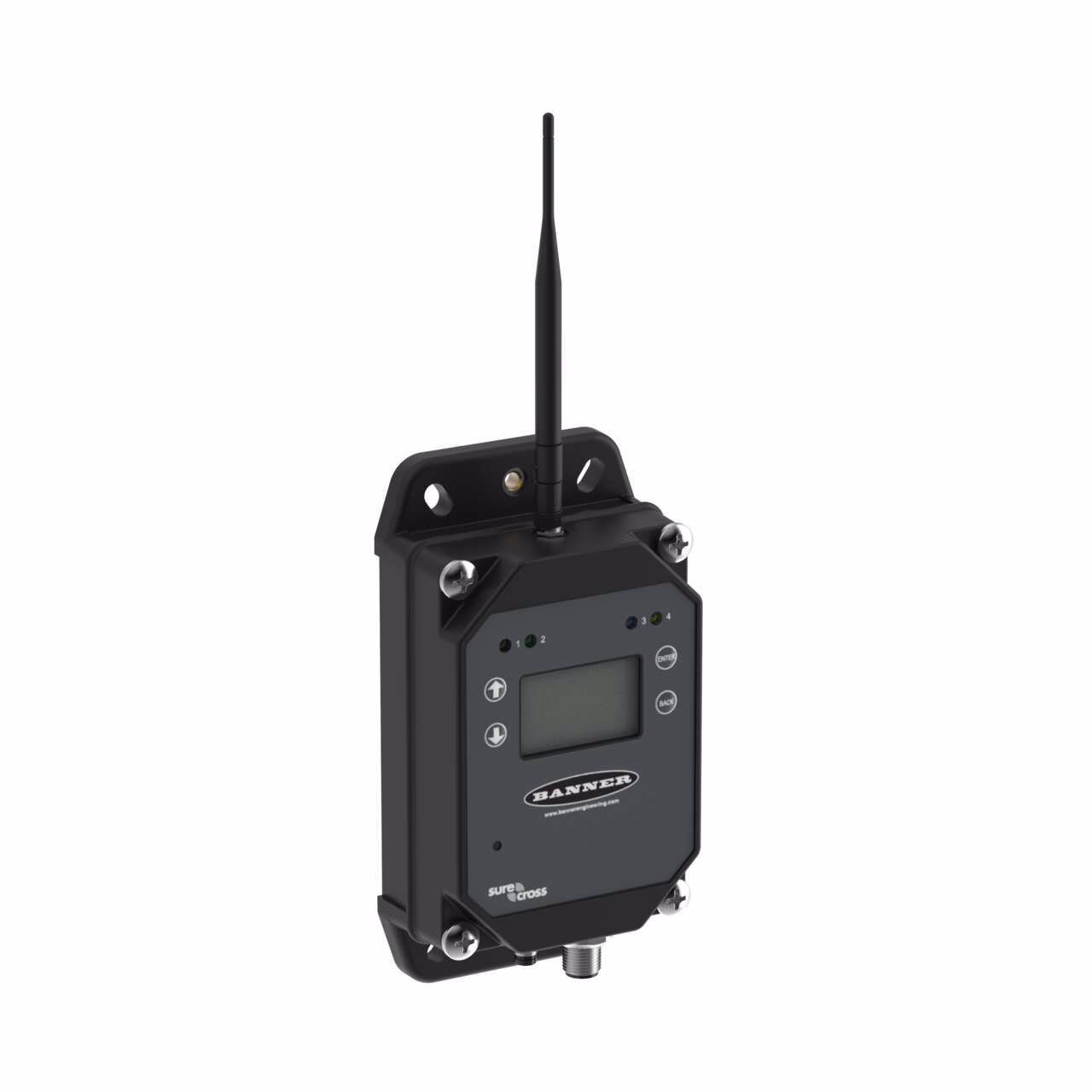

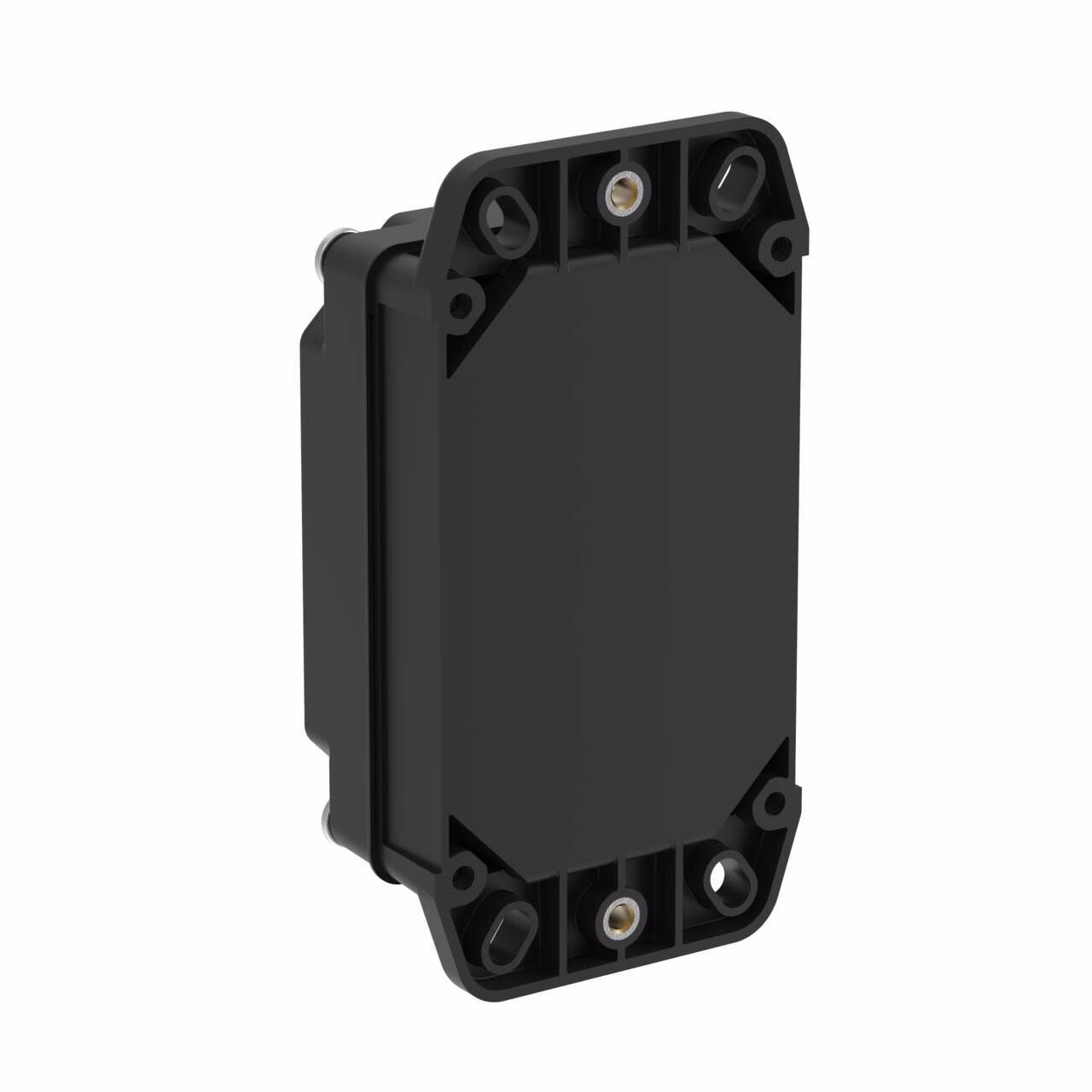

DXM1200 IIoT Gateway Series – Banner – DXM1200-B1R1
DXM1200 Controller
DX80 Performance Gateway 900 MHz
M7 Processor, 16MB Memory, LCD Display
RS-485, Ethernet (M8)
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| Ethernet Connector Type | M8 |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 60 |
| Min Temp Operating Conditions (C) | -20 |
| On-Board Memory (MB) | 16 |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Processing Speed (MHz) | 300 |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Thailand |
| Device type | Wireless Controller with Performance Gateway |
| EtherNet/IP | Yes |
| Housing Style | Rectangular |
| Input/Output | Serial (Modbus) |
| Intrinsically Safe | No |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light |
| Options Available | Modbus |
Description
DXM1200 Controller
DX80 Performance Gateway 900 MHz
M7 Processor, 16MB Memory, LCD Display
RS-485, Ethernet (M8)
