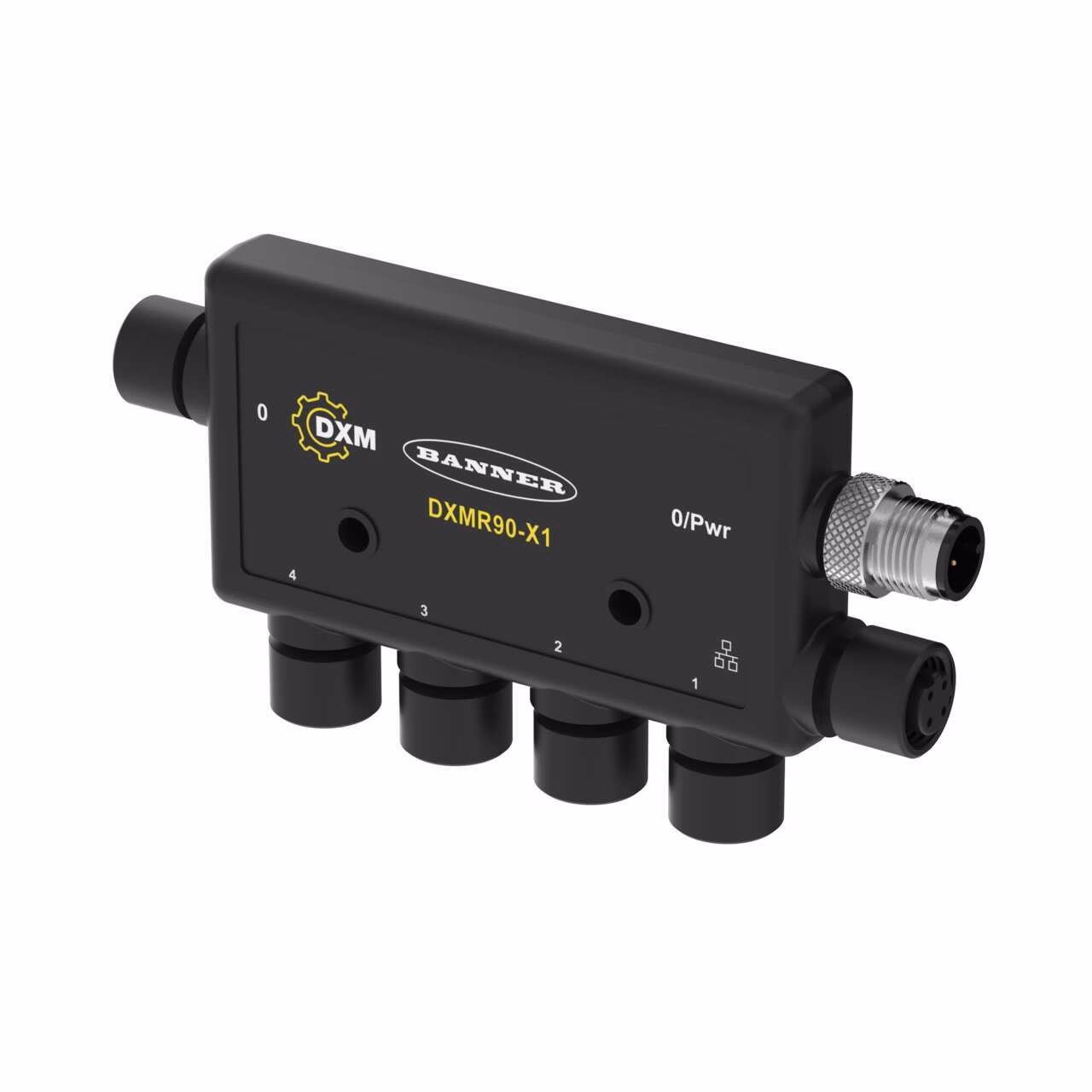

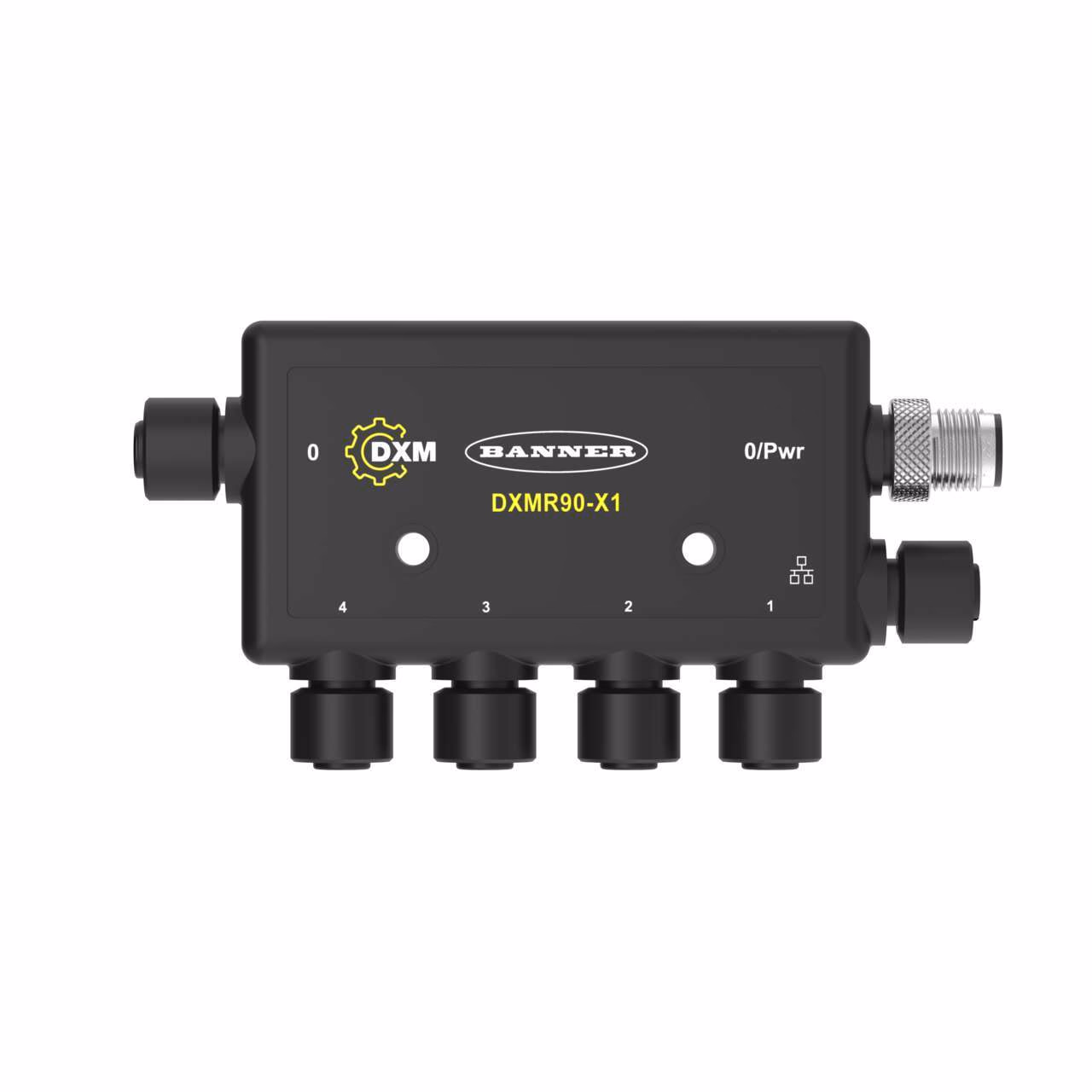

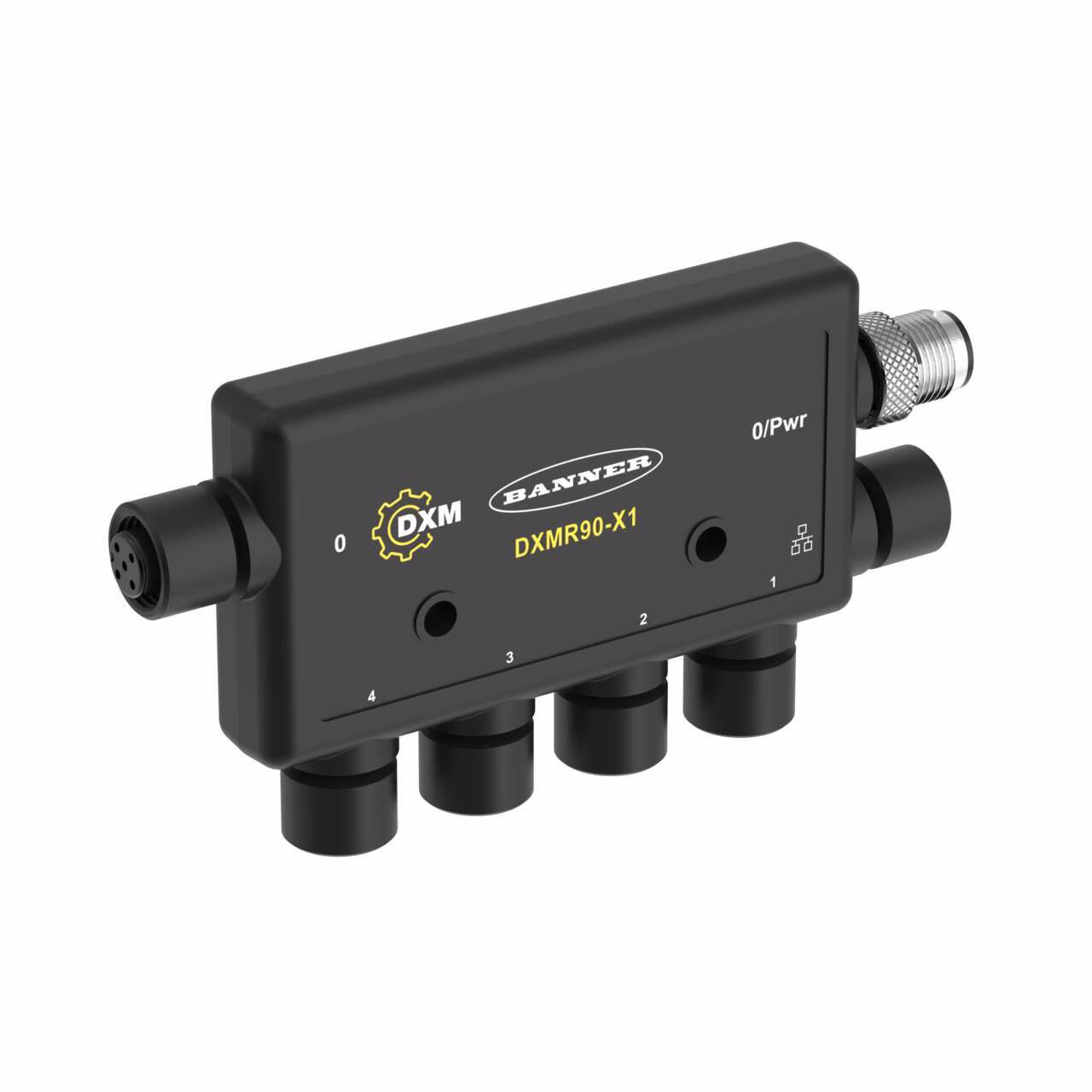

DXMR90 Series – Banner – DXMR90-X1
DXMR90 Industrial Controller
Power: 12-30 V dc
Female M12 (D-Code Ethernet)
IP65, IP67
Ethernet IP, Modbus TCP, Modbus RTU Client and Profinet
| 1-wire Serial Interface | No |
|---|---|
| Dimension Length (mm) | 90.0 |
| Ethernet Connector Type | M12 (D-Code Ethernet) |
| LCD Display | No |
| Cert | Brazil, Korea |
| Device type | Controller |
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Housing Style | Flat |
| Input/Output | Serial (Modbus) |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP65, IP67 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Environmental Rating (IP) | IP67; IP68 |
| Application.1 | Indicator Light, Pick-to-Light |
| Options Available | Modbus |
Description
DXMR90 Industrial Controller
Power: 12-30 V dc
Female M12 (D-Code Ethernet)
IP65, IP67
Ethernet IP, Modbus TCP, Modbus RTU Client and Profinet
