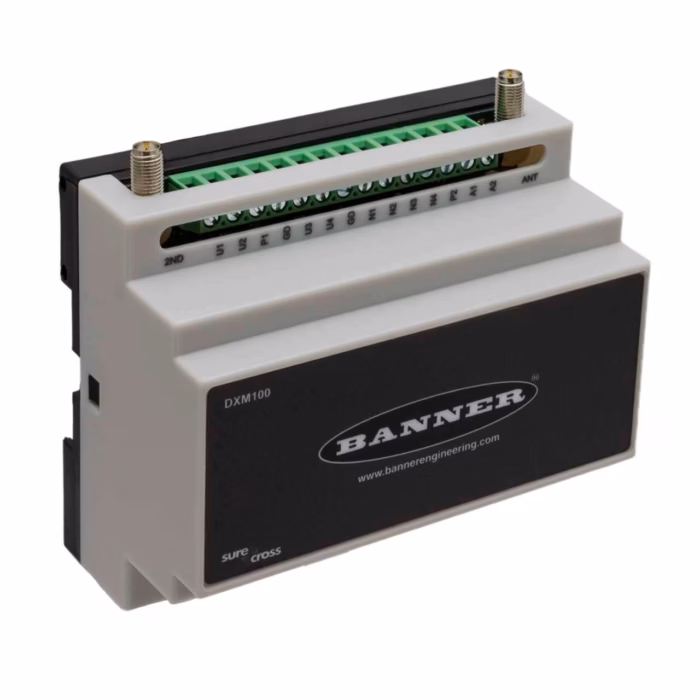

Gateways – Banner – DXM100-S1
DXM100 Modbus Slave Device
I/O Base Board Only
Inputs: 4 Universal
Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
RS-485
| 1-wire Serial Interface | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 85.0 |
| Max Temp Operating Conditions (C) | 60.0 |
| Min Operating Temperature (C) | -40.0 |
| Min Temp Operating Conditions (C) | -20.0 |
| Output Details | 4 NMOS Discrete, 2 Selectable Analog |
| Tree Topology | No |
| Cert | Australia/New Zealand, Brazil, Korea |
| Connection mode | 4 Universal Inputs |
| Device type | Modbus Slave Device |
| Digital output | 4 |
| EtherNet/IP | No |
| Housing Style | External Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | No |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Dimension Length (mm) | 100.0 |
| Discrete Output Type | NMOS |
| Number of Analog Outputs | 2.0 |
| Output type.1 | 0-10 V dc or 4-20 mA |
Description
DXM100 Modbus Slave Device
I/O Base Board Only
Inputs: 4 Universal
Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
RS-485
