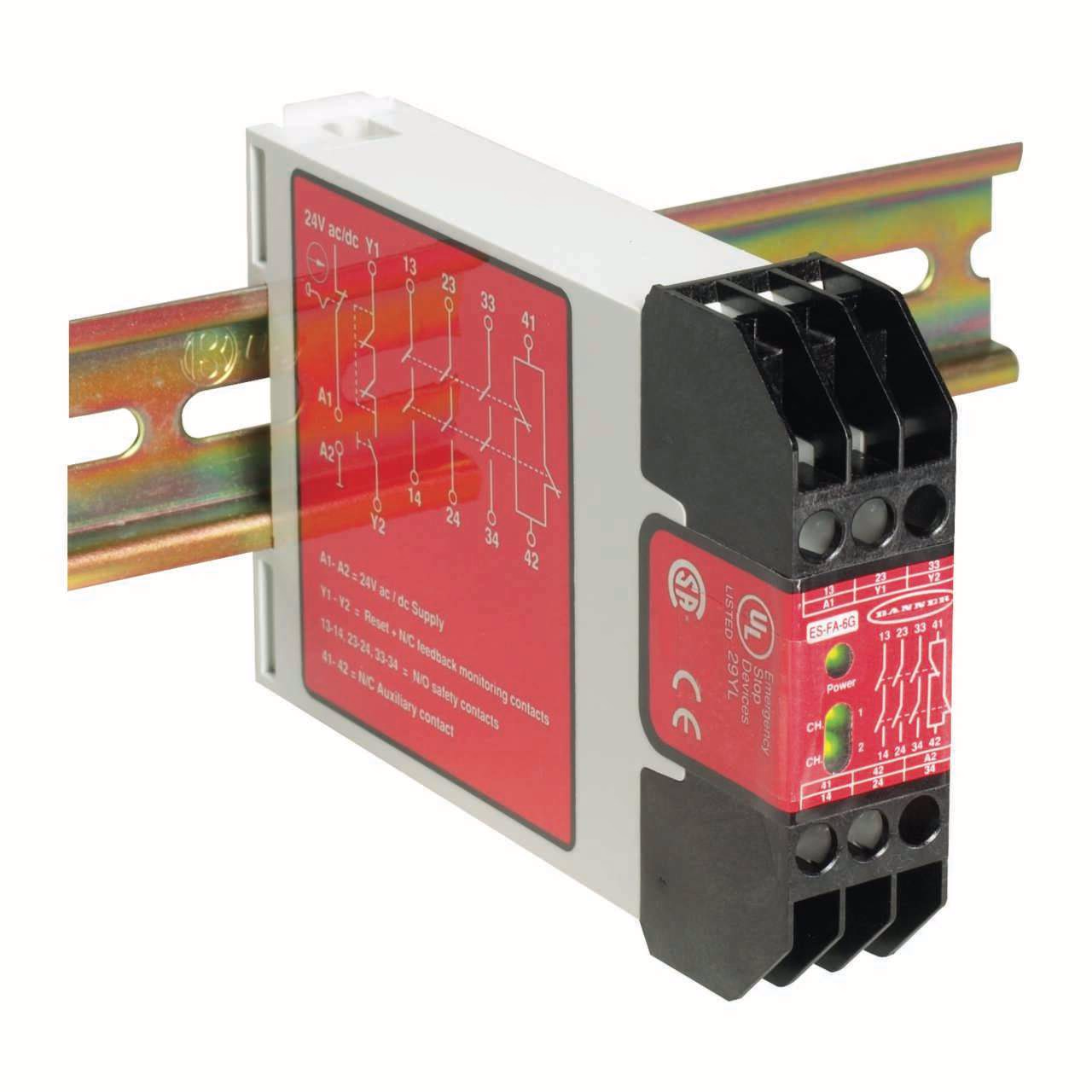

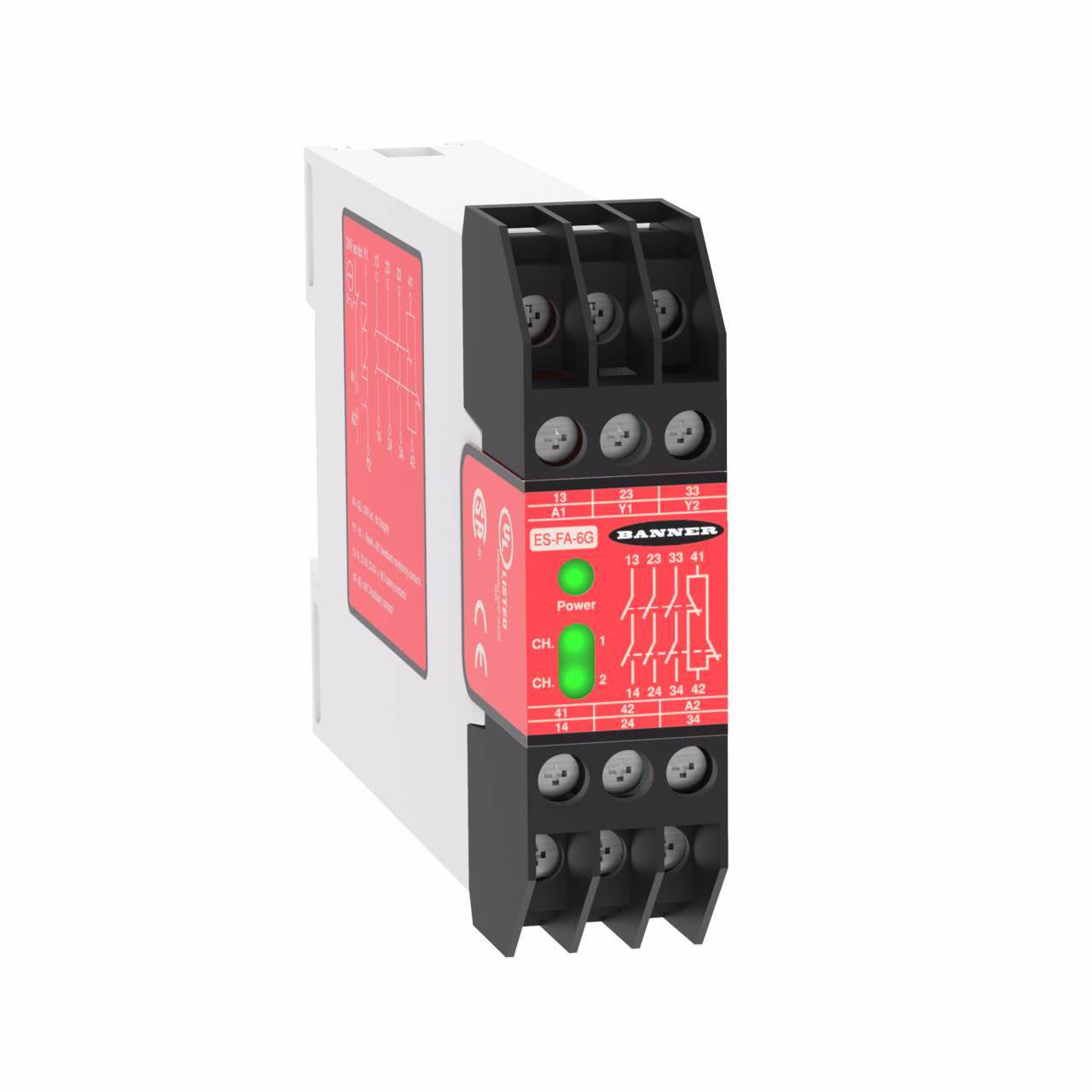

ES and GM Series E-Stop and Guard Monitoring Safety Relays – Banner – ES-FA-6G
Safety Relay Module for E-Stop/Rope Pull/Interlock
Supply Voltage: 24 V ac/dc
Safety Input: 1 Single Channel
Safety Output: 3 NO, 6 A; Aux Output: 1 NC, 6 A
Terminal Block: Fixed; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
| Dimension (H x W x D in mm) | 82 x 22.5 x 118 |
|---|---|
| E-Stops/Rope Pulls | Yes |
| Electrical Life (Cycles @ VA) | 100,000 @ 1500 VA |
| Expandable | No |
| Gate Switch (NC/NC) Input | No |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| In-Series Diagnostics | No |
| Independently Controlled Safe Outputs | 1 |
| Input Configuration | 1 NC |
| Input Resistance | 180 Ω max. per channel |
| LCD Display | No |
| Light Curtains/Scanner without EDM Input | No |
| Max Operating Temperature (C) | 50 |
| Mechanical Life (operations in millions) | 10 |
| Motor Speed | No |
| Muting | No |
| Non Safe Output Configuration | 1 NC |
| Non Safe Output Rating | Relay – 6 A |
| Number of Safe Inputs | 1 |
| Output Configuration | 3 NO |
| PCCC | No |
| Power Consumption | 2 W / 0.75 VA |
| Relative Humidity | 90% @ 50° C |
| Removable Terminals | No |
| Response Time (ms) | 35 (typical) |
| Safe Output Rating | Relay – 6 A |
| Safety Input - Reset | 20-30 mA @ 13-27 V ac/dc |
| Safety Input - Single Channel | 40-100 mA @ 13-27 V ac/dc |
| Safety Mat | No |
| Safety Module Type | Emergency Stop Module |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Device type | Safety Relay |
| EPLAN Original Sent Date | 08/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V ac/dc |
| Power Good Output | AC/DC Universal |
| PROFINET | No |
| Protection class shaft | IP20 |
| Vibration | 10-55 Hz at 0.35 mm |
Description
Safety Relay Module for E-Stop/Rope Pull/Interlock
Supply Voltage: 24 V ac/dc
Safety Input: 1 Single Channel
Safety Output: 3 NO, 6 A; Aux Output: 1 NC, 6 A
Terminal Block: Fixed; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
