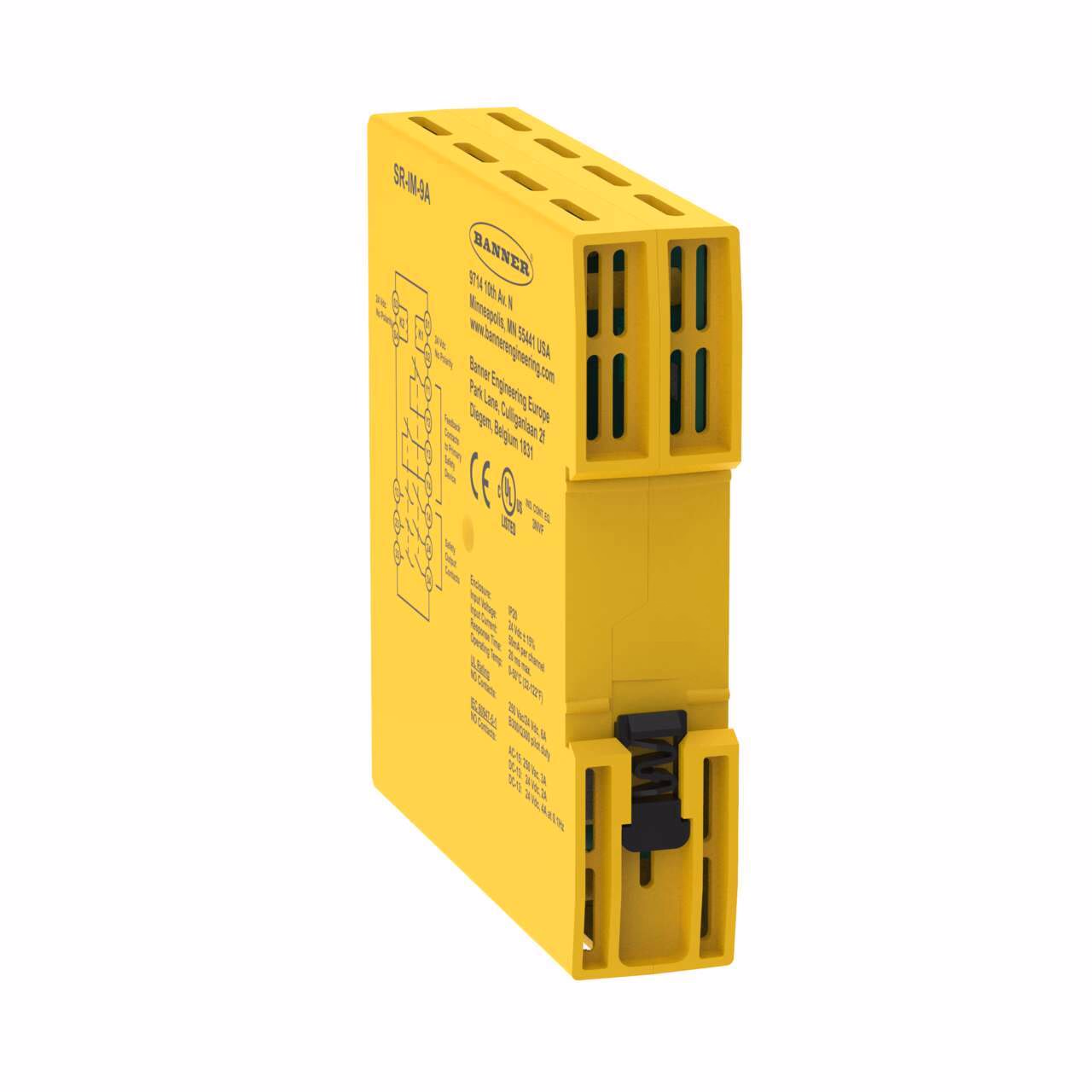

SR-IM Series Interface Safety Relays – Banner – SR-IM-9A
Relay Module for Safety Light Curtain/Control with EDM
Supply Voltage: 24 V dc
Safety Input: 1 Dual/Single Channel
Safety Output: 3 NO, 6 A; Aux Output: None
Spring Clamp Terminals; Width: 22.5 mm
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 50.0 |
| Mechanical Life (operations in millions) | 20.0 |
| PCCC | No |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 2.1 x 10-10 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Relay |
| EPLAN Original Sent Date | 08/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V dc |
| PL Rating | e |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Vibration | 10-55 Hz at 0.35 mm |
| Response Time (ms) | 20 (max.) |
| Power Consumption | 0.1 A |
| Safe Output Rating | Relay – 6 A |
| Light Curtains/Scanner without EDM Input | No |
| Removable Terminals | No |
| Splittable Safe Output | No |
| Terminal Type | Spring Clamp |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| Gate Switch (NC/NC) Input | No |
| Expandable | No |
| Dimension (H x W x D in mm) | 97.5 x 22.5 x 100 |
| Safety Module Type | Interface Module |
| Output Configuration | 3 NO |
| Independently Controlled Safe Outputs | 1.0 |
| Number of Safe Inputs | 1.0 |
| Input Configuration | 2 OSSD |
| Safety Mat | No |
| Motor Speed | No |
| Input Operation | Simultaneous or Concurrent |
| E-Stops/Rope Pulls | No |
| Muting | No |
| Electrical Life (Cycles @ VA) | 1,000,000 @ 450 VA |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 24 V dc +/- 15% |
| Options Available | Backlight |
Description
Relay Module for Safety Light Curtain/Control with EDM
Supply Voltage: 24 V dc
Safety Input: 1 Dual/Single Channel
Safety Output: 3 NO, 6 A; Aux Output: None
Spring Clamp Terminals; Width: 22.5 mm
