SC10 Safety Controller / Relay Hybrid – Banner – SC10-2roe

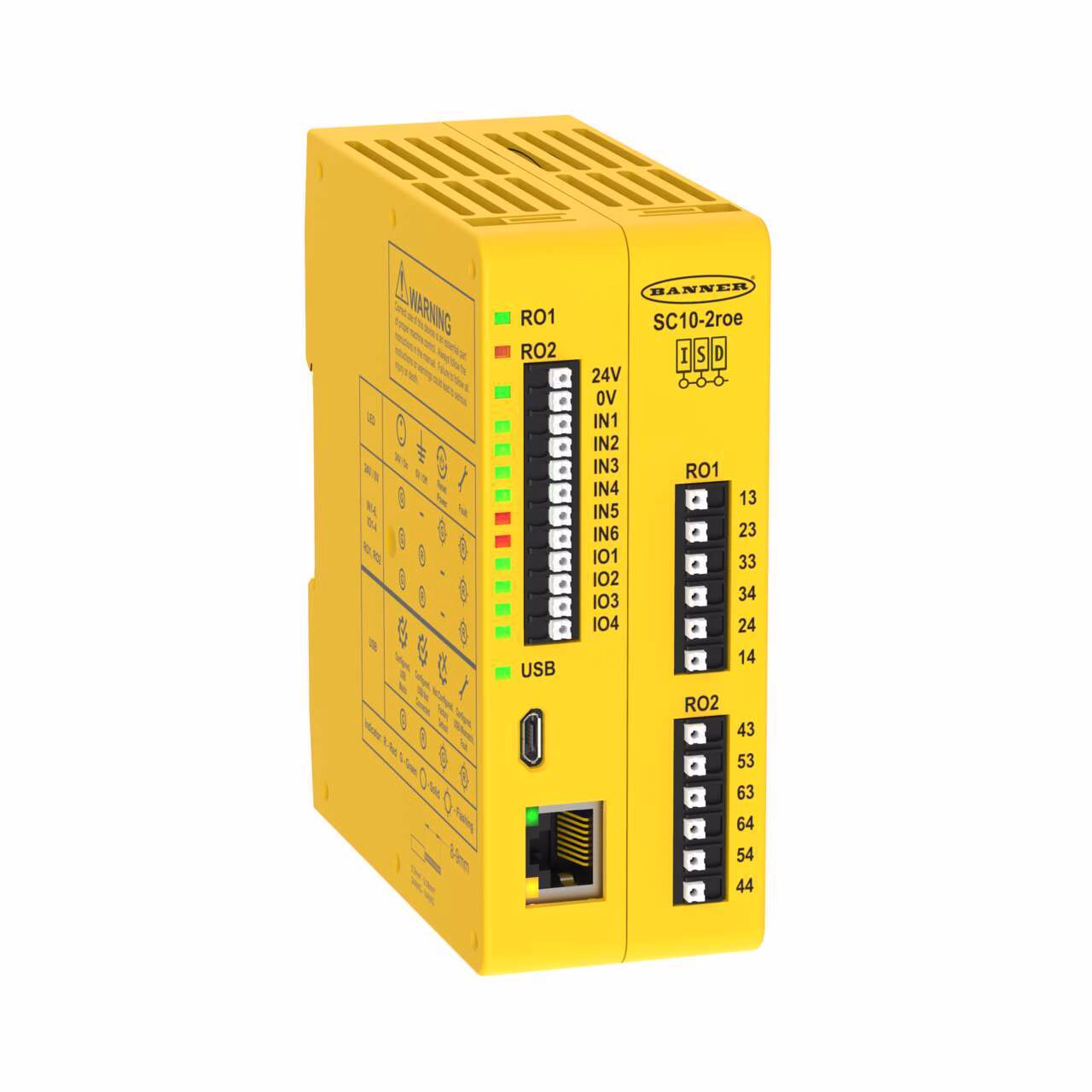

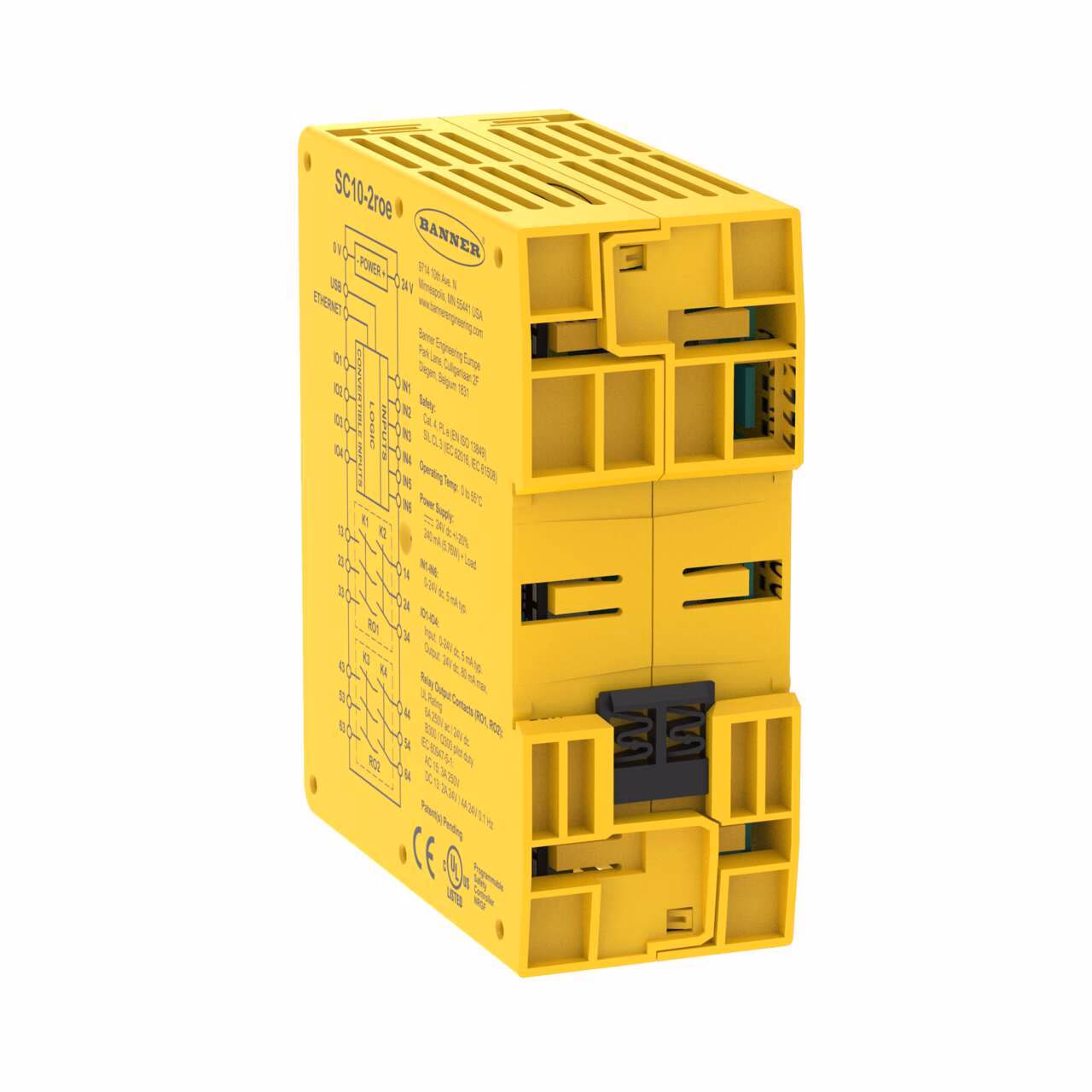

SC10-2roe Safety Controller
ISD Compatible (2 ISD Chains) 10 Inputs 2 Relay Outputs (3 NO, 6 A each)
Terminal LEDs; 4 Convertible Inputs
Push-In Spring Clamp Terminals; 24 V dc; 240-580 mA
| In-Series Diagnostics | Yes |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 55.0 |
| Mechanical Life (operations in millions) | 20.0 |
| PCCC | Yes |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 5.0 x 10-10 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Controller |
| EPLAN Original Sent Date | 06/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V dc |
| PL Rating | e |
| Power Good Output | DC |
| PROFINET | Yes |
| Protection class shaft | IP20 |
| Recovery Time | 250 (typical), 400 (max) |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Response Time (ms) | See Software Configuration Summary |
| Power Consumption | 0.24 A (no load, relays on), 0.53 A (full load, relays on) |
| Safe Output Rating | Relay – 6 A |
| Light Curtains/Scanner without EDM Input | Yes |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) maximum; overcurrent protected |
| Removable Terminals | No |
| Splittable Safe Output | No |
| Terminal Type | Spring Clamp |
| Gate Switch (NC/NO) Input | Yes |
| Gate Switch (OSSD) Input | Yes |
| Gate Switch (NC/NC) Input | Yes |
| Expandable | No |
| Dimension (H x W x D in mm) | 115 x 45 x 100 |
| Safety Module Type | Base Controller |
| Output Configuration | 2 sets of 3 NO |
| Independently Controlled Safe Outputs | 2.0 |
| Number of Safe Inputs | 10.0 |
| Input Configuration | Configurable |
| Safety Mat | Yes |
| Motor Speed | No |
| Input Operation | Simultaneous or Concurrent |
| E-Stops/Rope Pulls | Yes |
| Muting | Yes |
| Electrical Life (Cycles @ VA) | 50,000 @ full resistive load |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 15 – 30 V dc |
| Non Safe Output Configuration | Up to 4 PNP |
| Safety Input - Reset | 5-50 mA @ 24 V dc |
| Input Resistance | 150 Ω max. per lead |
| Safety Input - Single Channel | 5-50 mA @ 24 V dc |
| Two-Hand Controls | Yes |
| THC Rating | IIIC |
| Number of Convertible Inputs | 4.0 |
| Options Available | Backlight, Modbus |
Description
SC10-2roe Safety Controller
ISD Compatible (2 ISD Chains) 10 Inputs 2 Relay Outputs (3 NO, 6 A each)
Terminal LEDs; 4 Convertible Inputs
Push-In Spring Clamp Terminals; 24 V dc; 240-580 mA
