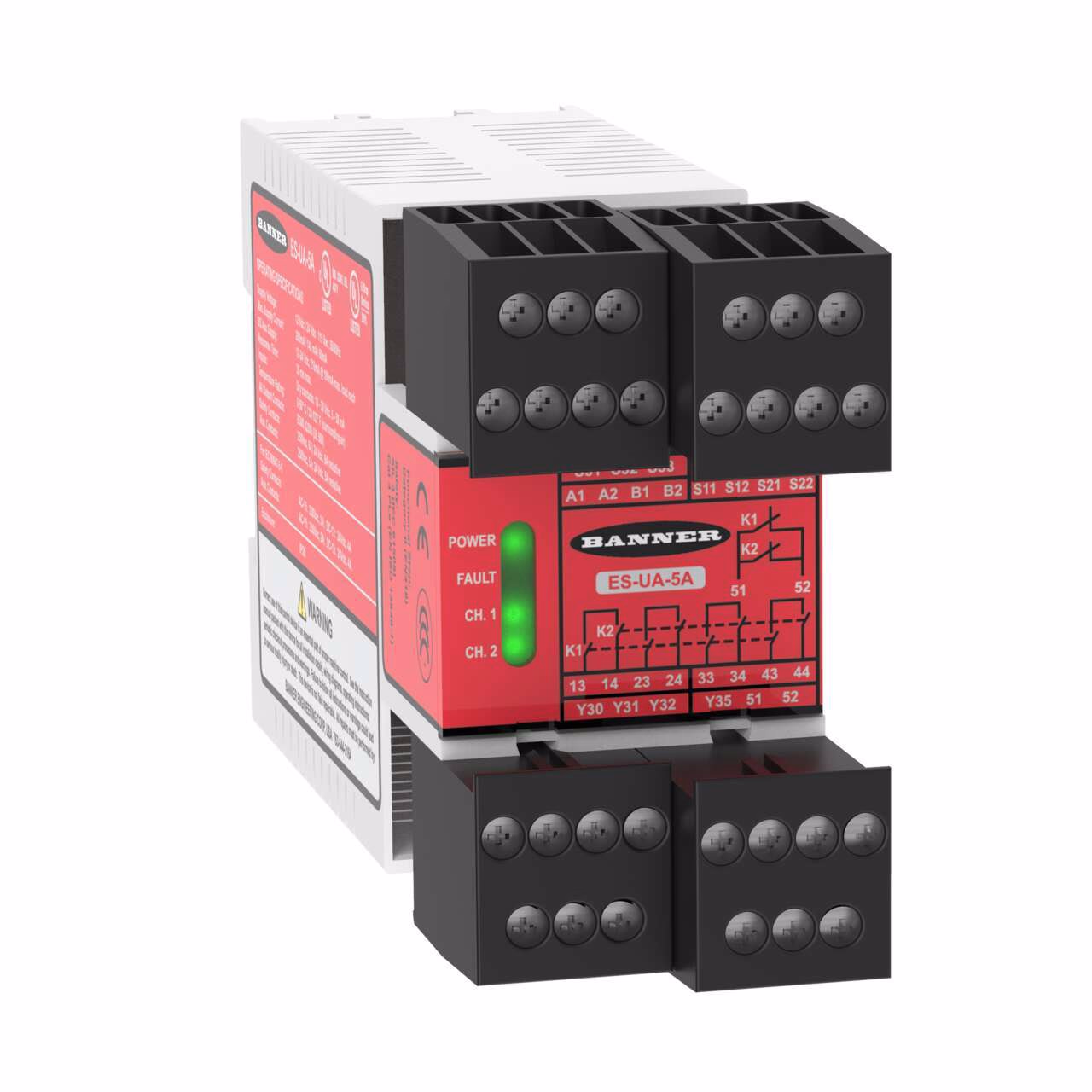

ES and GM Series E-Stop and Guard Monitoring Safety Relays – Banner – ES-UA-5A
Safety Relay Module for E-Stop/Rope Pull/Interlock
Supply Voltage: 115 V ac or 12-24 V dc
Safety Input: 1 Dual/Single Channel
Safety Output: 4 NO, 6 A; Aux Output: 1 NC, 5 A and 2 Solid-State 0.1 A
Terminal Block: Removable; Width: 45 mm
Self-Checking Circuitry, Auto/Manual Reset
| Dimension (H x W x D in mm) | 84 x 45 x 118 |
|---|---|
| E-Stops/Rope Pulls | Yes |
| Electrical Life (Cycles @ VA) | 1,000,000 @ 450 VA |
| Expandable | No |
| Gate Switch (NC/NC) Input | Yes |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| In-Series Diagnostics | No |
| Independently Controlled Safe Outputs | 1 |
| Input Configuration | 2 NC or 1 NC |
| Input Operation | Simultaneous or Concurrent |
| Input Resistance | 250 Ω max. per channel |
| LCD Display | No |
| Light Curtains/Scanner without EDM Input | No |
| Max Operating Temperature (C) | 50 |
| Mechanical Life (operations in millions) | 50 |
| Motor Speed | No |
| Muting | No |
| Non Safe Output Configuration | 1 NC, 2 PNP |
| Non Safe Output Rating | Relay – 5 A |
| Number of Safe Inputs | 1 |
| Output Configuration | 4 NO |
| PCCC | No |
| Power Consumption | 4 W / 7 VA |
| Recovery Time (ms) | 350 |
| Relative Humidity | 90% @ 50° C |
| Removable Terminals | Yes |
| Response Time (ms) | 25 (typical) |
| SISTEMA | PFHd = 5.8 x 10-8 |
| Safe Output Rating | Relay – 6 A |
| Safety Input - Reset | 20-50 mA @ 12-30 V dc (dry contact only) |
| Safety Mat | No |
| Safety Module Type | Emergency Stop Module |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Category acc. to ISO 13849-1:2008 | 4 |
| Device type | Safety Relay |
| EPLAN Original Sent Date | 08/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 115 V ac (A1-A2); 11-27.6 V dc (B1-B2) |
| PL Rating | e |
| Power Good Output | AC/DC Universal |
| PROFINET | No |
| Protection class shaft | IP20 |
| Recovery Time | 350 |
| Vibration | 10-55 Hz at 0.35 mm; 60 – 150 Hz at 5 g max. |
Description
Safety Relay Module for E-Stop/Rope Pull/Interlock
Supply Voltage: 115 V ac or 12-24 V dc
Safety Input: 1 Dual/Single Channel
Safety Output: 4 NO, 6 A; Aux Output: 1 NC, 5 A and 2 Solid-State 0.1 A
Terminal Block: Removable; Width: 45 mm
Self-Checking Circuitry, Auto/Manual Reset
