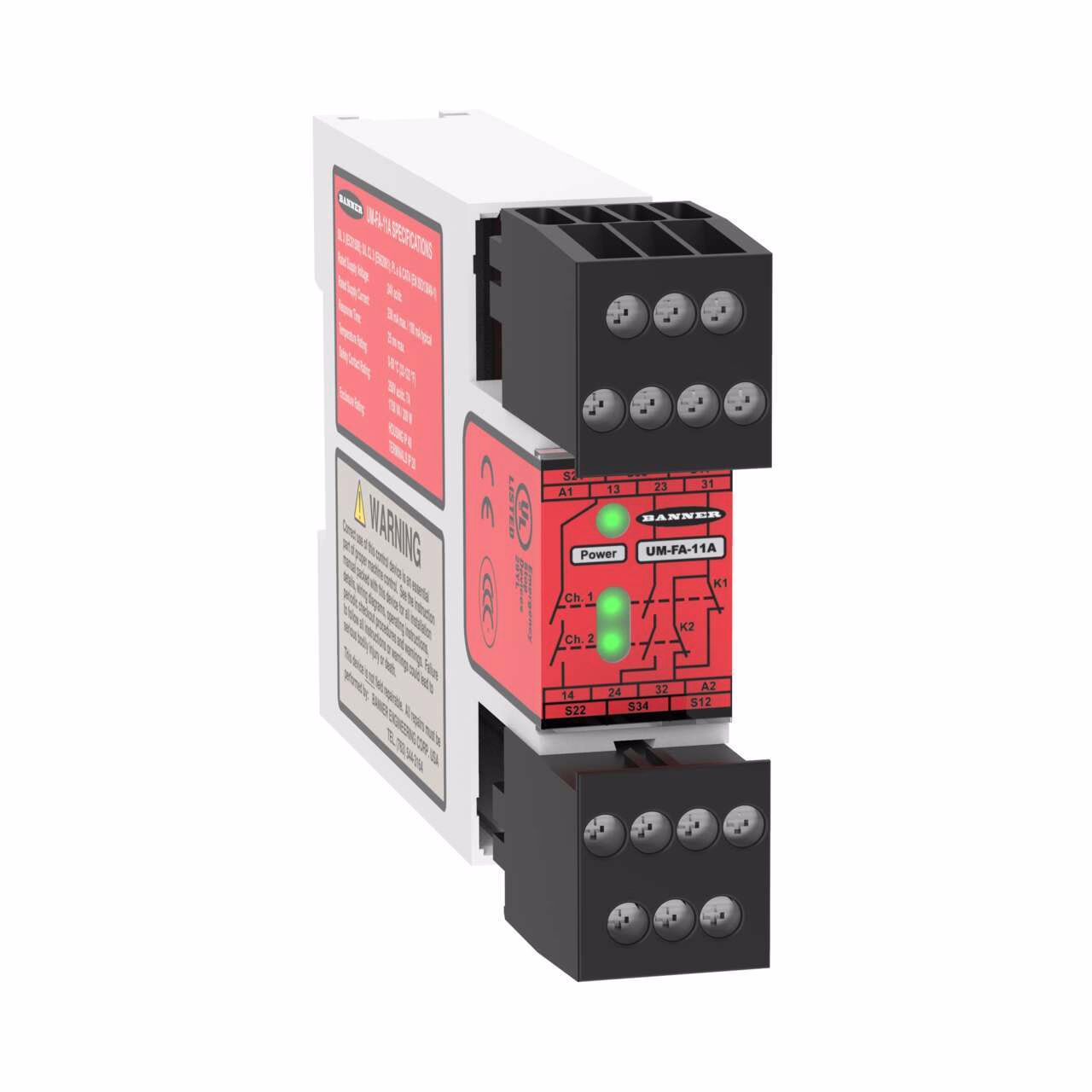

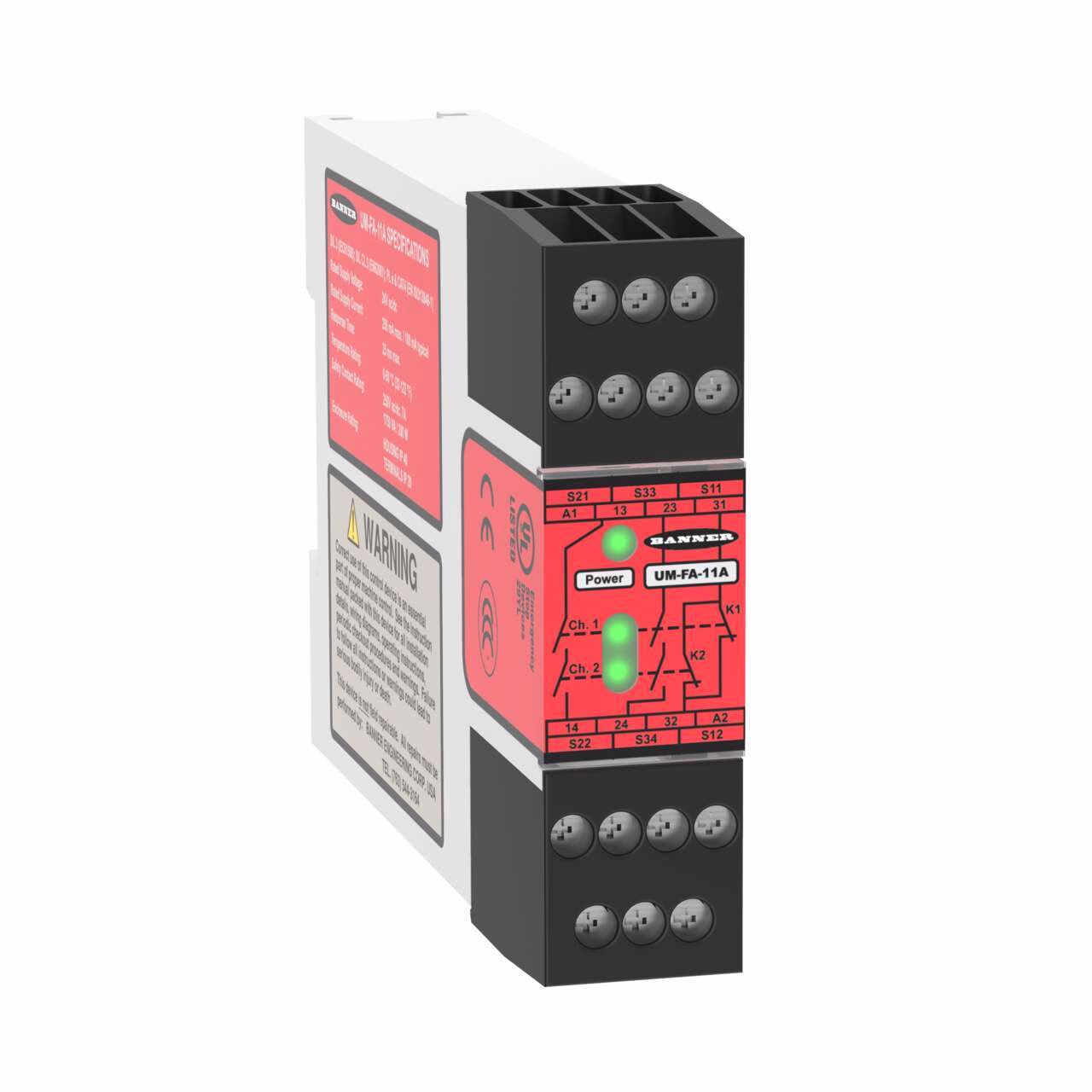

UM Series Universal Input Safety Relays – Banner – UM-FA-11A
Safety Relay Module for Safety Light Curtain/Scanner/E-Stop/Interlock
Supply Voltage: 24 V ac/dc
Safety Input: 1 Dual/Single Channel
Safety Output: 2 NO, 7 A; Aux Output: 1 NC, 7 A
Terminal Block: Removable; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 50.0 |
| Mechanical Life (operations in millions) | 20.0 |
| PCCC | No |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 5.0 x 10-10 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Relay |
| EPLAN Original Sent Date | 08/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V ac/dc |
| PL Rating | e |
| Power Good Output | AC/DC Universal |
| PROFINET | No |
| Protection class shaft | IP20 |
| Recovery Time | 250 |
| Vibration | 10-55 Hz at 0.35 mm |
| Response Time (ms) | 25 (typical) |
| Power Consumption | 2 W / 2 VA |
| Safe Output Rating | Relay – 7 A |
| Light Curtains/Scanner without EDM Input | Yes |
| Non Safe Output Rating | Relay – 7 A |
| Removable Terminals | Yes |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | Yes |
| Gate Switch (NC/NC) Input | Yes |
| Expandable | No |
| Dimension (H x W x D in mm) | 84 x 22.5 x 118 |
| Safety Module Type | Universal Module |
| Output Configuration | 2 NO |
| Independently Controlled Safe Outputs | 1.0 |
| Number of Safe Inputs | 1.0 |
| Input Configuration | 2 OSSD, 2 NC, or 1 NC |
| Safety Mat | No |
| Motor Speed | No |
| Input Operation | Simultaneous or Concurrent |
| E-Stops/Rope Pulls | Yes |
| Muting | No |
| Electrical Life (Cycles @ VA) | 1,000,000 @ 450 VA |
| Safety Input - Dual Channel (Solid-State) | 5-20 mA @ 18-28 V dc (PNP) |
| Non Safe Output Configuration | 1 NC |
| Safety Input - Reset | 40-100 mA @ 24 V ac/dc +/- 10% |
| Input Resistance | 100 Ω max. per channel |
| Safety Input - Single Channel | 40-100 mA @ 24 V ac/dc +/- 10% |
| Recovery Time (ms) | 250.0 |
| Options Available | Backlight |
Description
Safety Relay Module for Safety Light Curtain/Scanner/E-Stop/Interlock
Supply Voltage: 24 V ac/dc
Safety Input: 1 Dual/Single Channel
Safety Output: 2 NO, 7 A; Aux Output: 1 NC, 7 A
Terminal Block: Removable; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
