MMD Series Muting Safety Relays – Banner – MMD-TA-11B

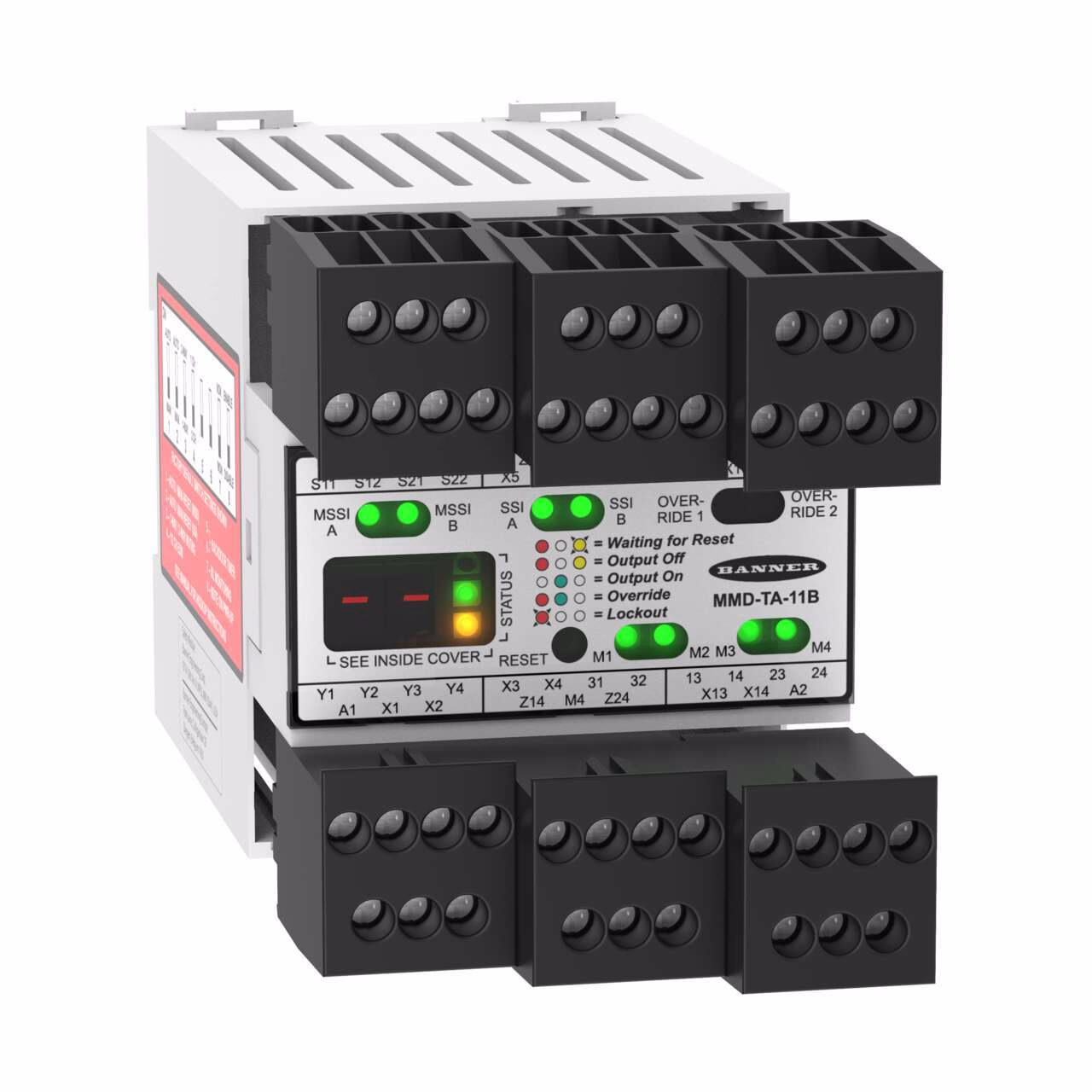

Safety Relay Muting Module
Supply Voltage: 24 V ac/dc
Muteable Safety Input: 1 Dual Channel
Non-Muteable Safety Input: 1 Dual Channel
Safety Output: 2 NO, 6 A; Aux Output: 1 NC, 0.25 A
Terminal Block: Removable; Width: 67.5 mm
Self-Checking Circuitry, Auto/Manual Reset, EDM, Muting
| Dimension (H x W x D in mm) | 84 x 67.5 x 118 |
|---|---|
| E-Stops/Rope Pulls | Yes |
| Electrical Life (Cycles @ VA) | 120,000 @ 1380 VA |
| Expandable | No |
| Gate Switch (NC/NC) Input | Yes |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | Yes |
| In-Series Diagnostics | No |
| Independently Controlled Safe Outputs | 1 |
| Input Configuration | 2 NC, 1 NC, or 2 PNP |
| Input Operation | Simultaneous within 3.0 s |
| Input Resistance | 400 Ω max. per channel |
| LCD Display | No |
| Light Curtains/Scanner without EDM Input | Yes |
| Max Operating Temperature (C) | 50 |
| Mechanical Life (operations in millions) | 50 |
| Motor Speed | No |
| Muting | Yes |
| Non Safe Output Configuration | 1 NC |
| Non Safe Output Rating | Relay – 6 A |
| Number of Safe Inputs | 2 |
| Output Configuration | 2 NO |
| PCCC | No |
| Power Consumption | 0.3 A |
| Relative Humidity | 95% @ 50° C |
| Removable Terminals | Yes |
| Response Time (ms) | 20 (max.) |
| SISTEMA | PFHd = 2 x 10-9 |
| Safe Output Rating | Relay – 6 A |
| Safety Input - Dual Channel (Solid-State) | 10-50 mA @ 15-30 V dc |
| Safety Input - Reset | 10-50 mA @ 15-30 V dc |
| Safety Mat | No |
| Safety Module Type | Muting Module |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Category acc. to ISO 13849-1:2008 | 4 |
| Device type | Safety Relay |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V dc |
| PL Rating | e |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Vibration | 10-55 Hz at 0.35 mm |
| Options Available | Backlight |
Description
Safety Relay Muting Module
Supply Voltage: 24 V ac/dc
Muteable Safety Input: 1 Dual Channel
Non-Muteable Safety Input: 1 Dual Channel
Safety Output: 2 NO, 6 A; Aux Output: 1 NC, 0.25 A
Terminal Block: Removable; Width: 67.5 mm
Self-Checking Circuitry, Auto/Manual Reset, EDM, Muting
