Gateways – Banner – DXM150-B2R4

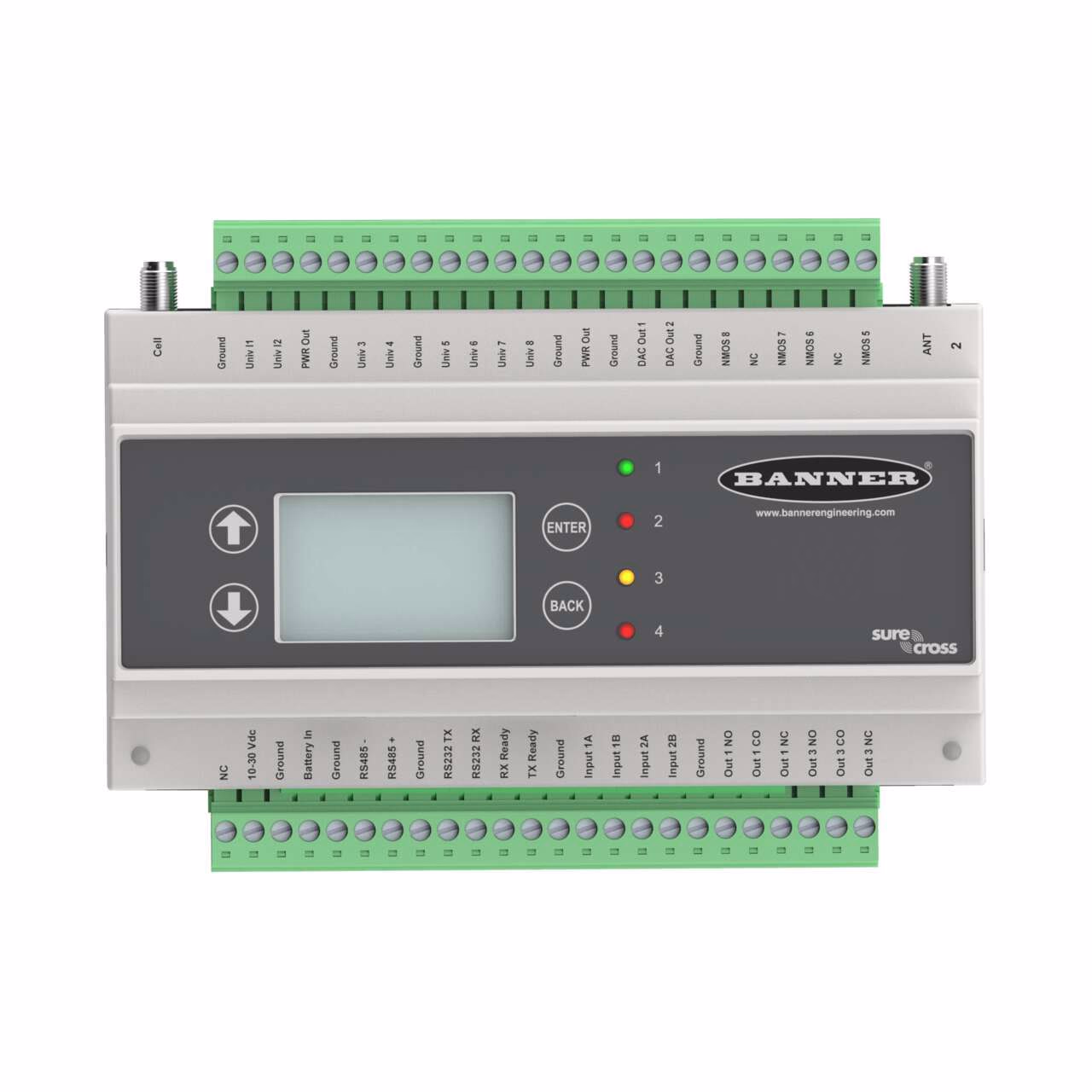

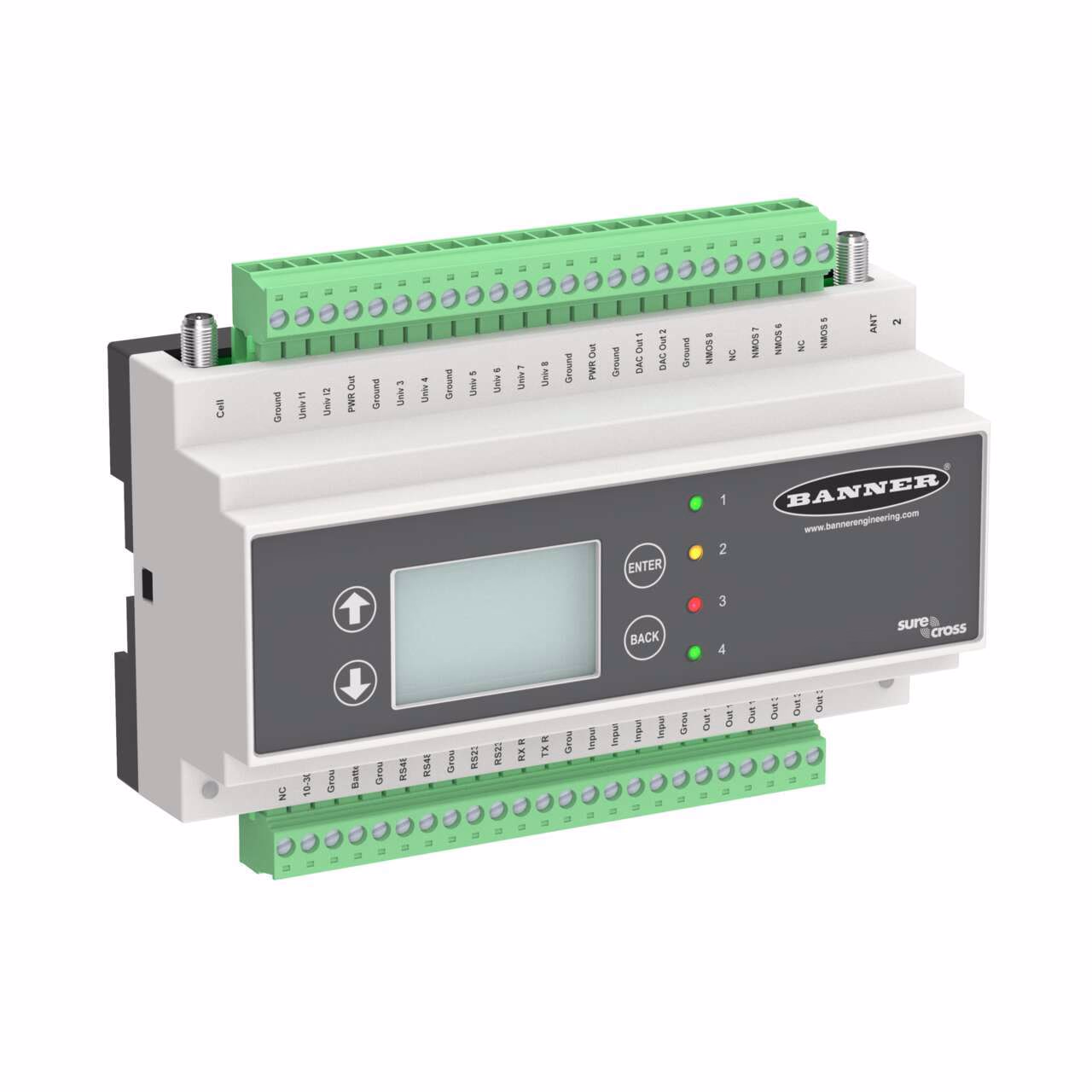

DXM150 Controller
MultiHop Radio 2.4 GHz 65 mW
Inputs: 2 Discrete, 8 Universal
Outputs: 8 Discrete, 2 Analog
SAM4 Processor, LCD Display
RS-485, Ethernet, USB; Solar/Battery Controller
| 1-wire Serial Interface | No |
|---|---|
| Dimension Length (mm) | 150 |
| Discrete Input Type | NPN/PNP |
| Discrete Output Type | NPN/PNP |
| Ethernet Connector Type | RJ45 Jack |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 80 |
| Min Temp Operating Conditions (C) | -20 |
| Number of Analog Inputs | Yes |
| Number of Analog Outputs | 2 |
| Number of Discrete Inputs | 2 |
| On-Board Memory (MB) | 2 |
| Output Details | 8 PNP/NPN Selectable, 2 Analog |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Processing Speed (MHz) | 100 |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Thailand, US |
| Connection mode | 2 Isolated discrete and 8 Universal |
| Device type | Wireless Controller with MultiHop Radio |
| Digital output | 8 |
| EtherNet/IP | Yes |
| Housing Style | External Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | Yes |
| RS-232 | Yes |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Output type.1 | 0-10 V dc or 4-20 mA |
| Application.1 | Indicator Light |
| Options Available | Modbus |
Description
DXM150 Controller
MultiHop Radio 2.4 GHz 65 mW
Inputs: 2 Discrete, 8 Universal
Outputs: 8 Discrete, 2 Analog
SAM4 Processor, LCD Display
RS-485, Ethernet, USB; Solar/Battery Controller
