Hinge Safety Interlock Switches – Banner – SI-HGZ63FQDR

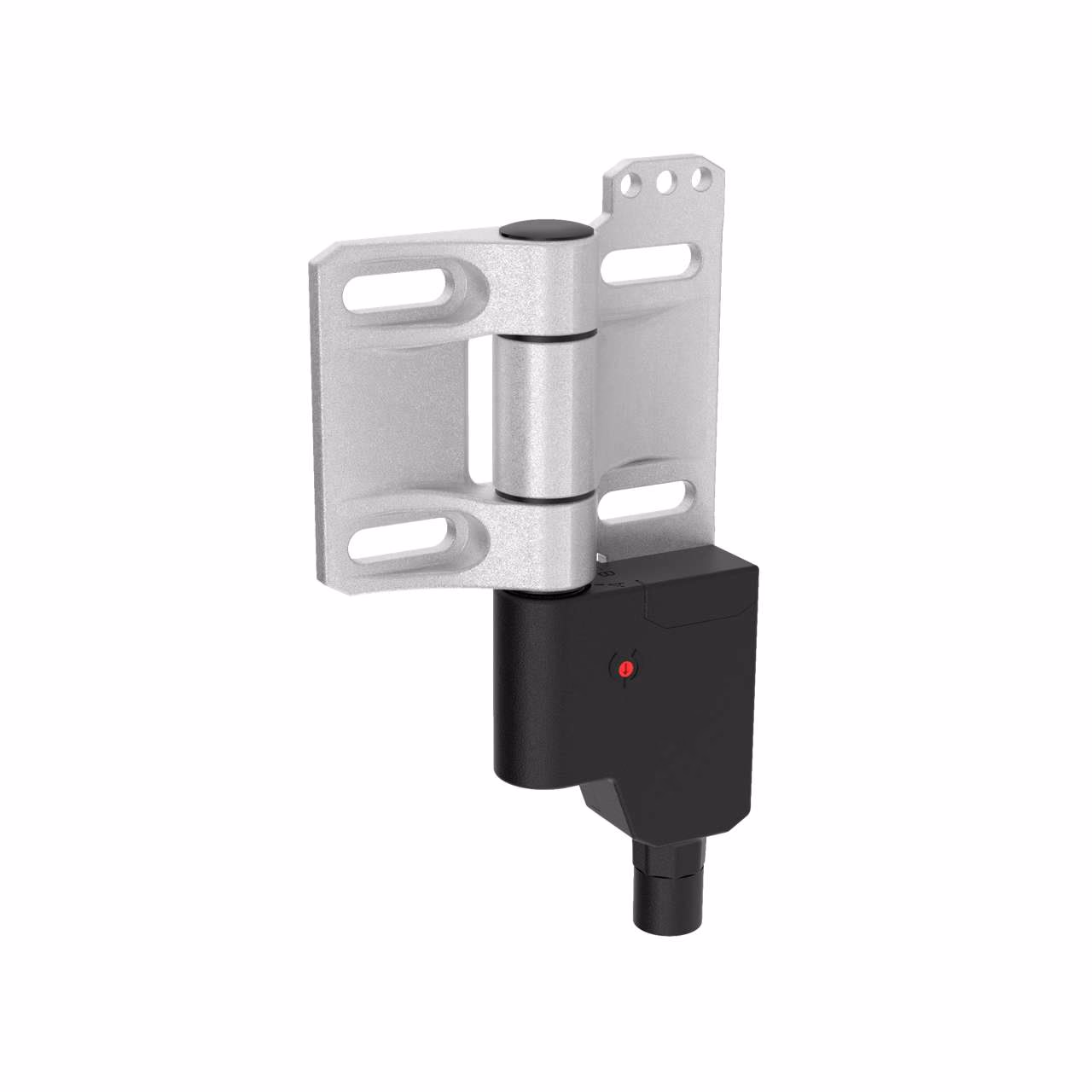

Hinge Safety Interlock Switch
Die-Cast Zinc
Inline QD; Switch Mounted Right Side w/QD Down
2 NC/1 NO; Micro M12 6-pin (Dual Key) QD
| Actuator (Safety) Contacts | 2 NC/1 NO |
|---|---|
| Auxilliary Output | No |
| Device Size | 147 x 82 x 20 |
| ISD Connect Compatible | Yes |
| In-Series Diagnostics | No |
| Mechanical Life (operations in millions) | 1 |
| Range of Motion | 270 |
| SISTEMA | B10d = 2 million |
| Safety Category | Cat 4 |
| Switch Point Positioning | Re-Positionable |
| Switch Style | Contact |
| Coding level/tamper protection | Uncoded |
| Design | Hinge |
| Device type | Hinge |
| Feature | Quick Disconnect, Washdown Rated |
| Functional safety (SIL/PL) | SIL CL 3 |
| Item Status | RELEASED |
| Number of pins | 6 |
| Output type | Contacts |
| PL Rating | PL e |
| Port | M12 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Zinc Die Cast/Thermoplastic |
| Min Op. Temperature (C) | -25 |
| Max Op. Temperature (C) | 70 |
| Voltage supply connection | M12 |
Description
Hinge Safety Interlock Switch
Die-Cast Zinc
Inline QD; Switch Mounted Right Side w/QD Down
2 NC/1 NO; Micro M12 6-pin (Dual Key) QD
