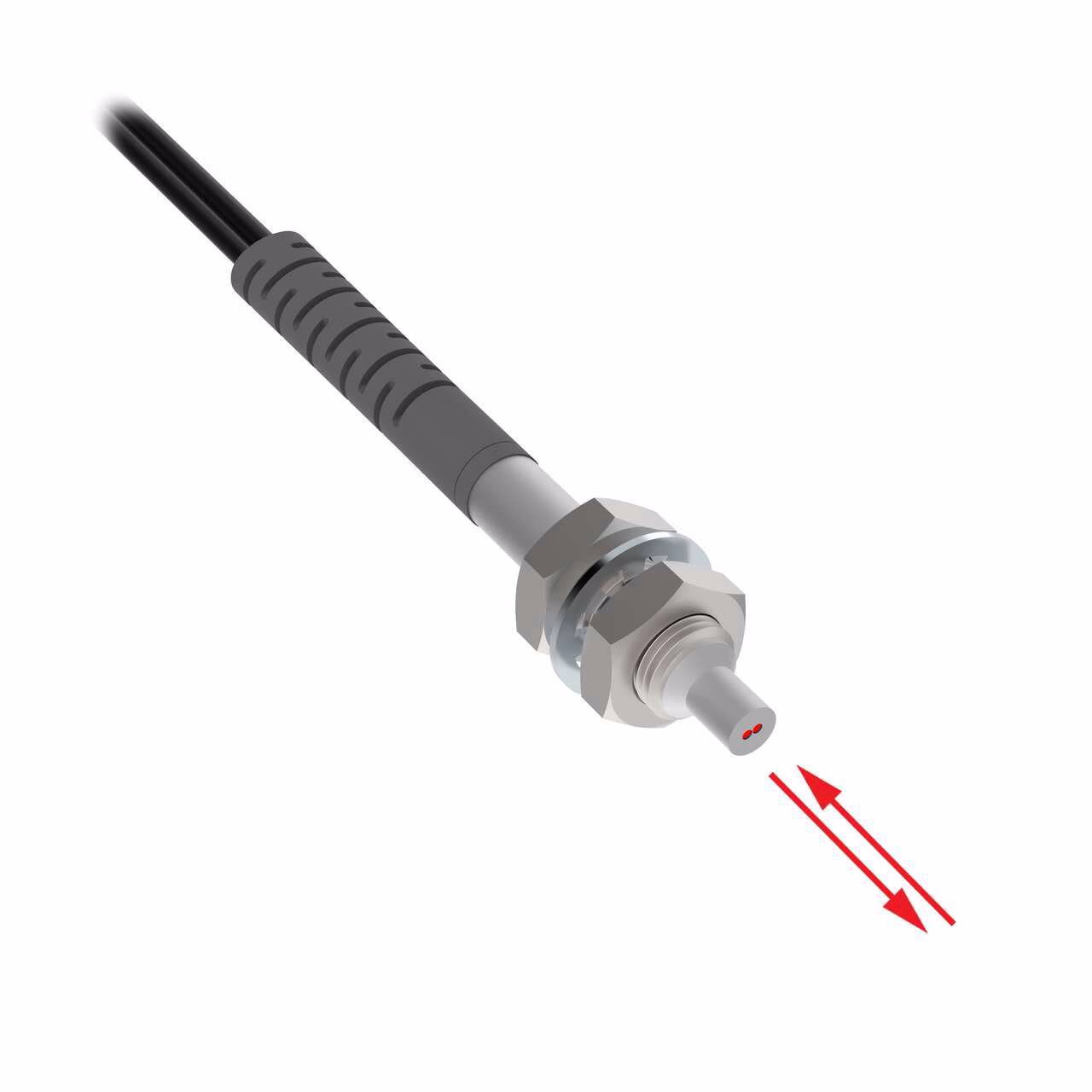

Inline Fiber Optics – Banner – PBT26UM4-VL
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm; Fiber Length 2 m
Thread M4
Flex Relief
Free Cut
Vantage Line
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | M2.6 |
| Fiber Sensing End Size - Mounting Area | M4 |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | 98 |
| Max Range: DF-G3 (mm) | >100mm – <=500mm |
| Minimum Repeat Bending Endurance | 1000.0 |
| Sensing End Material (Specific) | Nickel-Plated Brass |
| Sensing End Segment 1 | Thread |
| Sensing End Segment 2 | Thread |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 15.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | Yes |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 4.0 |
| Max Temp (C) | 70.0 |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 0.5 |
| Max Distance: DF-G1 (mm) | 60 |
| Max Distance: DF-G3 (mm) | 470 |
| Measured Max Distance (mm) | 60 |
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm; Fiber Length 2 m
Thread M4
Flex Relief
Free Cut
Vantage Line
