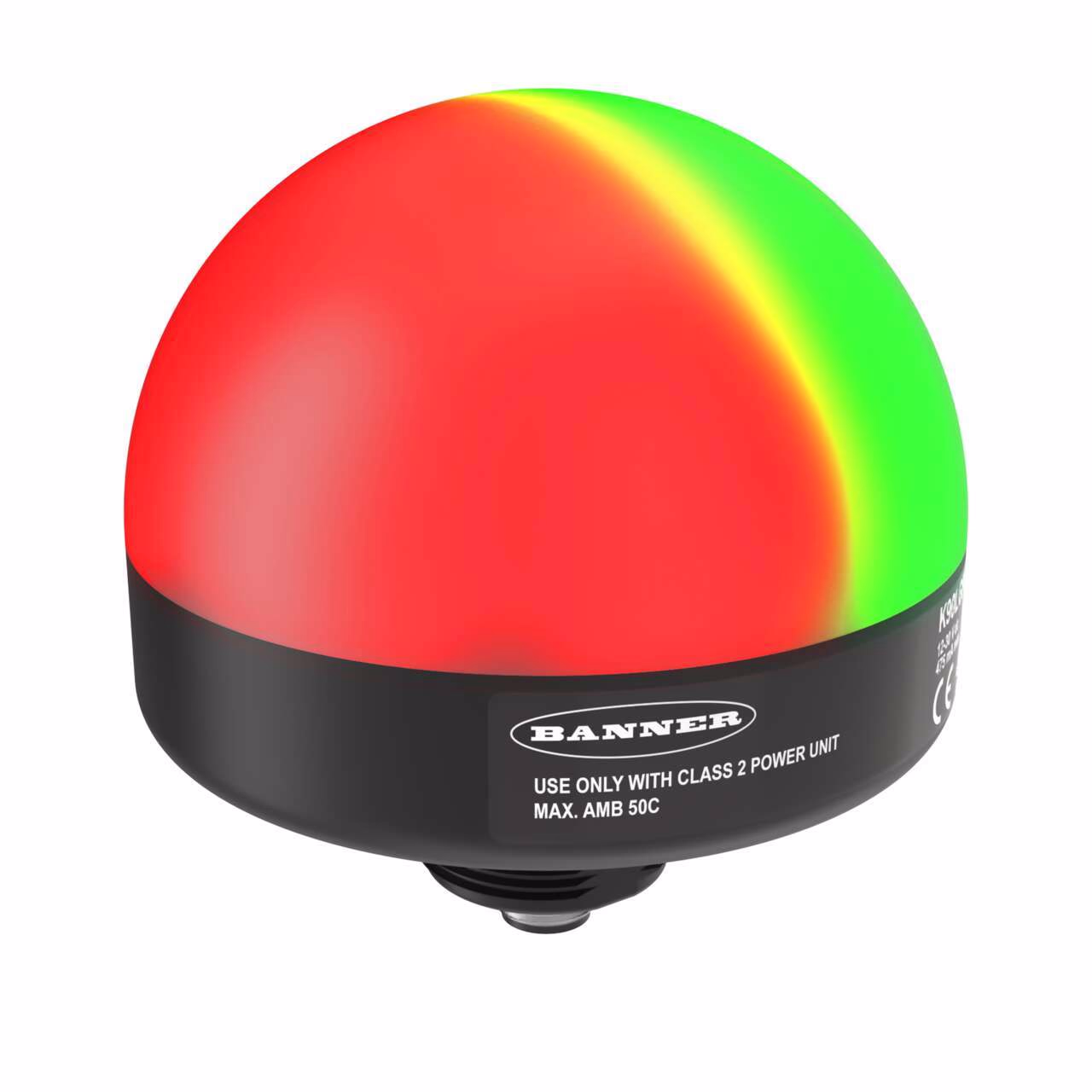

K90 Pro Series – Banner – K90PLRGB7Q
K90 Pro Series: 7-color RGB Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
| Color 5 - Wavelength/Color Temp/Coordinates | 5950K |
|---|---|
| Color Option 2 | Green |
| Color Option 5 | White |
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Lumens Color 5 | 107.9 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Wire Selectable Function | Multi-Function |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 530 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color 4 - Wavelength/Color Temp/Coordinates | 0.477, 0.466 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | Red |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 39.2 |
| Lumens Color 2 | 81.2 |
| Lumens Color 3 | 14.0 |
| Lumens Color 4 | 98.7 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 7 |
| Number of Conductors | 5.0 |
| Operating voltage | 10-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 90.0 x 87.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 415.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 250.0 |
| Lumens Color 6 | 49.9 |
| Color Option 6 | Magenta |
| Color Option 7 | Cyan |
| Color 7 - Wavelength/Color Temp/Coordinates | 0.164, 0.343 |
| Lumens Color 7 | 93.0 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.404, 0.186 |
Description
K90 Pro Series: 7-color RGB Indicator
Voltage: 12-30 V dc; Housing: Polycarbonate; IP67
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
