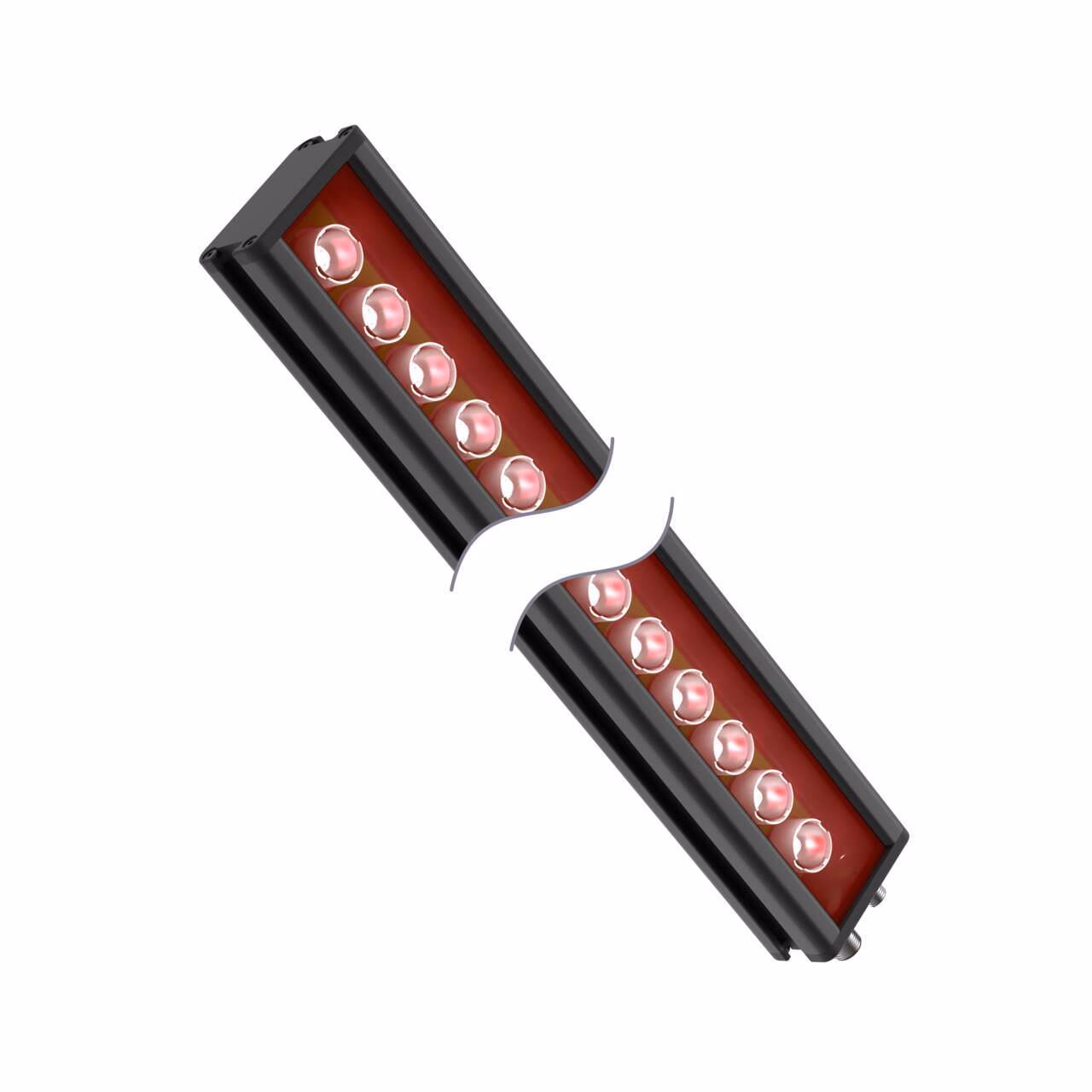

Linear Array Lights – Banner – LEDILA580XP6-PHQ
LINEAR ARRAY IR ACRYLIC 2 FT DIMMABLE
| Color | Infrared |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Intensity Adjustment | Potentiometer and Analog |
| Lens Focusing Angle/FOV (degrees) | 6.5 |
| QD Type/Cable Length | M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Bar Light |
| Feature | Quick Disconnect |
| Housing Style | Linear Strip |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Number of Conductors | 5.0 |
| Physical Dimensions (LxWxH or DxH mm) | 623.6 x 59.4 x 32.6 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Receptacle housing material B | Anodized Aluminum |
| Voltage supply connection | Integral QD |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 2000.0 |
Description
LINEAR ARRAY IR ACRYLIC 2 FT DIMMABLE
