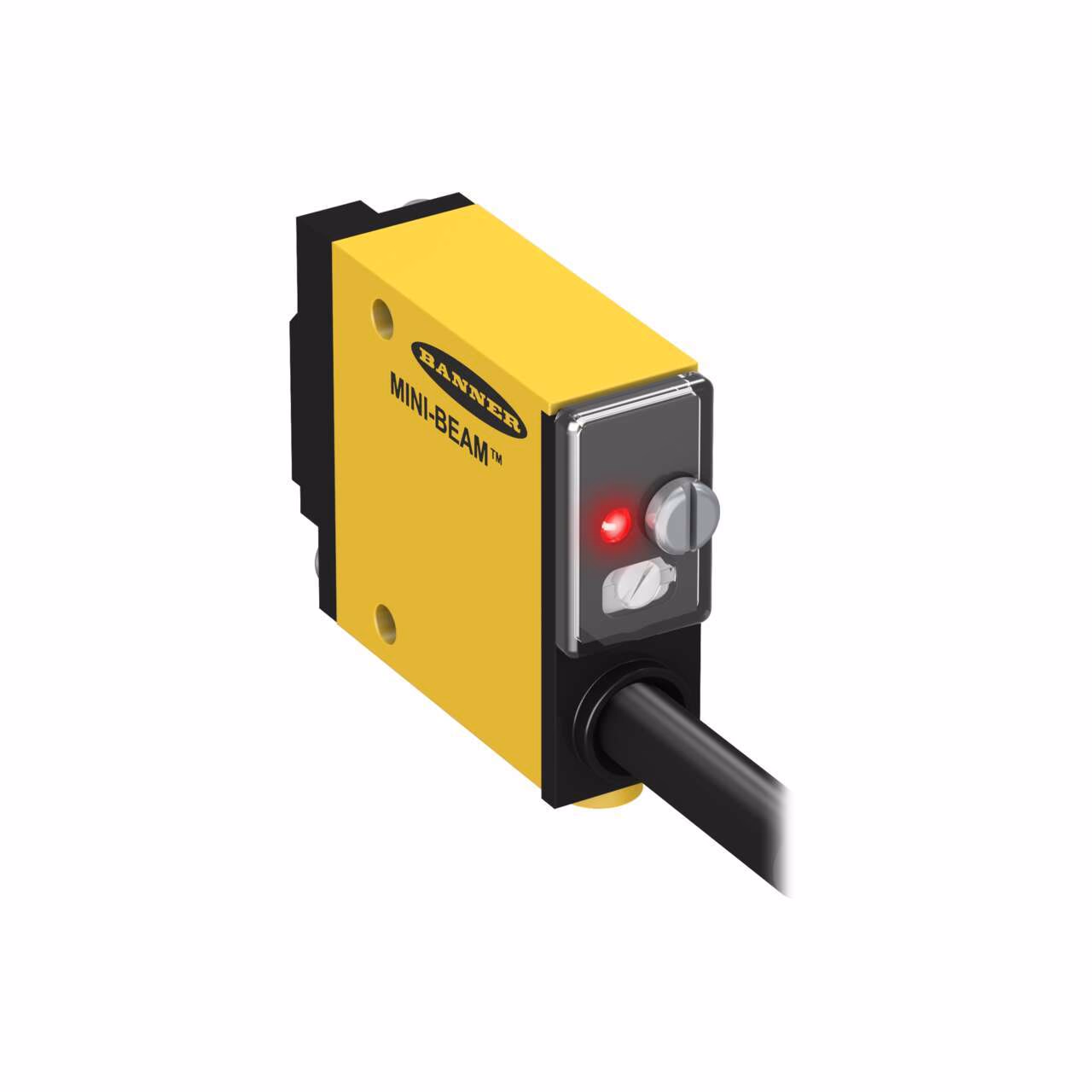

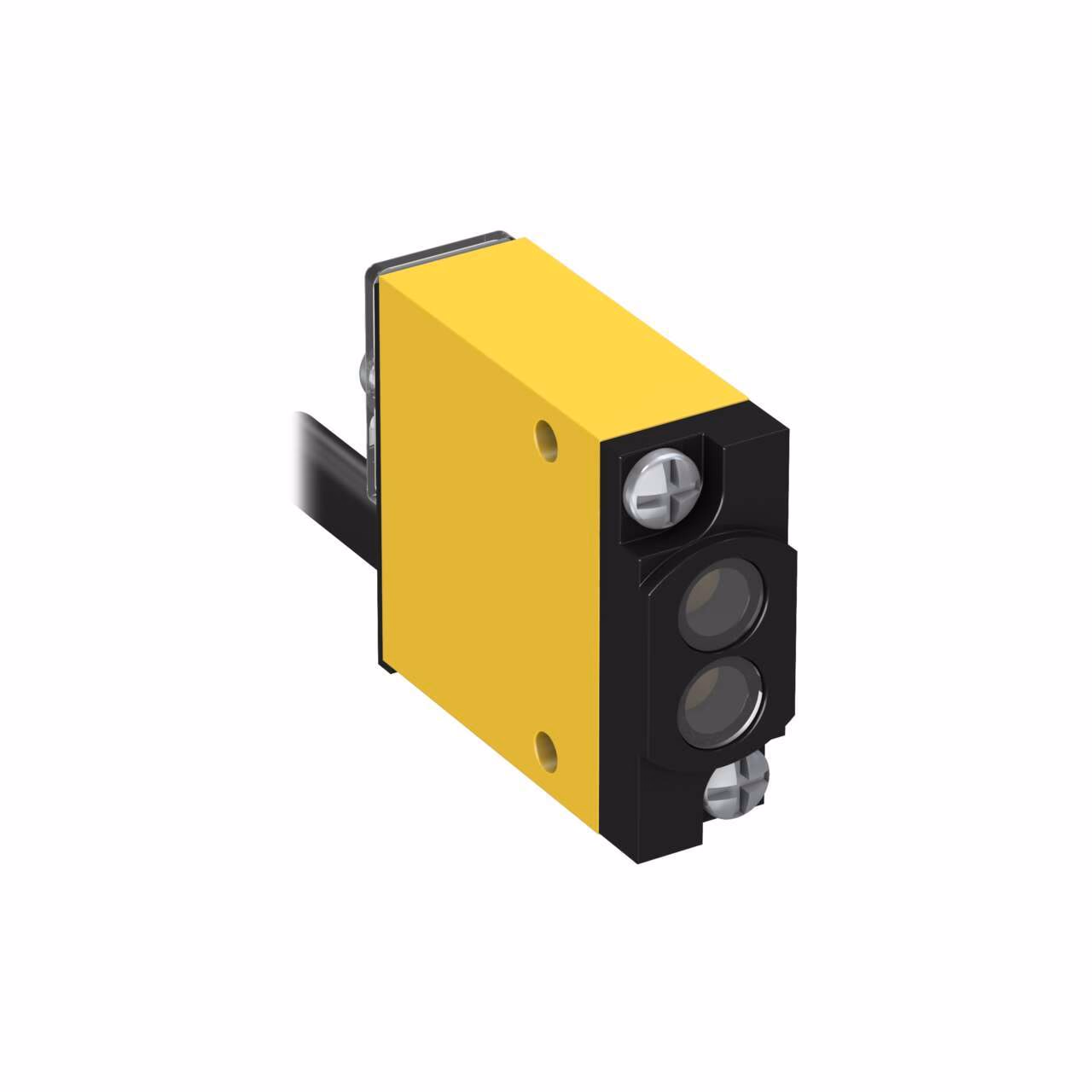

Mini-Beam Series Industry Standard Sensor – Banner – SM312DBZ W/30
MINI-BEAM: Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
9 m (30 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Proximity |
| Adjustments | Potentiometer |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| Feature | Encapsulated |
| Homerun Exit Location | 1 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 9 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 300 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
Description
MINI-BEAM: Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
9 m (30 ft) Cable
