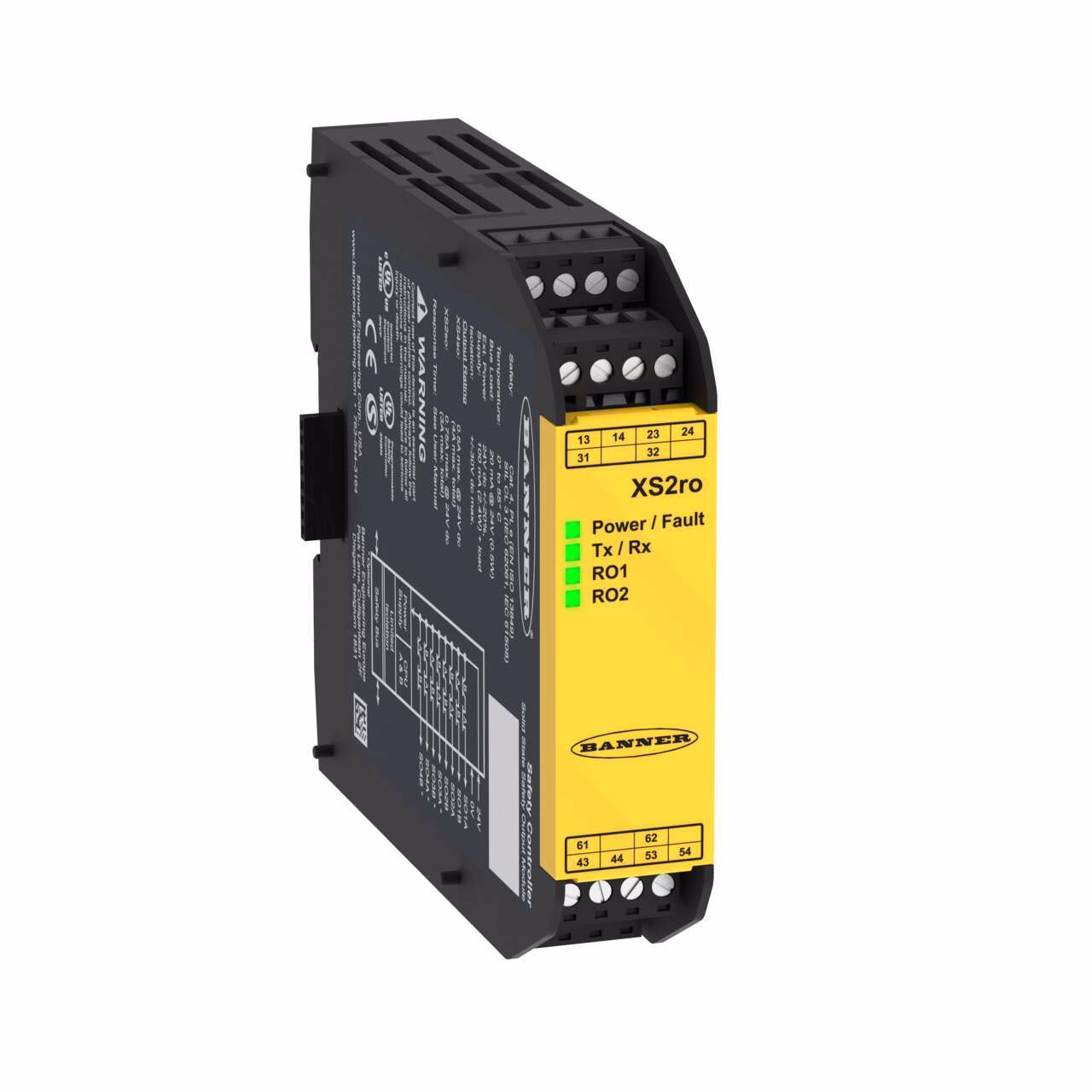

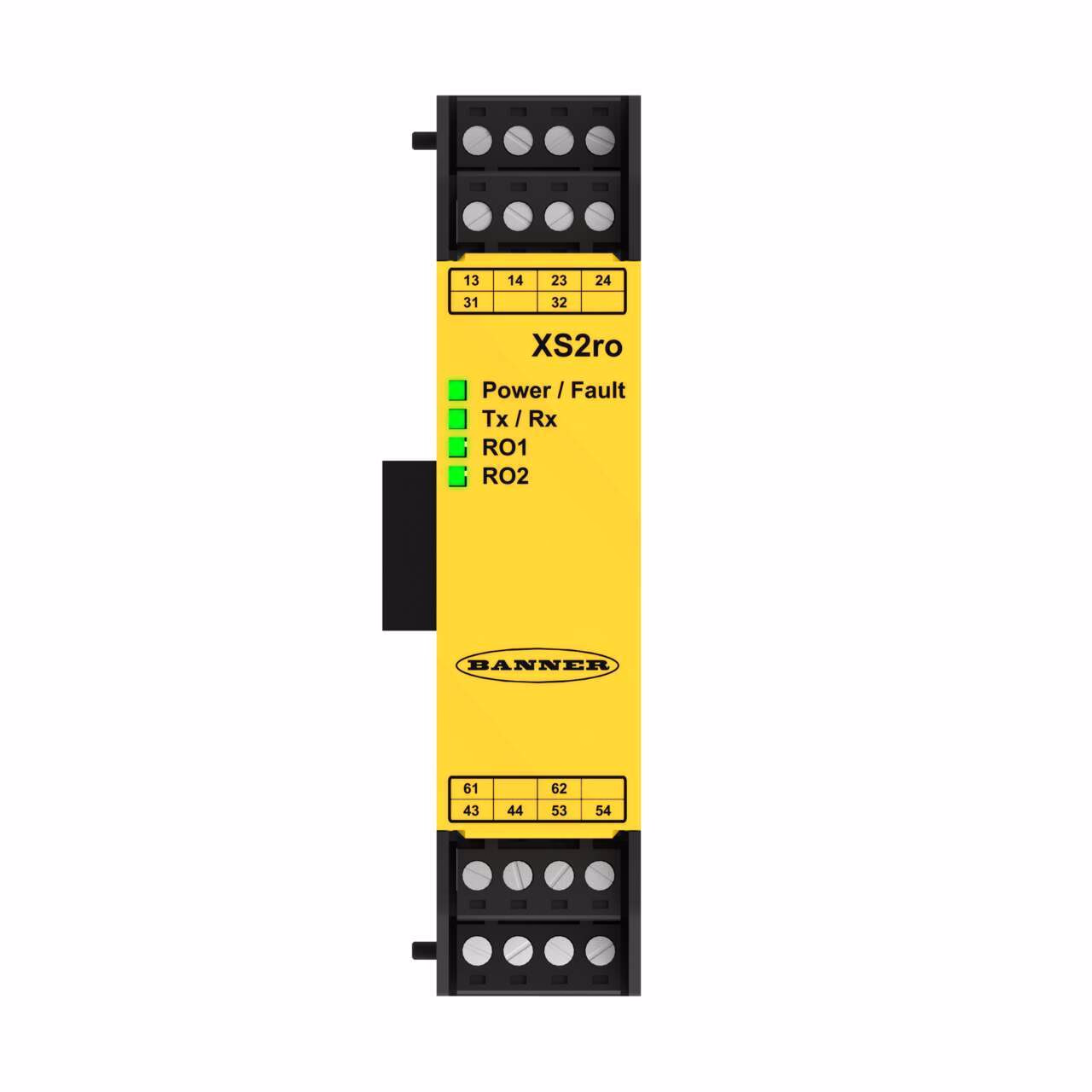

XS26 Expandable Safety Controllers – Banner – XS2RO
Safety Controller Expansion Module: Dual Relay Output Module
Safety Outputs: 4 NO, 6 A; Aux Outputs: 2 NC, 2.5 A
Used with XS26-2 Safety Controllers
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 55.0 |
| Mechanical Life (operations in millions) | 40.0 |
| PCCC | No |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 7.6 x 10-10 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Controller |
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| PL Rating | e |
| PROFINET | No |
| Protection class shaft | IP20 |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Response Time (ms) | See Software Configuration Summary |
| Power Consumption | 0.15 A (outputs on) |
| Safe Output Rating | Relay – 4 NO: 6A; 2 NC: 2.5A |
| Light Curtains/Scanner without EDM Input | No |
| Removable Terminals | Yes |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| Gate Switch (NC/NC) Input | No |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 22.5 x 129 |
| Safety Module Type | Output Module |
| Output Configuration | 2 sets of 2 NO |
| Independently Controlled Safe Outputs | 2.0 |
| Electrical Life (Cycles @ VA) | 50,000 @ full resistive load |
| Non Safe Output Configuration | 2 separate NC |
| Network View and Configure | No |
| EtherCAT | No |
Description
Safety Controller Expansion Module: Dual Relay Output Module
Safety Outputs: 4 NO, 6 A; Aux Outputs: 2 NC, 2.5 A
Used with XS26-2 Safety Controllers
