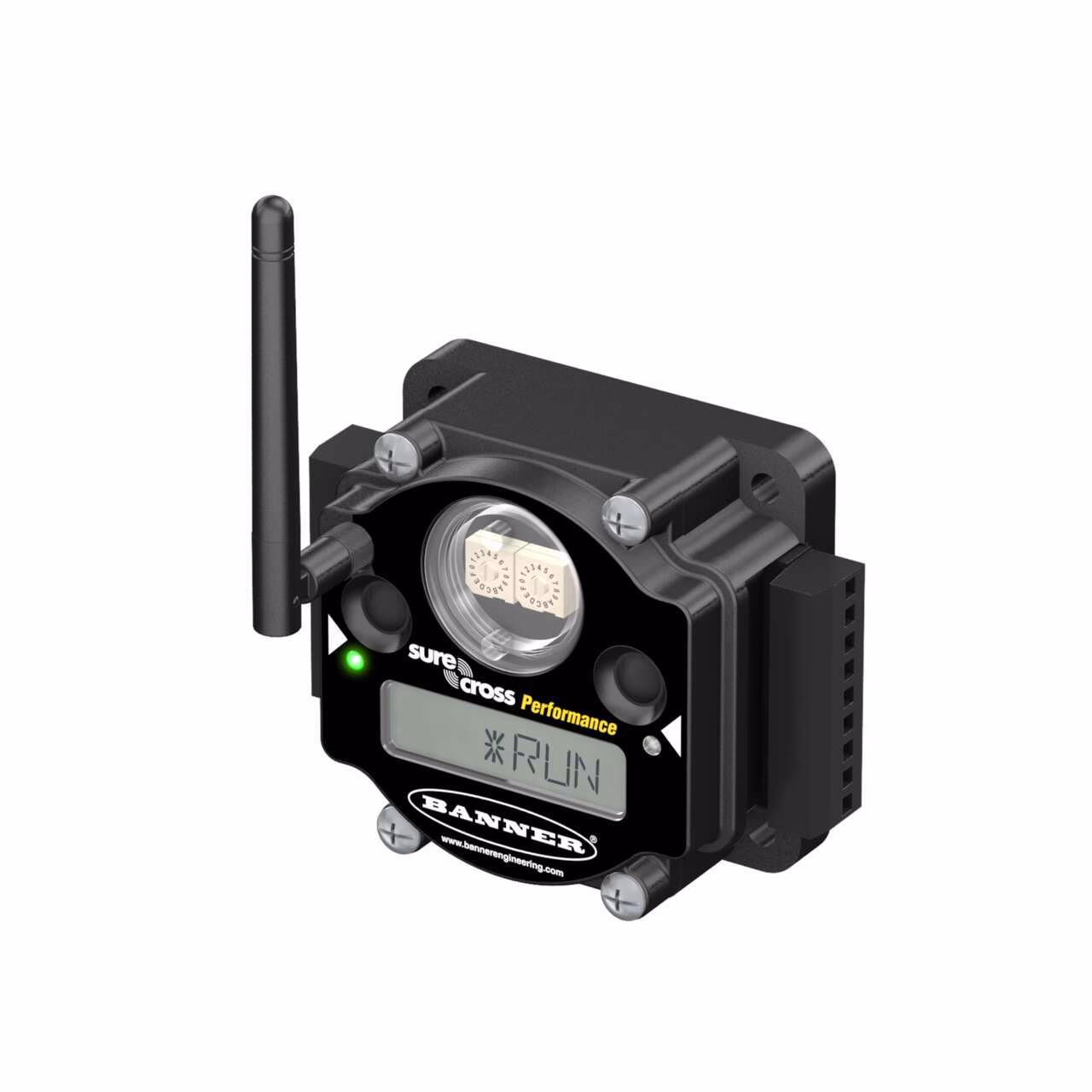

Performance Series Industrial Wireless Gateways and Nodes – Banner – DX80G9M6S-P8C
DX80 Perf 900 MHZ Gateway IP20 C
10-30 V dc; Ext Antenna; RS-485
Up to 12 Disc PNP IO
External Terminals
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| LCD Display | Yes |
| Max Operating Temperature (C) | 85 |
| Max Temp Operating Conditions (C) | 85 |
| Min Operating Temperature (C) | -40 |
| Min Temp Operating Conditions (C) | -40 |
| Output Details | up to 12 sourcing outputs |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | No |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Thailand |
| Connection mode | up to 12 sourcing inputs |
| Device type | Gateway |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Housing Style | External Terminals |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
DX80 Perf 900 MHZ Gateway IP20 C
10-30 V dc; Ext Antenna; RS-485
Up to 12 Disc PNP IO
External Terminals
