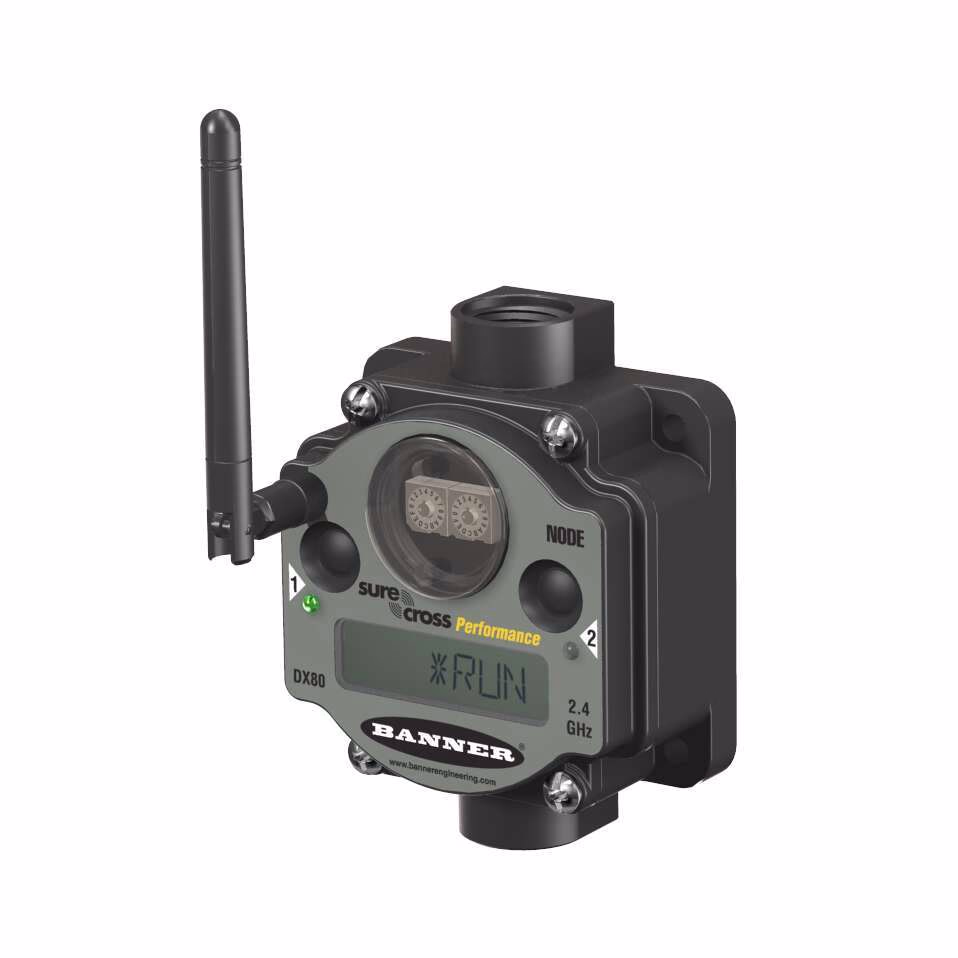

PM Series – Wire Replacement – Banner – DX80N2X6S-PM8
PM Series Node – LCD for Diagnostics
2.4 GHz IP67, NEMA 6
Inputs: Six Sourcing/PNP Discrete
Outputs: Six Sourcing/PNP Discrete
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| LCD Display | Yes |
| Max Operating Temperature (C) | 85.0 |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Operating Temperature (C) | -40.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Output Details | 6 PNP Discrete |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, China, Korea, Taiwan, Thailand, US |
| Connection mode | 6 PNP Discrete |
| Device type | Node |
| EtherNet/IP | No |
| Housing Style | Enclosed Terminals |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
Description
PM Series Node – LCD for Diagnostics
2.4 GHz IP67, NEMA 6
Inputs: Six Sourcing/PNP Discrete
Outputs: Six Sourcing/PNP Discrete
