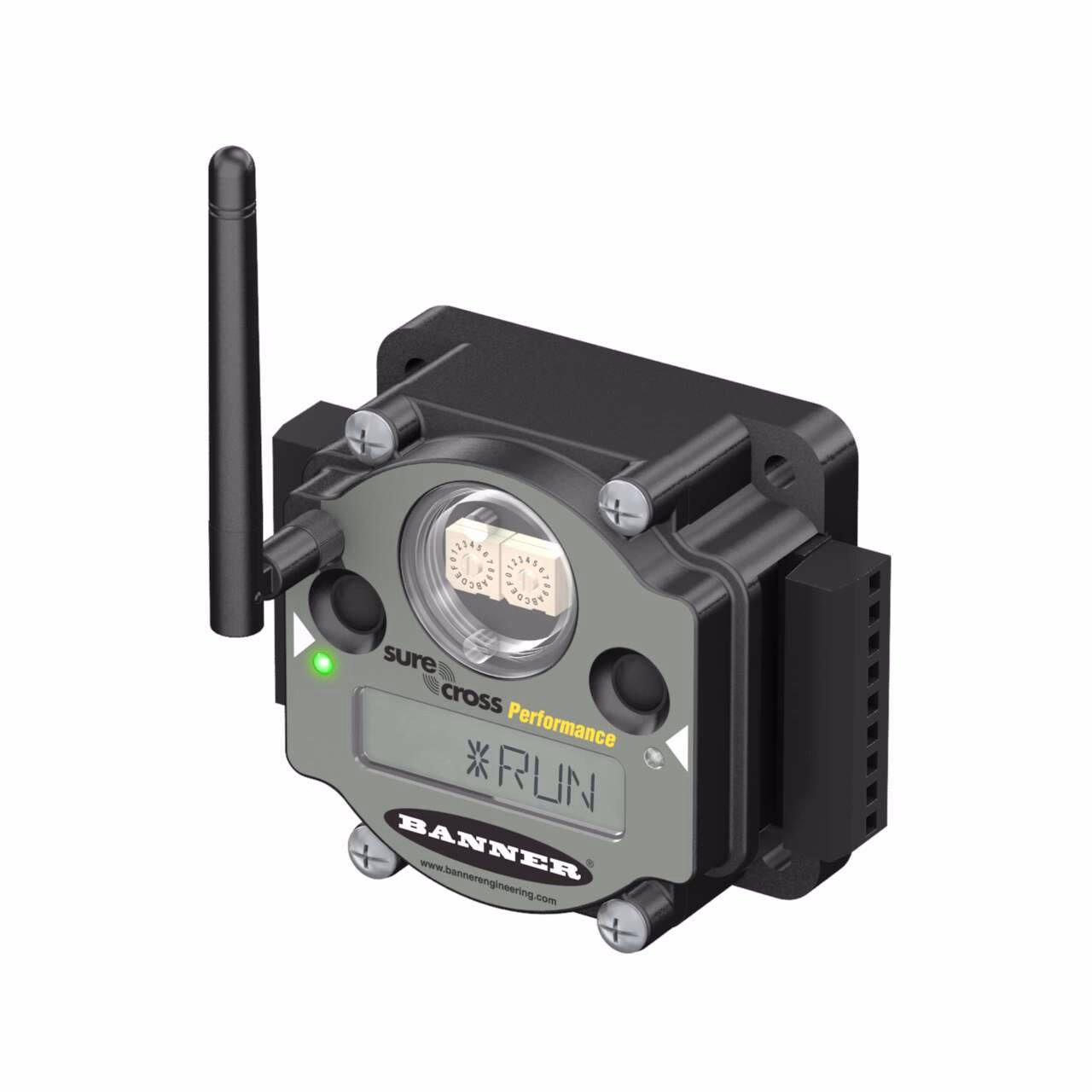

Performance Series Industrial Wireless Gateways and Nodes – Banner – DX80N2X6S-P8C
DX80 Performance 2.4 GHz Node 65 mW IP20
10-30 V dc; External Antenna; RS-485
Up to 12 Discrete PNP IO
External Terminals
| 1-wire Serial Interface | No |
|---|---|
| Discrete Inputs | 12 |
| Discrete Outputs | 12 |
| LCD Display | Yes |
| Max Operating Temperature (C) | 80 |
| Max Temp Operating Conditions (C) | 80 |
| Min Operating Temperature (C) | -20 |
| Min Temp Operating Conditions (C) | -20 |
| Output Details | 12 PNP (not exceeding 12 I/O points) |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | No |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Taiwan, Thailand, US |
| Connection mode | 12 PNP (not exceeding 12 I/O points) |
| Device type | Node |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Housing Style | External Terminals |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
DX80 Performance 2.4 GHz Node 65 mW IP20
10-30 V dc; External Antenna; RS-485
Up to 12 Discrete PNP IO
External Terminals
