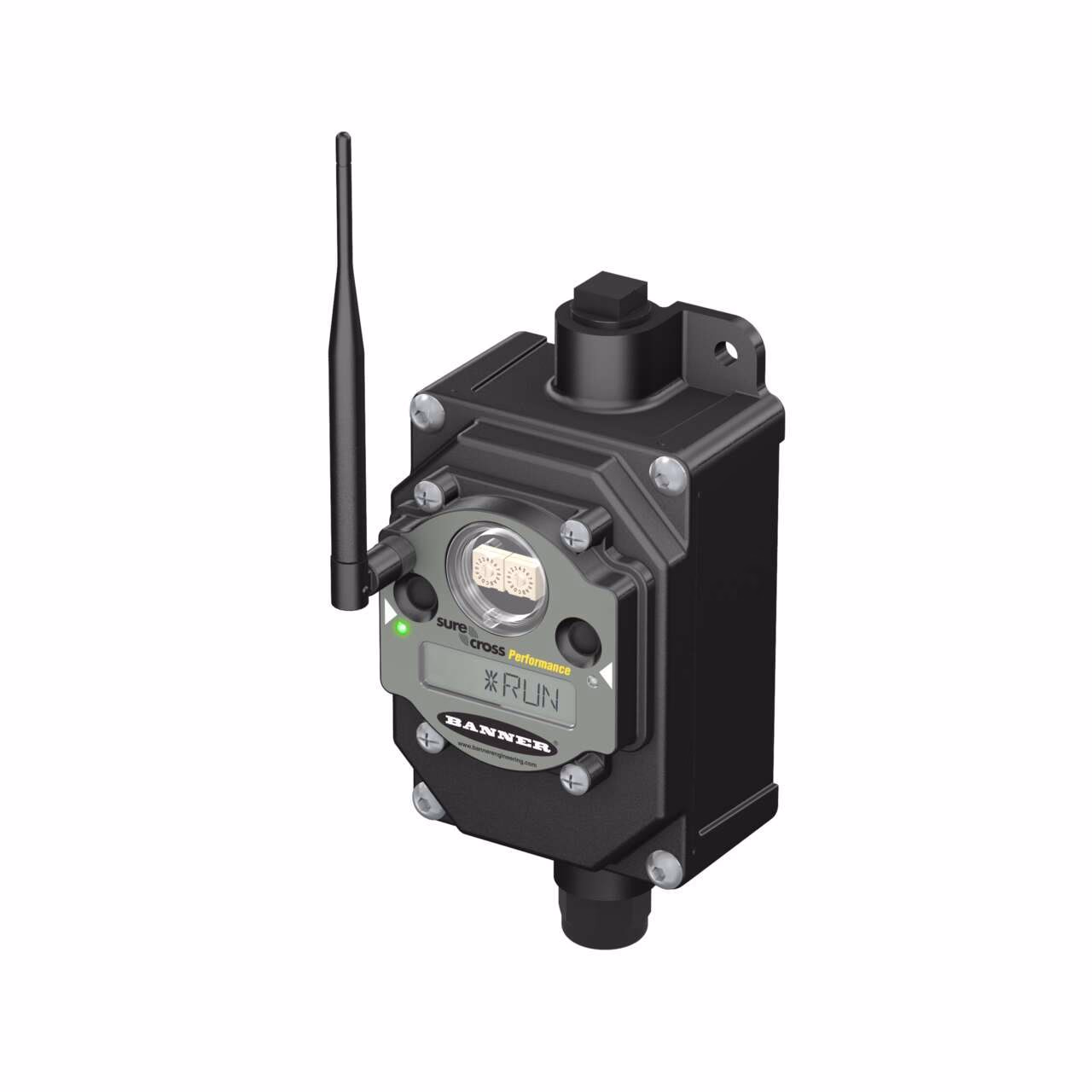

Performance Series Industrial Wireless Gateways and Nodes – Banner – DX80N9X1S-P16E
DX80 Performance 900 MHz Node 1 W
Internal Battery External Antenna
Input: 2 Configurable Discrete 2 Asynchronous Counters
Output: 4 Discrete NMOS
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | Yes |
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 65 |
| Min Temp Operating Conditions (C) | -20 |
| Output Details | 4 NMOS |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | 2 Configurable asynchronous counters |
| Device type | Node |
| EtherNet/IP | No |
| Housing Style | Enclosed Terminals |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 10-30 V dc or D Cell Lithium Battery |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP65 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Object Counting |
Description
DX80 Performance 900 MHz Node 1 W
Internal Battery External Antenna
Input: 2 Configurable Discrete 2 Asynchronous Counters
Output: 4 Discrete NMOS
